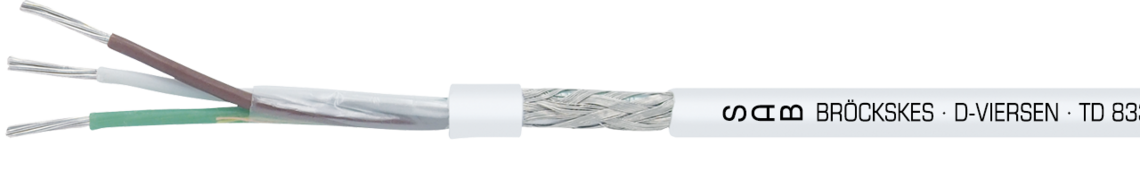

TD 833 CF

FEP data cable with extended temperature range and overall copper screen, +180°C

Marking for TD 833 CF 38330320:
SAB BRÖCKSKES · D-VIERSEN · TD 833 CF AWG 20/3c cULus AWM Style 21618 I/II A/B 150°C 600V FT1 FT2  3833-0320  CE

Marking for TD 833 CF 38330320: SAB BRÖCKSKES · D-VIERSEN · TD 833 CF AWG 20/3c cULus AWM Style 21618 I/II A/B 150°C 600V FT1 FT2 3833-0320 CE

Application

TD 833 CF is a FEP data cable with overall copper screen and extended temperature range + 180 °C. It is recommended for use in high-frequency and broad-band technology, coaxial and microwave technology, high information velocity with exact information transmission at the same time, chemical industry, furnace construction, brick works, and heating applicances.

Outstanding features

  • excellent resistance against chemicals and solvents
  • excellent temperature resistance and flexibility at low temperatures
  • excellent electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics
  • UL/cUL recognized

Construction

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

FEP, 6YI1 acc. to VDE 0207-6

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

FEP, 6YM1 acc. to VDE 0207-6

Sheath colour

white (RAL 1013)

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

FEP, 6YI1 acc. to VDE 0207-6

Colour code

with reference to DIN 47100

Stranding

in layers

Wrapping

PETP foil

Screen

tinned copper braiding

Sheath material

FEP, 6YM1 acc. to VDE 0207-6

Sheath colour

white (RAL 1013)

Technical data

Peak operating voltage

max. 375 V

Voltage: UL/cUL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -90/+180°C

DIN VDE flexible application: -55/+180°C

DIN VDE limited time of use: +200°C

UL/cUL: up to +150 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2

Oil resistance

very good acc. to UL standard 758, at 80 °C after 80 days

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds – FEP has a slightly better resistance than ETFE

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 375 V

Voltage: UL/cUL

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -90/+180°C

DIN VDE flexible application: -55/+180°C

DIN VDE limited time of use: +200°C

UL/cUL: up to +150 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2

Oil resistance

very good acc. to UL standard 758, at 80 °C after 80 days

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds – FEP has a slightly better resistance than ETFE

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension nominal single
wire-ø
Approx. outer-ø Copper figure Cable weight ≈
L383302282 x AWG 28/70,127 mm2,4 mm8,8 kg/km12,3 kg/km Send inquiry
L383302262 x AWG 26/70,160 mm2,7 mm13,0 kg/km16,1 kg/km Send inquiry
L383302242 x AWG 24/70,203 mm3,1 mm14,5 kg/km18,8 kg/km Send inquiry
L383302222 x AWG 22/70,254 mm3,3 mm17,1 kg/km21,9 kg/km Send inquiry
L383302202 x AWG 20/70,320 mm3,7 mm24,6 kg/km29,3 kg/km Send inquiry
L383303283 x AWG 28/70,127 mm2,6 mm9,7 kg/km13,9 kg/km Send inquiry
L383303263 x AWG 26/70,160 mm2,8 mm14,4 kg/km18,2 kg/km Send inquiry
L383303243 x AWG 24/70,203 mm3,1 mm16,6 kg/km21,6 kg/km Send inquiry
L383303223 x AWG 22/70,254 mm3,5 mm20,6 kg/km26,6 kg/km Send inquiry
L383303203 x AWG 20/70,320 mm4,0 mm30,1 kg/km37,5 kg/km Send inquiry
L383304284 x AWG 28/70,127 mm2,8 mm13,8 kg/km17,8 kg/km Send inquiry
L383304264 x AWG 26/70,160 mm3,1 mm15,9 kg/km20,6 kg/km Send inquiry
L383304244 x AWG 24/70,203 mm3,3 mm18,4 kg/km25,0 kg/km Send inquiry
L383304224 x AWG 22/70,254 mm3,8 mm27,4 kg/km33,4 kg/km Send inquiry
L383304204 x AWG 20/70,320 mm4,3 mm35,6 kg/km44,5 kg/km Send inquiry
L383305285 x AWG 28/70,127 mm3,0 mm14,8 kg/km19,9 kg/km Send inquiry
L383305265 x AWG 26/70,160 mm3,5 mm17,4 kg/km24,5 kg/km Send inquiry
L383305245 x AWG 24/70,203 mm3,8 mm24,4 kg/km32,0 kg/km Send inquiry
L383305225 x AWG 22/70,254 mm4,2 mm30,9 kg/km40,5 kg/km Send inquiry
L383305205 x AWG 20/70,320 mm4,8 mm44,9 kg/km54,4 kg/km Send inquiry
L383307287 x AWG 28/70,127 mm3,2 mm16,6 kg/km23,3 kg/km Send inquiry
L383307267 x AWG 26/70,160 mm3,5 mm20,2 kg/km28,1 kg/km Send inquiry
L383307247 x AWG 24/70,203 mm4,0 mm25,2 kg/km36,8 kg/km Send inquiry
L383307227 x AWG 22/70,254 mm4,4 mm37,8 kg/km49,4 kg/km Send inquiry
L383307207 x AWG 20/70,320 mm5,2 mm53,8 kg/km68,4 kg/km Send inquiry
L3833102810 x AWG 28/70,127 mm4,0 mm22,9 kg/km33,0 kg/km Send inquiry
L3833102610 x AWG 26/70,160 mm4,4 mm28,1 kg/km41,9 kg/km Send inquiry
L3833102410 x AWG 24/70,203 mm5,0 mm36,9 kg/km53,4 kg/km Send inquiry
L3833102210 x AWG 22/70,254 mm5,6 mm51,7 kg/km69,4 kg/km Send inquiry
L3833102010 x AWG 20/70,320 mm6,4 mm75,4 kg/km95,1 kg/km Send inquiry
L3833122812 x AWG 28/70,127 mm4,0 mm27,4 kg/km35,9 kg/km Send inquiry
L3833122612 x AWG 26/70,160 mm4,5 mm30,8 kg/km44,2 kg/km Send inquiry
L3833122412 x AWG 24/70,203 mm5,2 mm41,2 kg/km59,9 kg/km Send inquiry
L3833122212 x AWG 22/70,254 mm5,8 mm60,3 kg/km80,2 kg/km Send inquiry
L3833122012 x AWG 20/70,320 mm6,6 mm86,2 kg/km108,3 kg/km Send inquiry
L383306226 x AWG 22/70,254 mm4,6 mm34,5 kg/km47,2 kg/km Send inquiry
L383306206 x AWG 20/70,320 mm5,2 mm48,4 kg/km64,0 kg/km Send inquiry
L383308208 x AWG 20/70,320 mm5,9 mm62,5 kg/km83,9 kg/km Send inquiry
L3833142614 x AWG 26/70,160 mm4,7 mm35,5 kg/km50,0 kg/km Send inquiry
item no.
Dimension
nominal single
wire-ø
Approx. outer-ø
Copper figure
Cable weight ≈
L38330228
2 x AWG 28/7
0,127 mm
2,4 mm
8,8 kg/km
12,3 kg/km
L38330226
2 x AWG 26/7
0,160 mm
2,7 mm
13,0 kg/km
16,1 kg/km
L38330224
2 x AWG 24/7
0,203 mm
3,1 mm
14,5 kg/km
18,8 kg/km
L38330222
2 x AWG 22/7
0,254 mm
3,3 mm
17,1 kg/km
21,9 kg/km
L38330220
2 x AWG 20/7
0,320 mm
3,7 mm
24,6 kg/km
29,3 kg/km
L38330328
3 x AWG 28/7
0,127 mm
2,6 mm
9,7 kg/km
13,9 kg/km
L38330326
3 x AWG 26/7
0,160 mm
2,8 mm
14,4 kg/km
18,2 kg/km
L38330324
3 x AWG 24/7
0,203 mm
3,1 mm
16,6 kg/km
21,6 kg/km
L38330322
3 x AWG 22/7
0,254 mm
3,5 mm
20,6 kg/km
26,6 kg/km
L38330320
3 x AWG 20/7
0,320 mm
4,0 mm
30,1 kg/km
37,5 kg/km
L38330428
4 x AWG 28/7
0,127 mm
2,8 mm
13,8 kg/km
17,8 kg/km
L38330426
4 x AWG 26/7
0,160 mm
3,1 mm
15,9 kg/km
20,6 kg/km
L38330424
4 x AWG 24/7
0,203 mm
3,3 mm
18,4 kg/km
25,0 kg/km
L38330422
4 x AWG 22/7
0,254 mm
3,8 mm
27,4 kg/km
33,4 kg/km
L38330420
4 x AWG 20/7
0,320 mm
4,3 mm
35,6 kg/km
44,5 kg/km
L38330528
5 x AWG 28/7
0,127 mm
3,0 mm
14,8 kg/km
19,9 kg/km
L38330526
5 x AWG 26/7
0,160 mm
3,5 mm
17,4 kg/km
24,5 kg/km
L38330524
5 x AWG 24/7
0,203 mm
3,8 mm
24,4 kg/km
32,0 kg/km
L38330522
5 x AWG 22/7
0,254 mm
4,2 mm
30,9 kg/km
40,5 kg/km
L38330520
5 x AWG 20/7
0,320 mm
4,8 mm
44,9 kg/km
54,4 kg/km
L38330728
7 x AWG 28/7
0,127 mm
3,2 mm
16,6 kg/km
23,3 kg/km
L38330726
7 x AWG 26/7
0,160 mm
3,5 mm
20,2 kg/km
28,1 kg/km
L38330724
7 x AWG 24/7
0,203 mm
4,0 mm
25,2 kg/km
36,8 kg/km
L38330722
7 x AWG 22/7
0,254 mm
4,4 mm
37,8 kg/km
49,4 kg/km
L38330720
7 x AWG 20/7
0,320 mm
5,2 mm
53,8 kg/km
68,4 kg/km
L38331028
10 x AWG 28/7
0,127 mm
4,0 mm
22,9 kg/km
33,0 kg/km
L38331026
10 x AWG 26/7
0,160 mm
4,4 mm
28,1 kg/km
41,9 kg/km
L38331024
10 x AWG 24/7
0,203 mm
5,0 mm
36,9 kg/km
53,4 kg/km
L38331022
10 x AWG 22/7
0,254 mm
5,6 mm
51,7 kg/km
69,4 kg/km
L38331020
10 x AWG 20/7
0,320 mm
6,4 mm
75,4 kg/km
95,1 kg/km
L38331228
12 x AWG 28/7
0,127 mm
4,0 mm
27,4 kg/km
35,9 kg/km
L38331226
12 x AWG 26/7
0,160 mm
4,5 mm
30,8 kg/km
44,2 kg/km
L38331224
12 x AWG 24/7
0,203 mm
5,2 mm
41,2 kg/km
59,9 kg/km
L38331222
12 x AWG 22/7
0,254 mm
5,8 mm
60,3 kg/km
80,2 kg/km
L38331220
12 x AWG 20/7
0,320 mm
6,6 mm
86,2 kg/km
108,3 kg/km
L38330622
6 x AWG 22/7
0,254 mm
4,6 mm
34,5 kg/km
47,2 kg/km
L38330620
6 x AWG 20/7
0,320 mm
5,2 mm
48,4 kg/km
64,0 kg/km
L38330820
8 x AWG 20/7
0,320 mm
5,9 mm
62,5 kg/km
83,9 kg/km
L38331426
14 x AWG 26/7
0,160 mm
4,7 mm
35,5 kg/km
50,0 kg/km

Other dimensions and colours are possible on request.
