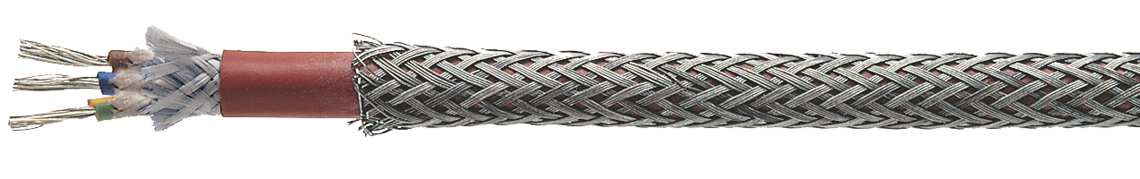

Festoon Cable

Besilen® insulated connection cable with glass fibre braiding, inner sheath and overall copper screen, +180 °C

Application

Temperature-resistant cable for use at furnaces, slag casting plants as well as transport and crane systems.

Outstanding features

  • halogen-free
  • flexible at low temperatures
  • heat resistant
  • good EMC characteristic

Construction

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Wrapping

cores together with mica tape

Braiding

cores together with glass fibre

Stranding

in layers

Braiding

glass fibre

Wrapping

mica tape

Braiding

glass fibre

Inner sheath

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Screen

tinned copper braiding

Conductor

tinned copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour code

coloured acc. to HD 308 (VDE 0293-308),

from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

from 3 cores a green-yellow earth wire

Wrapping

cores together with mica tape

Braiding

cores together with glass fibre

Stranding

in layers

Braiding

glass fibre

Wrapping

mica tape

Braiding

glass fibre

Inner sheath

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Sheath colour

reddish brown (similar RAL 3016)

Screen

tinned copper braiding

Technical data

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000V

Min. bending radius

15 x d

Radiation resistance

2 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 300/500 V

Testing voltage

core/core 2000 V

core/screen 2000V

Min. bending radius

15 x d

Radiation resistance

2 x 10⁷ cJ/kg

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
074790114 x 1,000,21 mm13,2 mm139,5 kg/km254 kg/km Send inquiry
074790175 x 1,000,21 mm14,7 mm159,7 kg/km284 kg/km Send inquiry
074790188 x 1,000,21 mm17,0 mm207,9 kg/km413 kg/km Send inquiry
074790023 x 1,500,26 mm13,0 mm139,2 kg/km243 kg/km Send inquiry
074790124 x 1,500,26 mm14,4 mm163,5 kg/km285 kg/km Send inquiry
074790105 x 1,500,26 mm15,8 mm200,5 kg/km337 kg/km Send inquiry
074790058 x 1,500,26 mm19,6 mm256,0 kg/km545 kg/km Send inquiry
0747900612 x 1,500,26 mm21,8 mm349,7 kg/km651 kg/km Send inquiry
0747900824 x 1,500,26 mm30,0 mm704,9 kg/km1197 kg/km Send inquiry
0747901625 x 1,500,26 mm30,0 mm584,5 kg/km1131 kg/km Send inquiry
074790033 x 2,500,26 mm14,7 mm196,7 kg/km302 kg/km Send inquiry
074790044 x 2,500,26 mm15,8 mm225,8 kg/km365 kg/km Send inquiry
074790155 x 2,500,26 mm17,2 mm251,1 kg/km432 kg/km Send inquiry
074790074 x 4,000,31 mm17,3 mm288,4 kg/km443 kg/km Send inquiry
074790144 x 6,000,31 mm15,1 mm230,4 kg/km367 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
07479011
4 x 1,00
0,21 mm
13,2 mm
139,5 kg/km
254 kg/km
07479017
5 x 1,00
0,21 mm
14,7 mm
159,7 kg/km
284 kg/km
07479018
8 x 1,00
0,21 mm
17,0 mm
207,9 kg/km
413 kg/km
07479002
3 x 1,50
0,26 mm
13,0 mm
139,2 kg/km
243 kg/km
07479012
4 x 1,50
0,26 mm
14,4 mm
163,5 kg/km
285 kg/km
07479010
5 x 1,50
0,26 mm
15,8 mm
200,5 kg/km
337 kg/km
07479005
8 x 1,50
0,26 mm
19,6 mm
256,0 kg/km
545 kg/km
07479006
12 x 1,50
0,26 mm
21,8 mm
349,7 kg/km
651 kg/km
07479008
24 x 1,50
0,26 mm
30,0 mm
704,9 kg/km
1197 kg/km
07479016
25 x 1,50
0,26 mm
30,0 mm
584,5 kg/km
1131 kg/km
07479003
3 x 2,50
0,26 mm
14,7 mm
196,7 kg/km
302 kg/km
07479004
4 x 2,50
0,26 mm
15,8 mm
225,8 kg/km
365 kg/km
07479015
5 x 2,50
0,26 mm
17,2 mm
251,1 kg/km
432 kg/km
07479007
4 x 4,00
0,31 mm
17,3 mm
288,4 kg/km
443 kg/km
07479014
4 x 6,00
0,31 mm
15,1 mm
230,4 kg/km
367 kg/km

Other dimensions and colours are possible on request.
