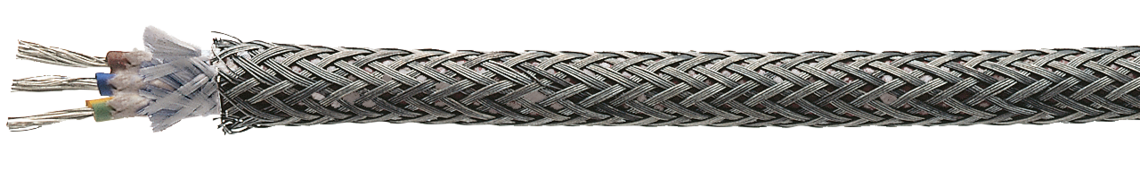

Smeltery Cable
Besilen® insulated connection cable with glass fibre braiding and overall copper screen, +180 °C
Application
Silicone-insulated connection cable with glass fiber braiding and overall copper screen for use in the steel processing industry. This high-temperature resistant cable is used e.g. in smeltery plants and is suitable for temperatures up to +180°C.
Outstanding features
- halogen-free
- flexible at low temperatures
- heat resistant
- good EMC characteristic
Construction
Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
---|---|
Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
Colour code | coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire |
Wrapping | cores together with mica tape |
Braiding | glass fibre |
Stranding | in layers |
Braiding | glass fibre |
Wrapping | mica tape |
Braiding | glass fibre |
Screen | tinned copper braiding |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
coloured acc. to HD 308 (VDE 0293-308),
from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,
from 3 cores a green-yellow earth wire
cores together with mica tape
glass fibre
in layers
glass fibre
mica tape
glass fibre
tinned copper braiding
Technical data
Nominal voltage | Uo/U 300/500 V |
---|---|
Testing voltage | core/core 2000 V core/screen 2000V |
Min. bending radius | 15 x d |
Radiation resistance | 2 x 10⁷ cJ/kg |
Temperature range | fixed laying: -40/+180 °C flexible application: -25/+180 °C |
Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 300/500 V
core/core 2000 V
core/screen 2000V
15 x d
2 x 10⁷ cJ/kg
fixed laying: -40/+180 °C
flexible application: -25/+180 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to RoHS directive of the European Union
Dimensions
item no. |
No. of cores x cross section |
Largest single wire-ø | Outer-ø ± 5% | Copper figure | Cable weight ≈ | |
---|---|---|---|---|---|---|
L00740210 | 2 x 1,00 mm² | 0,21 mm | 9,2 mm | 79,9 kg/km | 109 kg/km | Send inquiry |
L00740310 | 3 x 1,00 mm² | 0,21 mm | 9,7 mm | 103,0 kg/km | 144 kg/km | Send inquiry |
L00740410 | 4 x 1,00 mm² | 0,21 mm | 10,6 mm | 115,1 kg/km | 173 kg/km | Send inquiry |
L00740510 | 5 x 1,00 mm² | 0,21 mm | 11,7 mm | 110,1 kg/km | 210 kg/km | Send inquiry |
L00740710 | 7 x 1,00 mm² | 0,21 mm | 12,7 mm | 162,5 kg/km | 256 kg/km | Send inquiry |
L00740810 | 8 x 1,00 mm² | 0,21 mm | 14,8 mm | 202,1 kg/km | 335 kg/km | Send inquiry |
L00741210 | 12 x 1,00 mm² | 0,21 mm | 16,7 mm | 246,8 kg/km | 393 kg/km | Send inquiry |
L00740315 | 3 x 1,50 mm² | 0,26 mm | 10,8 mm | 120,4 kg/km | 173 kg/km | Send inquiry |
L00740415 | 4 x 1,50 mm² | 0,26 mm | 11,8 mm | 151,8 kg/km | 209 kg/km | Send inquiry |
L00740515 | 5 x 1,50 mm² | 0,26 mm | 13,0 mm | 175,2 kg/km | 262 kg/km | Send inquiry |
L00740815 | 8 x 1,50 mm² | 0,26 mm | 16,6 mm | 246,3 kg/km | 415 kg/km | Send inquiry |
L00741215 | 12 x 1,50 mm² | 0,26 mm | 18,8 mm | 311,5 kg/km | 498 kg/km | Send inquiry |
L00741915 | 19 x 1,50 mm² | 0,26 mm | 22,2 mm | 437,4 kg/km | 709 kg/km | Send inquiry |
L00742415 | 24 x 1,50 mm² | 0,26 mm | 26,2 mm | 540,9 kg/km | 884 kg/km | Send inquiry |
L00740325 | 3 x 2,50 mm² | 0,26 mm | 12,1 mm | 166,2 kg/km | 213 kg/km | Send inquiry |
L00740425 | 4 x 2,50 mm² | 0,26 mm | 13,2 mm | 192,4 kg/km | 266 kg/km | Send inquiry |
L00740525 | 5 x 2,50 mm² | 0,26 mm | 14,6 mm | 230,9 kg/km | 322 kg/km | Send inquiry |
L00740440 | 4 x 4,00 mm² | 0,31 mm | 14,7 mm | 237,1 kg/km | 350 kg/km | Send inquiry |
L00740461 | 4 x 10,00 mm² | 0,41 mm | 19,7 mm | 494,9 kg/km | 687 kg/km | Send inquiry |
L00740462 | 4 x 16,00 mm² | 0,41 mm | 22,7 mm | 800,1 kg/km | 954 kg/km | Send inquiry |
L00740463 | 4 x 25,00 mm² | 0,41 mm | 27,2 mm | 1347,0 kg/km | 1332 kg/km | Send inquiry |
L00740464 | 4 x 35,00 mm² | 0,41 mm | 30,5 mm | 1579,6 kg/km | 1814 kg/km | Send inquiry |
cross section
wire-ø
Other dimensions and colours are possible on request.
