CATLine CAT 6 RT
CAT 6 Gigabit Ethernet cable, suitable for cable tracks and robots with UL recognition, CSA approval
Marking example: SAB BRÖCKSKES · D-VIERSEN · CATLine Cat.6 RT 4x2x26AWG 1687-4630 UL AWM Style 20549 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
Cable track compatible, robot compatible CAT 6 Ethernet cable for use under rough, industrial conditions, e.g. high temperatures, contamination with oils and greases, aggressive chemicals or humidity. The CAT 6 cable is particularly suitable for use in automation.
Outstanding features
- UL recognized, CSA approved
- suitable for cable tracks
- suitable for robots
- halogen-free
- flame retardant and self-extinguishing
- very good oil resistance
- good against aggressive chemicals
- PFAS-free
Additional information

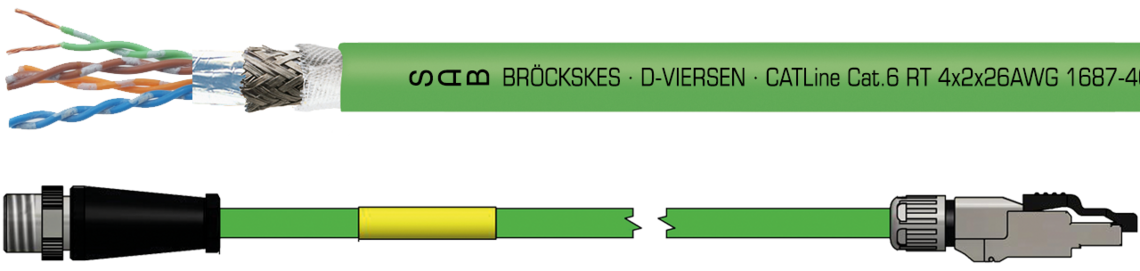

- also possible as harnessed cable with M12 or RJ 45 plug
Construction
| Dimension | 4 x 2 x 26 AWG |
|---|---|
| Conductor | bare copper strands, fine wires |
| Insulation | special polymer |
| Colour code | white-blue/blue, white-orange/orange, white-green/green, white-brown/brown |
| Stranding | cores twisted to pairs, pairs together |
| Wrapping | non-woven tape |
| Screen | alu foil and tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | green (similar RAL 6018) |
4 x 2 x 26 AWG
bare copper strands, fine wires
special polymer
white-blue/blue, white-orange/orange, white-green/green, white-brown/brown
cores twisted to pairs, pairs together
non-woven tape
alu foil and tinned copper braiding
non-woven tape
PUR
green (similar RAL 6018)
Technical data
| Peak operating voltage | max. 90 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 15 x d |
| Torsion angle | up to ± 180°/m |
| Temperature range | UL: up to + 80°C VDE fixed laying: -40°C/+70°C VDE flexible application: -40°C/+70°C +90°C on request |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Flame test | UL Horizontal Flame Test FT2 |
| Oil resistance | |
| Characteristic impedance (100 MHz) | 100Ω ± 10Ω, fulfils the electrical and transmission requirements with high frequency with reference to EN 50288-5-2 / CAT 6 |
| Flexibility | very good |
| UL Style | 20549 |
| Application | suitable for EtherCAT and EtherNET/IP applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 90 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 15 x d
up to ± 180°/m
UL: up to + 80°C
VDE fixed laying: -40°C/+70°C
VDE flexible application: -40°C/+70°C
+90°C on request
acc. to IEC 60754-1 + VDE 0482-754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
UL Horizontal Flame Test FT2
100Ω ± 10Ω, fulfils the electrical and transmission requirements
with high frequency with reference to EN 50288-5-2 / CAT 6
very good
20549
suitable for EtherCAT and EtherNET/IP applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | max. core-ø |
Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L16874630 | 4 x 2 x 26 AWG | 1,05 mm | 7,1 mm | 32 kg/km | 57 kg/km | Send inquiry |
± 10%
Other dimensions and colours are possible on request.
