USB 2.0 FRNC

Halogen-free flexible USB 2.0 cable

Marking for USB 2.0 FRNC 06019001: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 FRNC · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-9001 CE

Marking for USB 2.0 FRNC 06019001: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 FRNC · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-9001 CE

Application

This USB 2.0 cable is halogen free, flame retardant and self-extinguishing. The USB cable with FRNC outer sheath is used wherever high-frequency data transmission is required, e.g. in the automotive industry and automation.

Outstanding features

  • halogen-free
  • flame retardant and self-extinguishing
  • transmission length up to 10 m
  • excellent transmission characteristics

Additional information

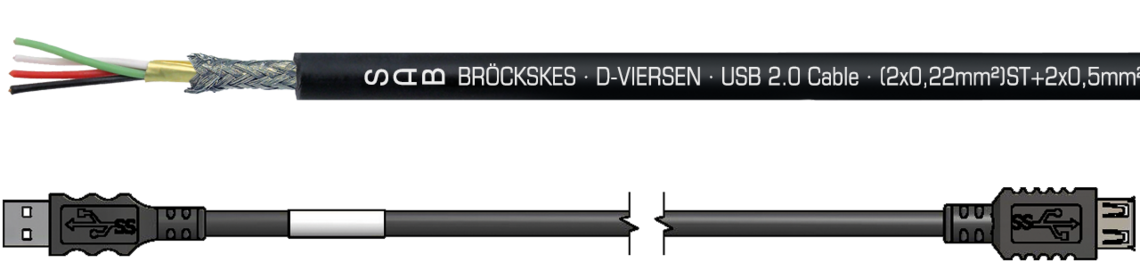

also possible as harnessed cable with USB type A and USB type B plug

Construction

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

black (RAL 9005)

Conductor

bare copper strands (0,50 mm²)

silver-plated strands (0,22 mm²)

Insulation

SABIX®

Colour code

black, red (0,50 mm²), white, green (0,22 mm²)

Stranding

2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²

Wrapping

non-woven tape

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range VDE

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V

Testing voltage

core/core: 1500 V

core/screen: 1200 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range VDE

fixed laying: -40/+90 °C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. Dimension Approx. outer-ø Copper figure Cable weight ≈
L06019001(2x0,22) ST + 2x0,50 mm²6,8 mm34 kg/km62 kg/km Send inquiry
item no.
Dimension
Approx. outer-ø
Copper figure
Cable weight ≈
L06019001
(2x0,22) ST + 2x0,50 mm²
6,8 mm
34 kg/km
62 kg/km

Other dimensions and colours are possible on request.
