USB 2.0 S UL/CSA
USB 2.0 cable with UL recognition, CSA approval, continuously flexible, suitable for cable tracks
Marking for USB 2.0 S UL/CSA with UL 06011122: SAB BRÖCKSKES · D-VIERSEN · USB 2.0 S UL/CSA · (2 x 0,22 mm²) ST + 2 x 0,5 mm² 0601-1122 UL AWM Style 21198 80°C 300V CSA AWM I/II A/B 80°C 300V FT2 CE
Application
The permanently flexible and cable track suitable USB 2.0 cable has UL approval and is shielded with a braid of tinned copper round wires. This USB cable is used wherever high frequency data transmission is required, e.g. in the automotive industry and automation.
Outstanding features
- UL recognized, CSA approved
- suitable for cable tracks
- halogen-free
- very good oil resistance
- transmission length up to 10 m
- excellent transmission characteristics
Additional information

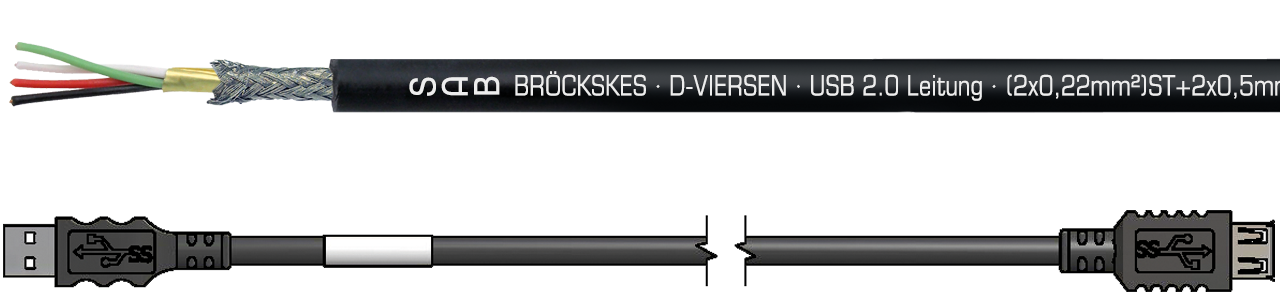

- also possible as harnessed cable with USB type A and USB type B plug
Construction
| Conductor | bare copper strands (0,50 mm²) silver-plated strands (0,22 mm²) |
|---|---|
| Insulation | SABIX® |
| Colour code | black, red (0,50 mm²), white, green (0,22 mm²) |
| Stranding | 2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm² |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (RAL 9005) |
bare copper strands (0,50 mm²)
silver-plated strands (0,22 mm²)
SABIX®
black, red (0,50 mm²), white, green (0,22 mm²)
2 x 0,22 mm² wrapped with alu foil, together with 0,5 mm²
non-woven tape
tinned copper braiding
non-woven tape
PUR
black (RAL 9005)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL/CSA | 300 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 6 x d continuously flexible: 7,5 x d |
| Temperature range | fixed laying: -50/+90 °C flexible application: -40/+90°C UL/CSA: up to + 80°C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Oil resistance | TMPU EN 50363-10-2 + VDE 0207-363-10-2 |
| UL Style | 21198 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
core/core 2000 V
core/screen 2000 V
fixed laying: 5 x d
flexible application: 6 x d
continuously flexible: 7,5 x d
fixed laying: -50/+90 °C
flexible application: -40/+90°C
UL/CSA: up to + 80°C
acc. to IEC 60754-1 + VDE 0482-754-1
TMPU EN 50363-10-2 + VDE 0207-363-10-2
21198
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L06011122 | (2x0,22) ST + 2x0,50 mm² | 7,2 mm | 34,1 kg/km | 66 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
