USB 3.0 M

USB 3.0 cable for the application in medical technology, flexible

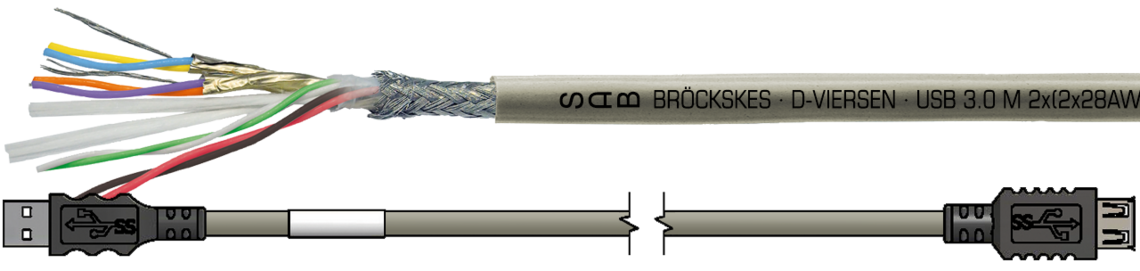

Marking for USB 3.0 M 06061018:
SAB BRÖCKSKES · D-VIERSEN · USB 3.0 M 2x(2x28AWG)ST+2x28AWG+2x26AWG 0606-1018  CE

Marking for USB 3.0 M 06061018: SAB BRÖCKSKES · D-VIERSEN · USB 3.0 M 2x(2x28AWG)ST+2x28AWG+2x26AWG 0606-1018 CE

Application

High flexible USB 3.0 cable especially for the application in medical technology.

Outstanding features

  • biocompatible sheath material
  • biological harmlessness acc. to EN ISO 10993-1, cytotoxicity acc. to EN ISO 10993-5
  • high temperature resistant
  • high notch and tear resistance
  • very good flexibility
  • surface not adhesive
  • transmission length up to 3 m
  • excellent transmission characteristics

Additional information

  • for transmission lengths more than 3 m, please contact us
  • also possible as harnessed cable with USB type A and USB type B plug

Construction

Conductor

28 AWG:

silver-plated copper strands, fine wires

26 AWG: tinned copper strands, fine wires

Insulation

FEP

Colour code

28 AWG:

yellow, blue + orange, violet (USB 3.0),

green, white (USB 2.0),

26 AWG: red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs,

USB 2.0 twisted pairs,

all elements together

Drain Wire

bare copper strands, fine wires

Screen

alu foil

Stranding

all USB 3.0 elements together

Wrapping

foil

Screen

tinned copper braiding

Sheath material

SABmed S

Sheath colour

grey (RAL 7000)

Conductor

28 AWG:

silver-plated copper strands, fine wires

26 AWG: tinned copper strands, fine wires

Insulation

FEP

Colour code

28 AWG:

yellow, blue + orange, violet (USB 3.0),

green, white (USB 2.0),

26 AWG: red, black (power supply)

Stranding

USB 3.0 twisted and screened pairs,

USB 2.0 twisted pairs,

all elements together

Drain Wire

bare copper strands, fine wires

Screen

alu foil

Stranding

all USB 3.0 elements together

Wrapping

foil

Screen

tinned copper braiding

Sheath material

SABmed S

Sheath colour

grey (RAL 7000)

Technical data

Peak operating voltage

max. 50 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Impedance of data pairs

nom. 90Ω

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 50 V

Testing voltage

core/core 600 V

core/screen 600 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+180 °C

flexible application: -25/+180 °C

Impedance of data pairs

nom. 90Ω

Dimensions

item no.

dimension

approx. outer-ø

copper figure

cable weight ca.

060610182 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG5,6 mm25,4 kg/km48 kg/km223140 Send inquiry
item no.
dimension
approx. outer-ø
copper figure
cable weight ca.
06061018
2 x (2 x 28 AWG)ST + 2 x 28 AWG + 2 x 26 AWG
5,6 mm
25,4 kg/km
48 kg/km
223
140

Other dimensions and colours are possible on request.
