USB 3.0 S
USB 3.0 cable with UL recognition, continuously flexible, suitable for cable tracks

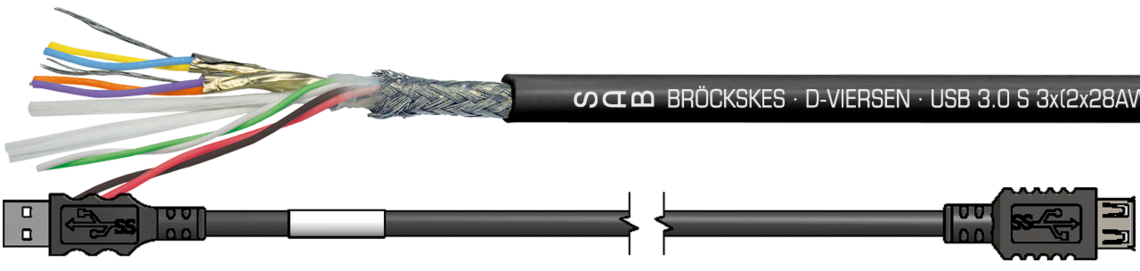

Marking for USB 3.0 S 06042098: SAB BRÖCKSKES · D-VIERSEN · USB 3.0 S 3x(2x28AWG)ST+2x26AWG 0604-2098 UL AWM Style 20549 80°C 300V CE
Application
The permanently flexible USB 3.0 cable is suitable for use in cable tracks. This cable is UL approved and can be used for a temperature range of -50°C / +90°C in the unmoved state and -40°C / +90°C in the moved state (UL: up to + 80°C).
Outstanding features
- UL recognition
- suitable for cable tracks
- flame retardant and self-extinguishing
- very good oil resistance
- transmission length up to 3 m
- excellent transmission characteristics
Additional information
- for transmission lengths more than 3 m, please contact us
- also possible as harnessed cable with USB type A and USB type B plug
Construction
| Conductor | silver-plated strands and tinned copper strands |
|---|---|
| Insulation | special polymer |
| Colour code | yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply) |
| Stranding | twisted pairs and datapairs screened, all elements together |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR |
| Sheath colour | black (similar RAL 9005) |
silver-plated strands and tinned copper strands
special polymer
yellow, blue + orange, violet (USB 3.0), green, white (USB 2.0), red, black (power supply)
twisted pairs and datapairs screened, all elements together
non-woven tape
tinned copper braiding
non-woven tape
PUR
black (similar RAL 9005)
Technical data
| Peak operating voltage | max. 350 V |
|---|---|
| Voltage UL | 300 V |
| Testing voltage | Ader/Ader 2000 V · Ader/Schirm 2000 V |
| Min. bending radius | fixed laying: 5 x d flexible application: 10 x d continuously flexible: 12 x d |
| Temperature range VDE | UL: up to + 80°C fixed laying: -50°C / +90 °C flexible application: -40°C / +90 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 |
| Oil resistance | very good, TMPU acc. to EN 50363-10-2 |
| UL Style | 20549 |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V
300 V
Ader/Ader 2000 V · Ader/Schirm 2000 V
fixed laying: 5 x d
flexible application: 10 x d
continuously flexible: 12 x d
UL: up to + 80°C
fixed laying: -50°C / +90 °C
flexible application: -40°C / +90 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2
very good, TMPU acc. to EN 50363-10-2
20549
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Approx. outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. Ω/km 28 AWG |
Ohmic resistance at 20°C max. Ω/km 26 AWG | |
|---|---|---|---|---|---|---|---|
| L06042098 | 3 x (2 x 28 AWG)ST + 2 x 26 AWG | 6,1 mm | 26,5 kg/km | 45 kg/km | 223 Ω/km | 140 Ω/km | Send inquiry |
at 20°C max. Ω/km
28 AWG
at 20°C max. Ω/km
26 AWG
Other dimensions and colours are possible on request.
