T411

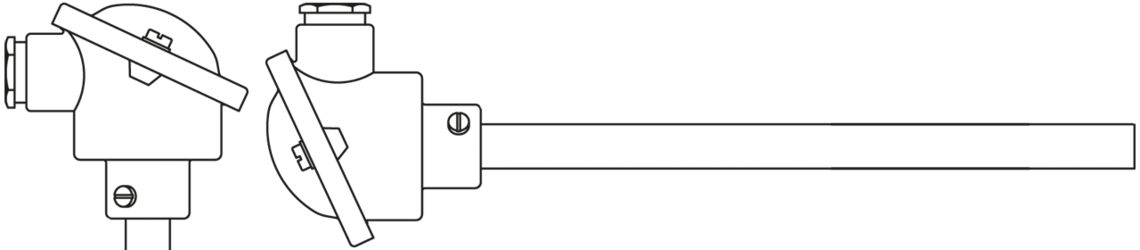

Immersion protecting armatures for gauge slides Ø 8 mm
Immersion protecting armatures for gauge slides Ø 8 mm
Construction
| Protecting tube form A acc. to DIN 43763 | - 1.0305 Ø 15 x 2 mm - 1.4571 Ø 15 x 2 mm, tip 15 x 3 mm - 1.4762 Ø 15 x 2 mm - 1.4841 Ø 15 x 2 mm |
|---|---|
| Gauge slide | - without gauge slide - with gauge slide - acc. to customer’s request |
| Fixing | - without fixing - with screw sockete G3/4 A - with stop flange - with screw socket G1 A - with screw socket G1/2 A - with screwed plug |
| Connection head | - B (KE 021) - DAN-WZ (KE 201) - DAN-Z (KE 063) - DAN-WS (KE 203) - DAN-S (KE 065) - BNK (KK 208) - other connection head - acc. to customer’s request |

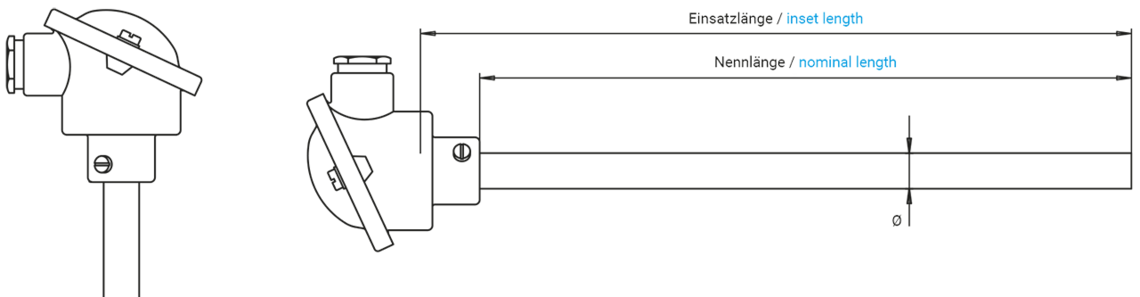

| Nominal length / inset length | - 180/205 mm - 250/275 mm - 355/380 mm - 500/525 mm - 710/735 mm - 1000/1025 mm - 1400/1425 mm - 2000/2025 mm - other length - acc. to customer’s request |
- 1.0305 Ø 15 x 2 mm
- 1.4571 Ø 15 x 2 mm, tip 15 x 3 mm
- 1.4762 Ø 15 x 2 mm
- 1.4841 Ø 15 x 2 mm
- without gauge slide
- with gauge slide - acc. to customer’s request
- without fixing
- with screw sockete G3/4 A
- with stop flange
- with screw socket G1 A
- with screw socket G1/2 A
- with screwed plug
- B (KE 021)
- DAN-WZ (KE 201)
- DAN-Z (KE 063)
- DAN-WS (KE 203)
- DAN-S (KE 065)
- BNK (KK 208)
- other connection head - acc. to customer’s request
- 180/205 mm
- 250/275 mm
- 355/380 mm
- 500/525 mm
- 710/735 mm
- 1000/1025 mm
- 1400/1425 mm
- 2000/2025 mm
- other length - acc. to customer’s request
