T421
Screw-in protecting armatures for gauge slides Ø 6 mm
Application
The screw-in Pt100 sensor with protective tube and connection head is designed for precise and reliable temperature measurement in industrial applications. The sensor can be equipped with a Pt100 or Pt1000 measuring insert and is suitable for measuring inserts Ø 6 mm.
The robust protective tube Form B shields the sensor from mechanical stress, pressure, and aggressive media, ensuring long-term durability and stable measurement results. Various tube materials are available, including 1.3050, 1.4571, and 1.7335, with diameters and wall thicknesses tailored to your application.
The sensor is available with or without a screw-in thread (G1/2 A, G3/4 A, G1 A, or custom threads) and can be fitted with a wide range of connection heads, making integration into your system straightforward. Installation, neck tube, and insertion lengths are configurable to meet individual process requirements.
Optional versions include measuring inserts and custom lengths or connection heads, allowing the sensor to be adapted to almost any industrial application.
Outstanding features
- Screw-in Pt100 sensor with protective tube and connection head for industrial processes
- Suitable for Pt100 and Pt1000 inserts Ø 6 mm
- Robust protective tube Form B for high mechanical stability and fast response
- Multiple tube materials available: 1.3050, 1.4571, 1.7335
- Flexible installation with configurable screw-in threads: G1/2 A, G3/4 A, G1 A, or custom threads
- Wide selection of connection heads for easy integration
- Adjustable installation, neck tube, and insertion lengths
- Custom versions and special designs available on request
Construction
| Protecting tube Form B | - 1.3050 Ø 11 x 2 mm - 1.4571 Ø 9 x 1 mm - 1.4571 Ø 11 x 2 mm - 1.7335 Ø 11 x 2 mm |
|---|---|
| Gauge slide | - without gauge slide - with gauge slide - acc. to customer’s request |
| Screwed thread | - without - G1/2 A - G3/4 A - G 1 A - other thread - acc. to customer’s request |
| Connection head | - B (KE 122) - DAN-WZ (KE 202) - DAN-Z (KE 064) - DAN-WS (KE 204) - DAN-S (KE 066) - BNK (KK 029) - without connection head - other connection head - acc. to customer’s request |

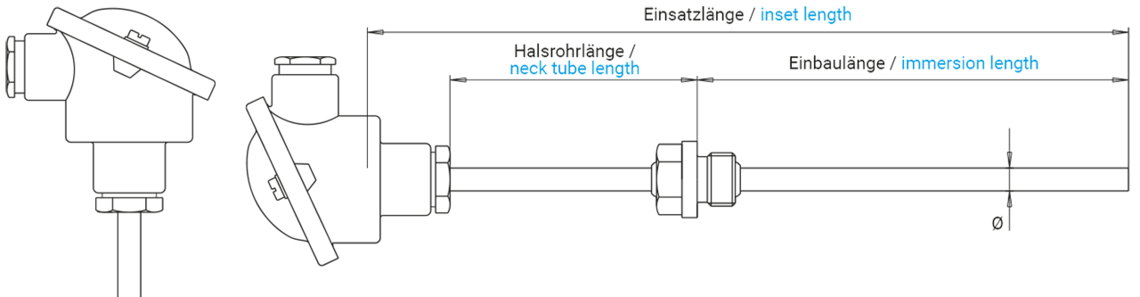

| Nominal length / inset length | - 100/120/255 mm - 160/120/315 mm - 250/120/405 mm - 400/120/555 mm - 500/120/655 mm - 580/120/735 mm - 670/120/825 mm - 870/120/1025 mm - other length - acc. to customer’s request |
- 1.3050 Ø 11 x 2 mm
- 1.4571 Ø 9 x 1 mm
- 1.4571 Ø 11 x 2 mm
- 1.7335 Ø 11 x 2 mm
- without gauge slide
- with gauge slide - acc. to customer’s request
- without
- G1/2 A
- G3/4 A
- G 1 A
- other thread - acc. to customer’s request
- B (KE 122)
- DAN-WZ (KE 202)
- DAN-Z (KE 064)
- DAN-WS (KE 204)
- DAN-S (KE 066)
- BNK (KK 029)
- without connection head
- other connection head - acc. to customer’s request
- 100/120/255 mm
- 160/120/315 mm
- 250/120/405 mm
- 400/120/555 mm
- 500/120/655 mm
- 580/120/735 mm
- 670/120/825 mm
- 870/120/1025 mm
- other length - acc. to customer’s request
