T433
Screw-in protecting armatures for measuring insert pt100 Ø 3 mm
Application
The screw-in temperature sensor with protective tube for Pt100 measuring inserts Ø 3 mm is designed for precise and reliable temperature measurement in industrial applications. The G 1/2 A screw-in thread is especially common, making it easy to integrate into existing process connections and measurement points.
The robust screw-in protective fitting with protective tube Form BS and tapered tip reliably protects the measuring insert from mechanical stress, pressure, and aggressive media. The stainless steel 1.4571 tube offers high corrosion resistance along with excellent heat transfer and fast response times.
The sensor can be configured with or without a measuring insert and is available with Pt100 or Pt1000. In addition to the widely used G 1/2 A thread, other screw-in threads such as G 3/4 A, G 1 A, or M20×1.5 are available, along with various connection heads and installation, neck tube, and insertion lengths. This allows the screw-in temperature sensor with protective tube to be tailored to individual process requirements.
Outstanding features
- Screw-in temperature sensor with protective tube for industrial applications
- Commonly used G 1/2 A screw-in thread for standardized measurement points
- Protective tube Form BS with tapered tip for fast response times
- Stainless steel 1.4571 for high temperature and corrosion resistance
- Suitable for Pt100 and Pt1000 measuring inserts Ø 3 mm
- Wide selection of connection heads
- Flexible installation, neck tube, and insertion lengths
- Custom threads and special designs available

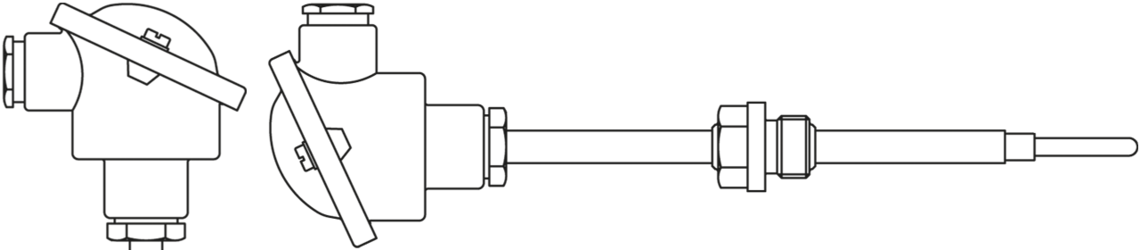

Construction

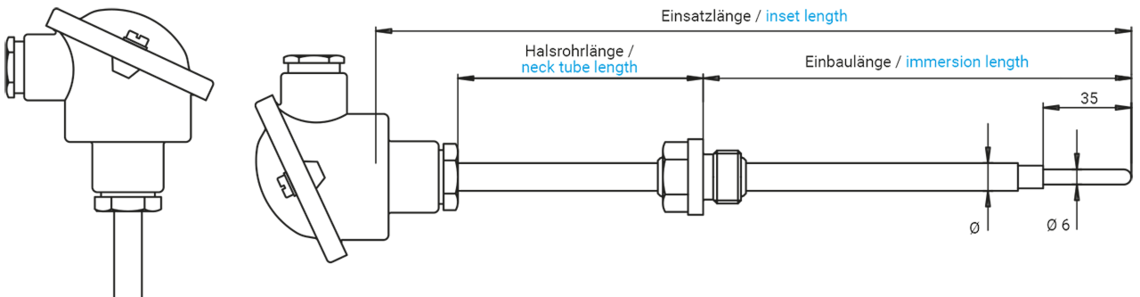

| Protecting tube form BS with tapered measuring tip | 1.4571 Ø 11 x 2 mm |
|---|---|
| Gauge slide | - without gauge slide - with gauge slide - acc. to customer’s request |
| Screwed thread | - G 1/2 A - G 3/4 A - G 1 A - M 20 x 1,5 - without - other thread - acc. to customer’s request |
| Connection head | - B (KE 122) - DAN-WZ (KE 202) - DAN-Z (KE 064) - DAN-WS (KE 204) - DAN-S (KE 066) - BNK (KK 029) - without connection head - other connection head - acc. to customer’s request |
| Immersion / neck tube / inset length | - 100/120/255 mm - 160/120/315 mm - 250/120/405 mm - 400/120/555 mm - 500/120/655 mm - 580/120/735 mm - 670/120/825 mm - 870/120/1025 mm - other length - acc. to customer’s request |
1.4571 Ø 11 x 2 mm
- without gauge slide
- with gauge slide - acc. to customer’s request
- G 1/2 A
- G 3/4 A
- G 1 A
- M 20 x 1,5
- without
- other thread - acc. to customer’s request
- B (KE 122)
- DAN-WZ (KE 202)
- DAN-Z (KE 064)
- DAN-WS (KE 204)
- DAN-S (KE 066)
- BNK (KK 029)
- without connection head
- other connection head - acc. to customer’s request
- 100/120/255 mm
- 160/120/315 mm
- 250/120/405 mm
- 400/120/555 mm
- 500/120/655 mm
- 580/120/735 mm
- 670/120/825 mm
- 870/120/1025 mm
- other length - acc. to customer’s request
