SABIX® R flex Data IQ DVI Dual-Link
Digital Signal- and Data Cable

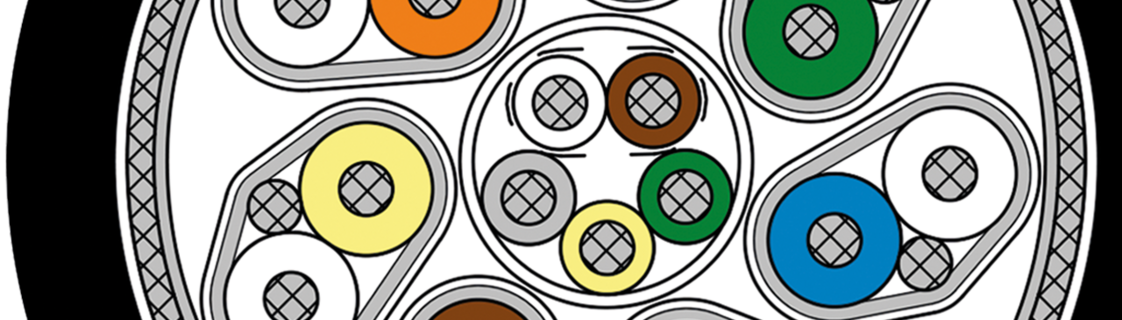

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® R flex Data IQ 7x(2x28AWG)ST+5x28AWG DVI Dual-Link L6650-0001 UL AWM Style 21080 75°C 300V CE
Application
SABIX® R flex Data IQ DVI Dual-Link Data cable for rail vehicles in accordance with EN 45545-2
The SABIX® R flex Data IQ DVI Dual-Link is a digital signal and data cable specially developed for railway technology for high-resolution video transmission in rail vehicles. It was designed for applications with high data rates such as passenger information systems, display solutions in trains, video surveillance, or infotainment systems and enables stable transmission of differential high-speed signals.
The cable meets the fire protection requirements R15 (EL1A) and R16 (EL1B) according to EN 45545-2 for hazard levels HL1 and HL2, making it suitable for numerous applications inside and outside rail vehicles. A defined characteristic impedance of 100 Ω ± 10%, effective overall shielding made of aluminum foil and tinned copper braid, and halogen-free SABIX® material technology ensure reliable signal transmission even under demanding electromagnetic and mechanical operating conditions.
Outstanding features
- halogen-free
- no flame propagation
- flame retardant and self-extinguishing
- flame retardant acc. to UN/ECE R118
- fulfils fire protection requirements R15 (EL1A) and R16 (EL1B) acc. to EN 45545-2 for hazard levels HL1-2
- low smoke emission
- toxicity tested
- low corrosion
- oil and fuel resistant
- flexible for tight installation spaces
- resistant to mechanical stress
- excellent transmission characteristics
- PFAS-free
Construction
| Dimension | 7 x (2 x 28 AWG)ST + 5 x 28 AWG |
|---|---|
| Conductor | tinned copper strands, fine wires |
| Insulation | Special SABIX® |
| Colour code | acc. to drawing |
| Stranding | acc. to drawing |
| Screen | Alu-foil and tinned copper braiding |
| Sheath material | Special SABIX® |
| Sheath colour | black (similar RAL 9005) |
7 x (2 x 28 AWG)ST + 5 x 28 AWG
tinned copper strands, fine wires
Special SABIX®
acc. to drawing
acc. to drawing
Alu-foil and tinned copper braiding
Special SABIX®
black (similar RAL 9005)
Technical Data
| Item number | 6650-0001 |
|---|---|
| Peak operating voltage | max. 90 V |
| Voltage UL | 300 V |
| Testing Voltage | core/core: 2000 V core/screen: 2000 V |
| Min. bending radius | fixed laying: 4 x d flexible application: 12 x d |
| Temperature range | UL: up to +75 °C fixed laying: -50/+90 °C flexible application: -40/+90 °C |
| Halogen-free | acc. to EN 50306-1 + EN 50264-1. Development of HCl is ≤ 0,5% acc. to IEC 60754-1. pH-value is ≥ 4,3 acc. to IEC 60754-2. Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2. Fluoric content ≤ 0,1% acc. to IEC 60684-2 |
| Fire performance | no flame propagation acc. to IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2. Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2. Flame retardant acc. to ISO 6722 (UN/ECE R118) |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Toxicity | acc. to EN 50305 + VDE 0260-305 |
| Oil- and fuel resistance | acc. to EN 50264-1 + VDE 0260-264-1 |
| Characteristic impedance | 100Ω ± 10Ω |
| Flexibility | good |
| Weather resistance | good |
| Application | appropriate for DVI Dual-Link applications |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
6650-0001
max. 90 V
300 V
core/core: 2000 V
core/screen: 2000 V
fixed laying: 4 x d
flexible application: 12 x d
UL: up to +75 °C
fixed laying: -50/+90 °C
flexible application: -40/+90 °C
acc. to EN 50306-1 + EN 50264-1. Development of HCl is ≤ 0,5% acc. to IEC 60754-1.
pH-value is ≥ 4,3 acc. to IEC 60754-2. Conductivity is ≤ 10,0 µS/mm acc. to IEC 60754-2.
Fluoric content ≤ 0,1% acc. to IEC 60684-2
no flame propagation acc. to IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.
Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2.
Flame retardant acc. to ISO 6722 (UN/ECE R118)
acc. to IEC 61034 + VDE 0482-1034
acc. to EN 50305 + VDE 0260-305
acc. to EN 50264-1 + VDE 0260-264-1
100Ω ± 10Ω
good
good
appropriate for DVI Dual-Link applications
acc. to RoHS directive of the European Union
Dimensions
| item no. | Dimension | Outer-ø | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|
| L66500001 | 7 x (2 x 28 AWG)ST + 5 x 28 AWG | ca. 8,6 mm / max. 8,9 mm | 49,7 kg/km | 98 kg/km | Send inquiry |
Other dimensions and colours are possible on request.
