RTD 503

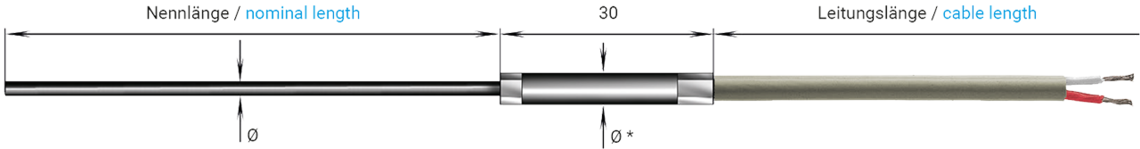

Mineral insulated resistance thermometer with PVC connection cable LiYY

Mineral insulated resistance thermometer with PVC connection cable LiYY

Mineral insulated resistance thermometer with PVC connection cable LiYY

Application

Mineral-insulated resistance thermometer with PVC data cable LiYY, RTD: 1 x Pt 100 class B, 2 x Pt 100 class B, 1 x Pt 100 class A, 2 x Pt 100 class A, circuit of the inner wires: 2-wire circuit, 3-wire circuit, 4-wire circuit.

Additional information

Sheath-Ø: 1,5 mm on request!

Construction

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other heath diameter - acc. to customer’s request

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends - acc. to customer’s request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths - acc. to customer’s request

Measuring range

▪ -50 up to +400°C with kink protection

▪ -50 up to +600°C with kink protection

▪ -50 up to +400°C without kink protection

▪ -50 up to +600°C without kink protection

Nominal length

According to customer requests. Please specify in mm.

Connection cable

PVC data cable LiYY

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 1,5 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other heath diameter - acc. to customer’s request

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends - acc. to customer’s request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths - acc. to customer’s request

Measuring range

▪ -50 up to +400°C with kink protection

▪ -50 up to +600°C with kink protection

▪ -50 up to +400°C without kink protection

▪ -50 up to +600°C without kink protection

Nominal length

According to customer requests. Please specify in mm.

Connection cable

PVC data cable LiYY
