RTD 604

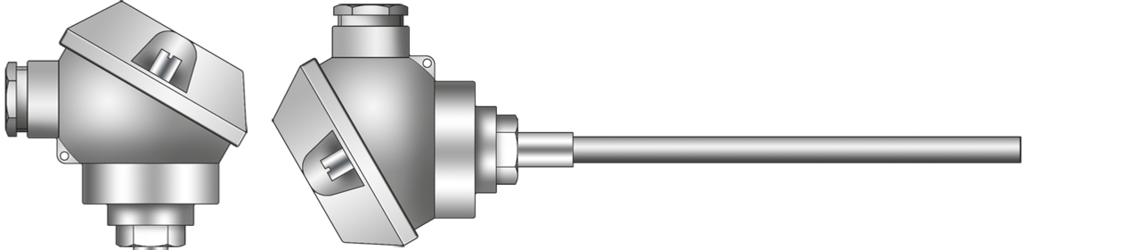

Mineral insulated resistance thermometer with connection head

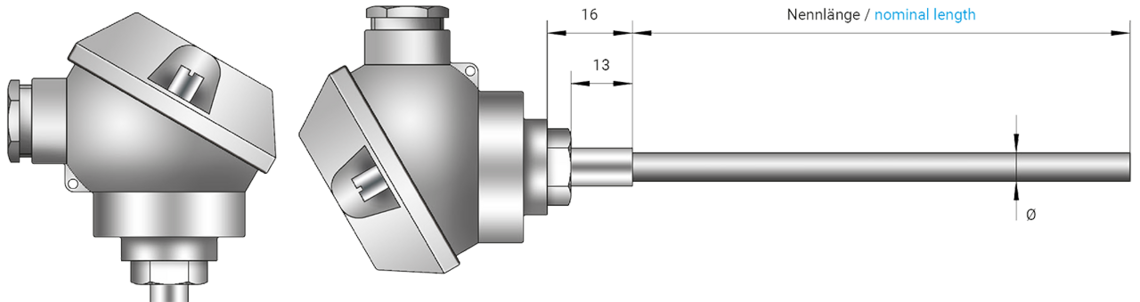

Mineral insulated resistance thermometer with connection head

Mineral insulated resistance thermometer with connection head

Application

As a manufacturer of temperature sensors we offer you a wide range of possible combinations when choosing a temperature sensor for your temperature monitoring. In addition to the temperature sensor Pt100 we can offer other sensors on customer request. Contact us and let our temperature measurement experts advise you.

Construction

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other sheath diameter - acc. to customer’s request

Connection head

- form MA

- form S

- form L

- other connection heads - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Measuring range

▪ -50 up to +400°C

▪ -50 up to +600°C

- other measuring range - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other sheath diameter - acc. to customer’s request

Connection head

- form MA

- form S

- form L

- other connection heads - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Measuring range

▪ -50 up to +400°C

▪ -50 up to +600°C

- other measuring range - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.
