RTD 605

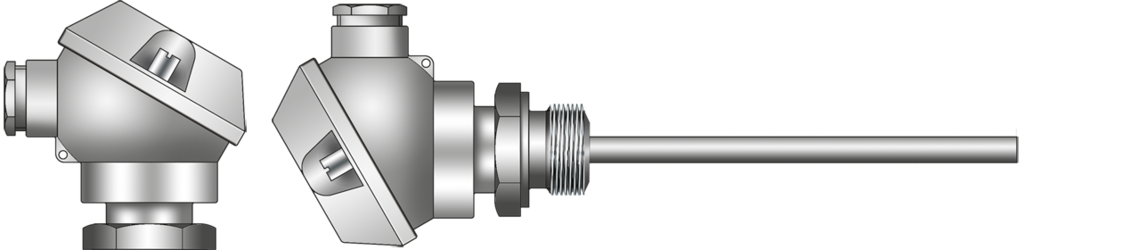

Mineral insulated resistance thermometer with connection head and thread

Mineral insulated resistance thermometer with connection head and thread

Mineral insulated resistance thermometer with connection head and thread

Application

This RTD Pt100 leads itself to many different uses on account of its small diameter and short response time. Due to its high measuring accuracy, the resistance thermometer is suitable for applications, where only small temperature tolerances are allowed. The RTD Pt100 is applied in various industries, for instance, automotive, hot-runner, or plastics processing industry.

Construction

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other sheath diameter - acc. to customer’s request

Connection head

- form MA / G 1/2 A          - form B / G 1/2 A

- form MA / G 3/8 A          - form B / G 3/8 A

- form MA / G 1/4 A          - form B / G 1/4 A

- form DAN-S / G 1/2 A

- other connection heads - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Measuring range

▪ -50 up to +400°C

▪ -50 up to +600°C

- other measuring range - acc. to customer’s request

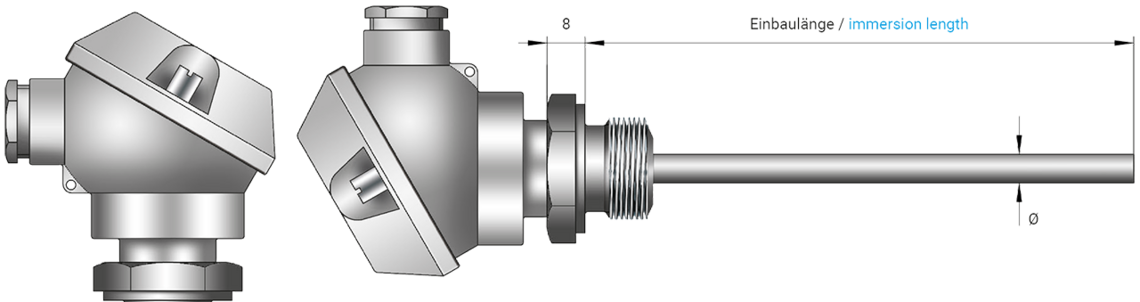

Immersion length

According to customer requests. Please specify in mm.

RTD

- 1 x Pt 100 class A

- 2 x Pt 100 class A

- 1 x Pt 100 class B

- 2 x Pt 100 class B

Circuit of inner wires

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Sheath diameter

- 3,0 mm

- 4,5 mm

- 6,0 mm

- other sheath diameter - acc. to customer’s request

Connection head

- form MA / G 1/2 A          - form B / G 1/2 A

- form MA / G 3/8 A          - form B / G 3/8 A

- form MA / G 1/4 A          - form B / G 1/4 A

- form DAN-S / G 1/2 A

- other connection heads - acc. to customer’s request

Accessories (fix)

- without

- with accessories - acc. to customer’s request

Measuring range

▪ -50 up to +400°C

▪ -50 up to +600°C

- other measuring range - acc. to customer’s request

Immersion length

According to customer requests. Please specify in mm.
