R 107 translucent
Highly flexible Besilen® insulated HV single core with translucent outer sheath

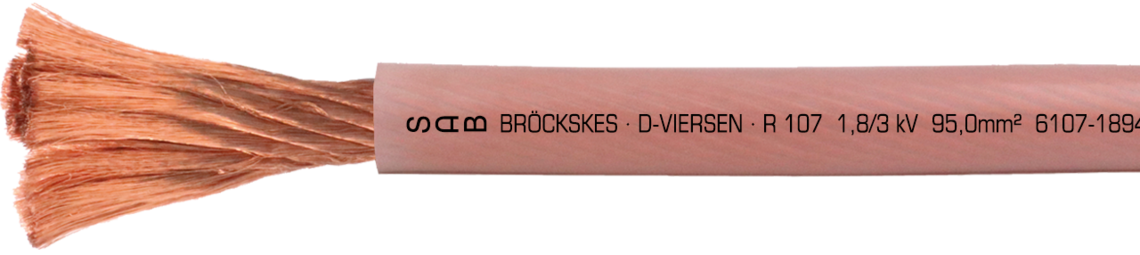

Marking example: SAB BRÖCKSKES · D-VIERSEN · R 107 · 1,8/3 kV 95,0mm² 6107-1894
Application
R 107 translucent - Highly Flexible High-Voltage Single Conductor with Translucent Outer Sheath
The R 107 translucent is a highly flexible, halogen-free high-voltage single conductor with Besilen® insulation and a translucent outer sheath for use as a power or earthing cable in electrically operated rail vehicles. Designed for 1.8/3.0 kV, the cable meets the requirements of EN 45545-2 for railway applications. Thanks to its temperature-resistant silicone insulation, the R 107 translucent can withstand temperatures of up to +250 °C for short periods.
The super-fine-stranded copper conductor provides excellent flexibility. This makes the R 107 translucent suitable for applications exposed to increased vibration and changing mechanical loads. Typical applications include earthing connections in coupling transitions or on bogies, as well as reliable power supply in third-rail current collectors and pantographs.
The translucent outer sheath allows the condition of the conductor to be visually monitored and provides an additional advantage in applications where conductor inspection is important. The combination of high flexibility, a wide temperature range and railway-specific fire safety requirements makes the R 107 translucent a suitable solution for demanding power and earthing connections in railway technology.
Outstanding features
- extremely flexible
- fulfils fire protection requirements acc. to EN 45545-2 /
from 1,50 - 10,00 mm²: R15 (EL1A) HL 1 / R16 (EL1B) HL 1-2
from 16,00 mm²: R15 (EL1A) HL 1-2 / R16 (EL1B) HL 1-3 - halogen-free
- Ozone resistant acc. to DIN EN 50382-2
- heat resistant
- flexible at low temperatures
- flame retardant and self-extinguishing
- good ozone, UV and weather resistance
- PFAS-free
Additional information
On request with tinned copper strands!
Construction
| Conductor | bare copper strands, extremely fine wires |
|---|---|
| Insulation | Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1 |
| Colour | translucent |
bare copper strands, extremely fine wires
Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1
translucent
Technical data
| Noominal voltage | Uo/U 1,8/3,0 kV |
|---|---|
| Testing voltage | 6500 V |
| Current-carrying capacity | acc. to VDE 0298-4 |
| Min. bending radius | 5 x d |
| Temperature range | fixed laying: -50/+180 °C flexible application: 25/+180 °C short-time use: -25/+250 °C |
| Halogen-free | acc. to EN 50306-1 + EN 50264-1 are fulfilled. Development of HCl is < 0,5% acc. to IEC 60754-1. pH-value is > 4,3 IEC 60754-2. Conductivity is < 10,0 µS/mm acc. to IEC 60754-2. Fluoric content < 0,1% acc. to IEC 60684-2. |
| Flame propagation | no flame propagation |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 |
| Toxicity | acc. to EN 50305 + VDE 0260-305 |
| Smoke density | acc. to IEC 61034 + VDE 0482-1034 |
| Weather resistance | very good |
| Ozone resistance | acc. to EN 50382-2 + VDE 0260-382-2 |
| Oil resistance | good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
Uo/U 1,8/3,0 kV
6500 V
acc. to VDE 0298-4
5 x d
fixed laying: -50/+180 °C
flexible application: 25/+180 °C
short-time use: -25/+250 °C
acc. to EN 50306-1 + EN 50264-1 are fulfilled.
Development of HCl is < 0,5%
acc. to IEC 60754-1.
pH-value is > 4,3 IEC 60754-2.
Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.
Fluoric content < 0,1% acc. to IEC 60684-2.
no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2
acc. to EN 50305 + VDE 0260-305
acc. to IEC 61034 + VDE 0482-1034
very good
acc. to EN 50382-2 + VDE 0260-382-2
good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
Nominal cross section |
Largest single wire-ø | Copper figure | Cable weight ≈ |
Outer-ø ± 10% | |
|---|---|---|---|---|---|---|
| L61071891 | 35 mm² | 0,1 mm | 336 kg/km | 435 kg/km | 13,8 mm | Send inquiry |
| L61071892 | 50 mm² | 0,1 mm | 480 kg/km | 591 kg/km | 15,7 mm | Send inquiry |
| L61071893 | 70 mm² | 0,1 mm | 672 kg/km | 788 kg/km | 17,7 mm | Send inquiry |
| L61071894 | 95 mm² | 0,1 mm | 912 kg/km | 1041 kg/km | 19,2 mm | Send inquiry |
| L61071895 | 120 mm² | 0,1 mm | 1152 kg/km | 1281 kg/km | 20,9 mm | Send inquiry |
| L61071896 | 150 mm² | 0,1 mm | 1440 kg/km | 1588 kg/km | 24,1 mm | Send inquiry |
| L61071897 | 185 mm² | 0,15 mm | 1776 kg/km | 1911 kg/km | 25,3 mm | Send inquiry |
| L61071898 | 240 mm² | 0,15 mm | 2304 kg/km | 2476 kg/km | 29,8 mm | Send inquiry |
| L61071899 | 300 mm² | 0,15 mm | 2880 kg/km | 3094 kg/km | 31,7 mm | Send inquiry |
section
wire-ø
± 10%
Other dimensions and colours are possible on request.
