R 107

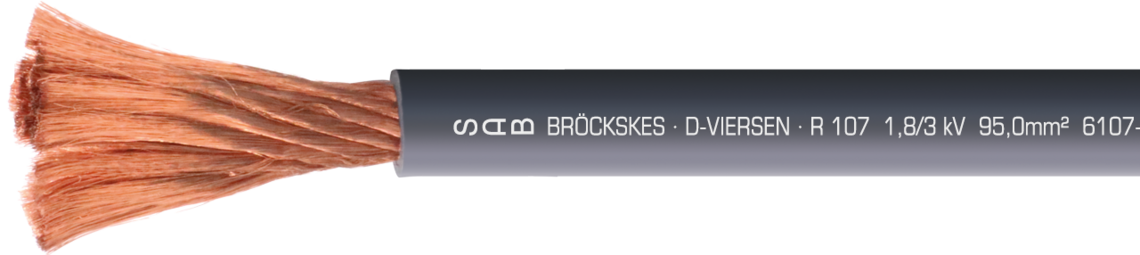

Besilen® insulated copper rope

Marking for R 107 61070890:
SAB BRÖCKSKES · D-VIERSEN · R 107 · 1,8/3 kV 25,0 mm² 6107-0890

Marking for R 107 61070890: SAB BRÖCKSKES · D-VIERSEN · R 107 · 1,8/3 kV 25,0 mm² 6107-0890

Application

EN 45545-2 certified cable for use as power cable or earthing cable in electrically operated railways. Due to its silicone (Besilen®) outer sheath, the cable can be used at temperatures up to +250°C. The insulated copper rope has other advantages in addition to very good electrical properties.

This Besilen insulated copper rope R 107 has got excellent characteristics regarding flexibilit. Even with elevated vibration and extreme temperature ranges it is for example used as earth cable in the coupling transition or pivoted bogie. In the 3. rail current collector or in the pantograph it is applied for a reliable current supply.

Certified according to DIN EN 45545 it fulfils highest safety requirements for cables in rail vehicles .

Outstanding features

  • extremely flexible
  • fulfils fire protection requirements acc. to EN 45545-2 /
    from 1,50 - 10,00 mm²: R15 (EL1A) HL 1 / R16 (EL1B) HL 1-2
    from 16,00 mm²: R15 (EL1A) HL 1-2 / R16 (EL1B) HL 1-3
  • halogen-free
  • Ozone resistant acc. to DIN EN 50382-2
  • heat resistant
  • flexible at low temperatures
  • flame retardant and self-extinguishing
  • weather resistant

Additional information

On request with tinned copper strands! Also available with copper braiding as R108!

Construction

Conductor

bare copper strands, extremely fine wires

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour

slate-gray (RAL 7015)

Conductor

bare copper strands, extremely fine wires

Insulation

Besilen® EI2 acc. to EN 50363-1 + VDE 0207-363-1

Colour

slate-gray (RAL 7015)

Technical data

Noominal voltage

Uo/U 1,8/3,0 kV

Testing voltage

6500 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

5 x d

Temperature range

fixed laying: -50/+180 °C

flexible application: 25/+180 °C

short-time use: -25/+250 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5%

acc. to IEC 60754-1.

pH-value is > 4,3 IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Weather resistance

very good

Ozone resistance

acc. to EN 50382-2 + VDE 0260-382-2

Oil resistance

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Noominal voltage

Uo/U 1,8/3,0 kV

Testing voltage

6500 V

Current-carrying capacity

acc. to VDE 0298-4

Min. bending radius

5 x d

Temperature range

fixed laying: -50/+180 °C

flexible application: 25/+180 °C

short-time use: -25/+250 °C

Halogen-free

acc. to EN 50306-1 + EN 50264-1 are fulfilled.

Development of HCl is < 0,5%

acc. to IEC 60754-1.

pH-value is > 4,3 IEC 60754-2.

Conductivity is < 10,0 µS/mm acc. to IEC 60754-2.

Fluoric content < 0,1% acc. to IEC 60684-2.

Fire performance

No flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 + VDE 0482-332-3-25 and EN 50305 + VDE 0260-305 section 9.1.2.

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Toxicity

acc. to EN 50305 + VDE 0260-305

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Weather resistance

very good

Ozone resistance

acc. to EN 50382-2 + VDE 0260-382-2

Oil resistance

good

Dimensions

item no. nominal cross
section
largest single
wire-ø
outer-ø ± 5% copper figure cable weight ca.
610708821,5 mm²0,07 mm6,9 mm14,4 kg/km62 kg/km Send inquiry
610708842,5 mm²0,07 mm7,4 mm24 kg/km76 kg/km Send inquiry
610708864 mm²0,07 mm8,1 mm38,4 kg/km97 kg/km Send inquiry
610708876 mm²0,07 mm8,5 mm57,6 kg/km119 kg/km Send inquiry
6107088810 mm²0,07 mm10 mm96 kg/km172 kg/km Send inquiry
6107088916 mm²0,07 mm10,3 mm153,6 kg/km222 kg/km Send inquiry
6107089025 mm²0,1 mm12,1 mm240 kg/km328 kg/km Send inquiry
6107089135 mm²0,1 mm13,8 mm336 kg/km435 kg/km Send inquiry
6107089250 mm²0,1 mm15,7 mm480 kg/km591 kg/km Send inquiry
6107089370 mm²0,1 mm17,7 mm672 kg/km788 kg/km Send inquiry
6107089495 mm²0,1 mm19,2 mm912 kg/km1041 kg/km Send inquiry
61070895120 mm²0,1 mm20,9 mm1152 kg/km1281 kg/km Send inquiry
61070896150 mm²0,1 mm24,1 mm1440 kg/km1588 kg/km Send inquiry
61070897185 mm²0,15 mm25,3 mm1776 kg/km1911 kg/km Send inquiry
61070898240,00 mm²0,15 mm29,8 mm2304 kg/km2476 kg/km Send inquiry
61070899300,00 mm²0,15 mm31,7 mm2880 kg/km3094 kg/km Send inquiry
item no.
nominal cross
section
largest single
wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
61070882
1,5 mm²
0,07 mm
6,9 mm
14,4 kg/km
62 kg/km
61070884
2,5 mm²
0,07 mm
7,4 mm
24 kg/km
76 kg/km
61070886
4 mm²
0,07 mm
8,1 mm
38,4 kg/km
97 kg/km
61070887
6 mm²
0,07 mm
8,5 mm
57,6 kg/km
119 kg/km
61070888
10 mm²
0,07 mm
10 mm
96 kg/km
172 kg/km
61070889
16 mm²
0,07 mm
10,3 mm
153,6 kg/km
222 kg/km
61070890
25 mm²
0,1 mm
12,1 mm
240 kg/km
328 kg/km
61070891
35 mm²
0,1 mm
13,8 mm
336 kg/km
435 kg/km
61070892
50 mm²
0,1 mm
15,7 mm
480 kg/km
591 kg/km
61070893
70 mm²
0,1 mm
17,7 mm
672 kg/km
788 kg/km
61070894
95 mm²
0,1 mm
19,2 mm
912 kg/km
1041 kg/km
61070895
120 mm²
0,1 mm
20,9 mm
1152 kg/km
1281 kg/km
61070896
150 mm²
0,1 mm
24,1 mm
1440 kg/km
1588 kg/km
61070897
185 mm²
0,15 mm
25,3 mm
1776 kg/km
1911 kg/km
61070898
240,00 mm²
0,15 mm
29,8 mm
2304 kg/km
2476 kg/km
61070899
300,00 mm²
0,15 mm
31,7 mm
2880 kg/km
3094 kg/km

Other dimensions and colours are possible on request.
