HV 1000 - S

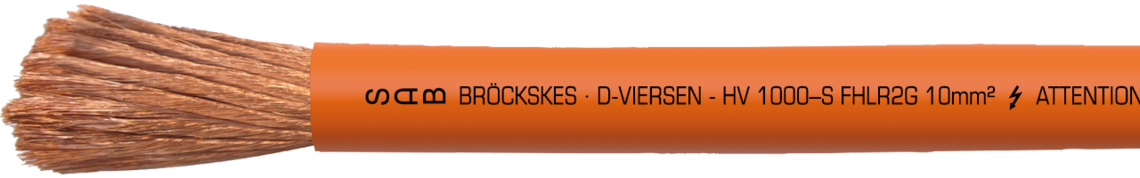

FHRLR2G - Highly flexible silicone-insulated high-voltage single conductor
Marking example: SAB BRÖCKSKES · D-VIERSEN - HV 1000–S FHLR2G 10mm² ATTENTION HIGH VOLTAGE MAX 600 V AC / 1000 V DC
Application
High-voltage cable with silicone insulation, specifically designed for electric and hybrid vehicles.
Used in the powertrain, batteries, inverters and power electronics.
Outstanding features
- very flexible
- extremely high mechanical strength
- high protection against environmental influences
- halogen-free
- Operating range from -40°C to +180°C
- PFAS-free
Additional information
Certifications
Construction, materials and tests with reference to:
- DIN EN 13602
- LV 216-2
- DIN EN 50525
- DIN EN 50363
- DIN EN 60811
In individual cases, the specific application must be agreed with S Bröckskes.
- On request also available as a shielded version „HV 1000 – SCS FHLR2GCB2G“
Construction
| Conductor | bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter |
|---|---|
| Insulation | silicone rubber |
| Sheath colour | orange (RAL 2003) |
bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
silicone rubber
orange (RAL 2003)
Technical data
| Typ | FHLR2G |
|---|---|
| Standard basis dimensions | LV 112-1 + LV 216-2 |
| Operating Voltage | 600 V AC / 1000 V DC |
| Testing volatge | sparktest 8000 V |
| Min. bending radius | fixed laying: 2 x d flexible application: 4 x d |
| Temperature range | -40/+180 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | acc. to ISO 19642 |
| Changing climate test | acc. to ISO 19642 |
| Ozone resistance | acc. to ISO 19642 |
| Media resistance | acc. to ISO 19642 |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
FHLR2G
LV 112-1 + LV 216-2
600 V AC / 1000 V DC
sparktest 8000 V
fixed laying: 2 x d
flexible application: 4 x d
-40/+180 °C
acc. to IEC 60754-1 + VDE 0482-754-1
acc. to ISO 19642
acc. to ISO 19642
acc. to ISO 19642
acc. to ISO 19642
very good
acc. to RoHS directive of the European Union
HV 1000 - S (dimensions acc. to LV 112-1 + LV 216-2)
| item no. |
Nominal cross section | Outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|
| L39162127 | 10,00 mm² | 6,0 -0,6 mm | 96,0 kg/km | 106 kg/km | 1,91 Ω/km | Send inquiry |
| L39162137 | 16,00 mm² | 7,2 -0,6 mm | 153,6 kg/km | 163 kg/km | 1,21 Ω/km | Send inquiry |
| L37162147 | 25,00 mm² | 8,8 -0,6 mm | 240,0 kg/km | 244 kg/km | 0,78 Ω/km | Send inquiry |
| L39162157 | 35,00 mm² | 10,5 -0,7 mm | 336,0 kg/km | 349 kg/km | 0,554 Ω/km | Send inquiry |
| L39162167 | 50,00 mm² | 12,2 -0,7 mm | 480,0 kg/km | 497 kg/km | 0,386 Ω/km | Send inquiry |
| L39162177 | 70,00 mm² | 14,4 -1,4 mm | 672,0 kg/km | 719 kg/km | 0,227 Ω/km | Send inquiry |
| L39162187 | 95,00 mm² | 17,2 -1,4 mm | 912,0 kg/km | 1935 kg/km | 0,206 Ω/km | Send inquiry |
| L39162197 | 120,00 mm² | 19,7 -1,8 mm | 1152,0 kg/km | 1183 kg/km | 0,161 Ω/km | Send inquiry |
section
at 20°C max.
Other dimensions and colours are possible on request.
