HV 1000 - SCS

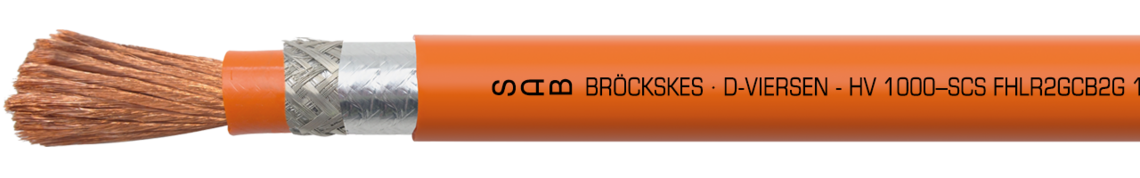

FHLR2GCB2G - Highly flexible silicone-insulated high-voltage single conductor with silicone outer sheath and overall copper screen
Marking example: SAB BRÖCKSKES · D-VIERSEN · HV 1000–SCS FHLR2GCB2G 10mm² ATTENTION HIGH VOLTAGE MAX 600 V AC / 1000 V DC
Application
High-voltage cable with silicone insulation, specifically designed for electric and hybrid vehicles.
Used in the powertrain, batteries, inverters and power electronics.
Outstanding features
- very flexible
- good EMC characteristics
- weather resistant
- halogen-free
- Operating range from -40°C to +180°C
- PFAS-free
Additional information
Certifications
Construction, materials and tests with reference to:
- DIN EN 13602
- LV 216-2
- DIN EN 50525
- DIN EN 50363
- DIN EN 60811
In individual cases, the specific application must be agreed with SAB Bröckskes.
On request also available as a unshielded version „HV 1000 – S FHLR2G“
Construction
| Conductor | bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter |
|---|---|
| Insulation | silicone rubber |
| Screen | tinned copper braiding optical coverage ≥ 85% aluminum-laminated foil, with the metal side on the inside |
| Sheath material | silicone rubber |
| Sheath colour | orange (RAL 2003) |
bare copper strands, extra fine wires, CU ETP-1 acc. to EN 13602, max. 0,21 mm single-wire diameter
silicone rubber
tinned copper braiding
optical coverage ≥ 85%
aluminum-laminated foil, with the metal side on the inside
silicone rubber
orange (RAL 2003)
Technical data
| Typ | FHLR2GCB2G |
|---|---|
| Standard basis dimensions | LV 216-2 |
| Operating voltage | 600 V AC / 1000 V DC |
| Testing voltage | spark test 8000 V core/screen 5000 V |
| Min. bending radius | fixed laying: 3 x d flexible application: 5 x d |
| Temperature range | -40/+180 °C |
| Halogen-free | acc. to IEC 60754-1 + VDE 0482-754-1 |
| Fire performance | acc. to ISO 19642 |
| Changing climate test | acc. to ISO 19642 |
| Ozone resistance | acc. to ISO 19642 |
| Media resistance | acc. to ISO 19642 |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
FHLR2GCB2G
LV 216-2
600 V AC / 1000 V DC
spark test 8000 V
core/screen 5000 V
fixed laying: 3 x d
flexible application: 5 x d
-40/+180 °C
acc. to IEC 60754-1 + VDE 0482-754-1
acc. to ISO 19642
acc. to ISO 19642
acc. to ISO 19642
acc. to ISO 19642
very good
acc. to RoHS directive of the European Union
HV 1000 - SCS (dimensions acc. to LV 216-2)
| item no. |
Nominal cross section | Approx. core-ø | Outer-ø | Copper figure | Cable weight ≈ |
Ohmic resistance at 20°C max. | |
|---|---|---|---|---|---|---|---|
| L39162227 | 10,00 mm | 6,0 -0,6 mm | 8,8 -0,6 mm | 134,8 kg/km | 164 kg/km | 1,91 Ω/km | Send inquiry |
| L39162237 | 16,00 mm | 7,2 -0,6 mm | 10,2 -0,6 mm | 201,0 kg/km | 235 kg/km | 1,21 Ω/km | Send inquiry |
| L39162247 | 25,00 mm | 8,8 -0,6 mm | 12,2 -0,6 mm | 321,6 kg/km | 354 kg/km | 0,78 Ω/km | Send inquiry |
| L39162257 | 35,00 mm | 10,5 -0,7 mm | 14,4 -0,6 mm | 433,5 kg/km | 488 kg/km | 0,554 Ω/km | Send inquiry |
| L39162267 | 50,00 mm | 12,2 -0,7 mm | 15,8 -0,6 mm | 581,2 kg/km | 623 kg/km | 0,386 Ω/km | Send inquiry |
| L39162277 | 70,00 mm | 14,4 -1,4 mm | 18,2 -0,8 mm | 794,6 kg/km | 866 kg/km | 0,227 Ω/km | Send inquiry |
| L39162287 | 95,00 mm | 17,2 -1,4 mm | 20,9 -0,8 mm | 1097,0 kg/km | 1167 kg/km | 0,206 Ω/km | Send inquiry |
| L39162297 | 120,00 mm | 19,7 -1,8 mm | 23,5 -1,0 mm | 1354,0 kg/km | 1440 kg/km | 0,161 Ω/km | Send inquiry |
section
at 20°C max.
Other dimensions and colours are possible on request.
