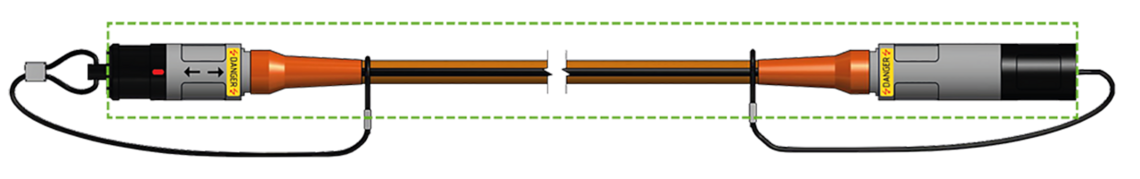

HV 2 x PT100/PT1000 extension cable
Application
Extension of HV 2 x Pt 100 sensors
Outstanding features
- contact protection over all components
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number, length
Cable data
| Connection cable | HV measuring cable |
|---|---|
| Insulation | FEP – acc. to DIN 47100 1-8 |
| Pair sheath | FEP – orange acc. to RAL 2004 |
| Inner sheath | PUR – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour: | orange with green vertical stripes |
| Stranding | optimised in layers |
| Outer diameter | approx. 7,4 mm |
| Dielectric strength | 1000 V AC over pair sheath |
| Temperature range | fixed laying: -40°C / +150°C flexible application: -40°C / +150°C |
HV measuring cable
FEP – acc. to DIN 47100 1-8
FEP – orange acc. to RAL 2004
PUR – blue acc. to RAL 5024
PUR
orange with green vertical stripes
optimised in layers
approx. 7,4 mm
1000 V AC over pair sheath
fixed laying: -40°C / +150°C
flexible application: -40°C / +150°C
Connectors
| Lemo Redel male connector | male/female connector with orange kink protection sleeve and black protecting cap, 8-pin, C-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
male/female connector with orange kink protection sleeve and black protecting cap, 8-pin, C-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | core/core – 2500 V AC - 5 min over pair sheath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Product test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
core/core – 2500 V AC - 5 min over pair sheath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC

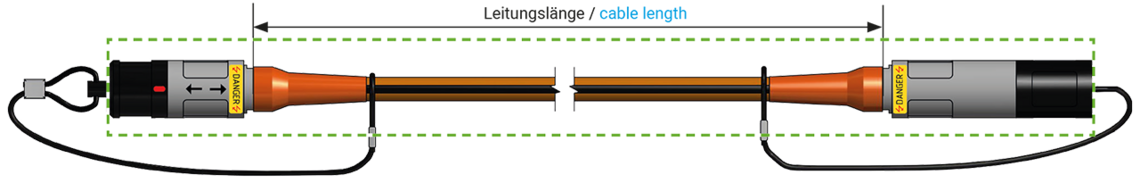

Configuration examples
| item no. | Connection cable length | |
|---|---|---|
| T641-056-497 | 1000 mm | Send inquiry |
| T641-058-117 | 3000 mm | Send inquiry |
| T641-058-574 | 5000 mm | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
