8-plug and 16-plug connectors in plastic / aluminium

Application

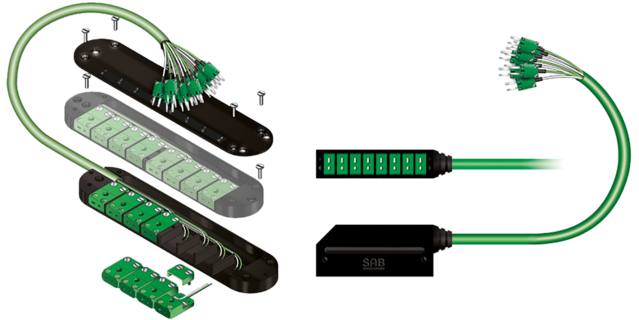

This item is used, for example in automobile industry in test vehicles. Thermocouples can be easily connected. in case of failure, the faulty element can be exchanged without much effort. Test engines require temperature measurements at the most different points, e.g. in oilpans, cooling tubes and combustion gases, etc. Cables coming from the different measuring points can be plugged into the connector conveniently. Advantage: reduced wiring effort. On request we are able to provide the company logo as well as individual fixing bores.

The plastic connector offers also recessed grips for easy handling. Due to the plastic housing damages in the passenger area are avoided. The small and space saving construction form offers an advantage compared with aluminium connectors.

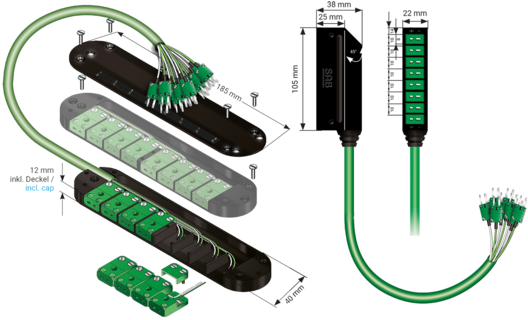

Construction

Number of connectors

- 8 miniature sockets

- 16 miniature sockets

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type

- 8-plug, plastic

- 8-plug, aluminum

- 16-plug, aluminum

Number of connectors

- 8 miniature sockets

- 16 miniature sockets

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Type

- 8-plug, plastic

- 8-plug, aluminum

- 16-plug, aluminum

Configuration examples

item no. Material Channels Cable Cable length Stripping length Connection ends
T065-052-975plastic88 x 2 x 0,22 mm² FEP/C/FEP1000 mm100 mmminiature thermoplug Send inquiry
T065-053-717plastic88 x 2 x 0,22 mm² FEP/C/FEP1000 mm100 mmbare ends Send inquiry
T065-058-810aluminum88 x 2 x 0,22 mm² FEP/C/FEP1000 mm250 mmminiature thermoplug Send inquiry
T065-038-531aluminum1616 x 2 x 0,22 mm² FEP/C/FEP1000 mm300 mmminiature thermoplug Send inquiry
item no.
Material
Channels
Cable
Cable length
Stripping length
Connection ends
T065-052-975
plastic
8
8 x 2 x 0,22 mm² FEP/C/FEP
1000 mm
100 mm
miniature thermoplug
T065-053-717
plastic
8
8 x 2 x 0,22 mm² FEP/C/FEP
1000 mm
100 mm
bare ends
T065-058-810
aluminum
8
8 x 2 x 0,22 mm² FEP/C/FEP
1000 mm
250 mm
miniature thermoplug
T065-038-531
aluminum
16
16 x 2 x 0,22 mm² FEP/C/FEP
1000 mm
300 mm
miniature thermoplug

Other configurations are possible on request.
