Beat in mineral insulated thermocouple with cable
Application

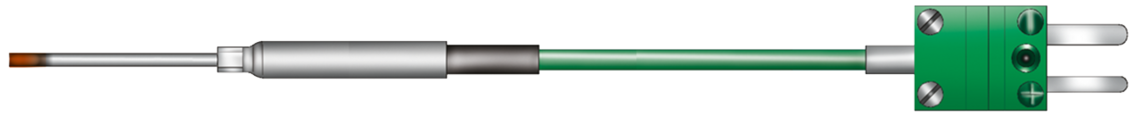

The beat‑in / drive‑in mineral insulated thermocouple with cable is designed for precise surface temperature measurement in industrial and automotive applications. This surface thermocouple can be securely mounted by beating or driving it into a prefabricated groove, ensuring stable and reproducible positioning. The measuring point is located behind the copper tip and is easily identifiable by its color difference.
Available as Type K or J, this thermocouple can also be supplied with other thermocouple types or custom sensor variants on request. FEP‑insulated extension cables in lengths from 0.5 m to 10 m (or custom lengths) provide installation flexibility. Optional kink protection increases mechanical durability in demanding environments.
Depending on the type, the measurement range reaches up to +750 °C for Type J and +1000 °C for Type K. In combination with high‑temperature materials (up to +1100 °C), this drive‑in thermocouple delivers a reliable, durable, and precise solution for surface temperature monitoring.
Outstanding features
- Accurate surface temperature measurement on surfaces, housings, and pipes
- Secure mounting through prefabricated groove using beat‑in or drive‑in installation
- Thermocouple types K or J; additional types or custom sensors available on request
- Optional kink protection for enhanced mechanical durability
- Flexible FEP‑insulated connection cables with customizable lengths
- Measurement range up to +750 °C (Type J) / +1000 °C (Type K)
- High‑temperature materials up to +1100 °C for industrial use
Additional information
- type J class 1: -40°C / +750°C
- type K class 1: -40°C / +1000°C
- limit deviation: class 1
- material 1.4541: +800°C
- material 2.4816: +1100°C
Please note that the temperature stability of the sensor is determined by the weakest parameters.
Construction

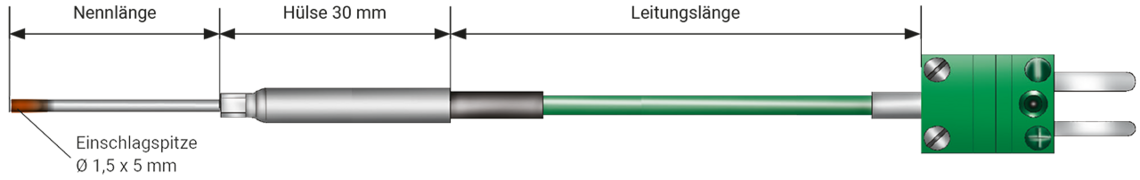

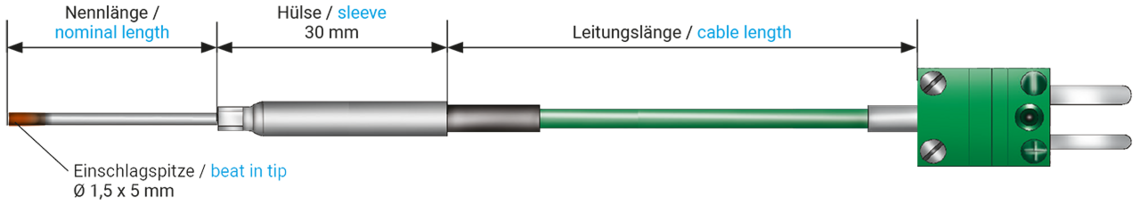

| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Nominal length | According to customer requests. Please specify in mm. |
| Type | - with kink protection - without kink protection |
| Connection cable | - Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP) - Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP) - other connection cables - on request (see technical data) |
| Connection cable length | - 0,5 m - 1,0 m - 1,5 m - 2,0 m - 3,0 m - 5,0 m - 10,0 m - other length - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Possible on request | with batch certificate and identification |
The following thermocouple types can be selected depending on the application:
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
According to customer requests. Please specify in mm.
- with kink protection
- without kink protection
- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)
- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)
- other connection cables - on request (see technical data)
- 0,5 m
- 1,0 m
- 1,5 m
- 2,0 m
- 3,0 m
- 5,0 m
- 10,0 m
- other length - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
with batch certificate and identification
