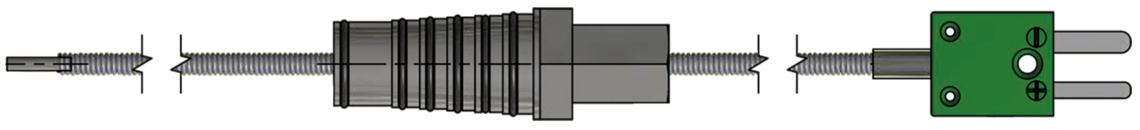

Dip-stick thermocouple and adjustable mounting with 3-stage sealing inserts
Application
This set can be used for the most different oil filler necks with the help of the 3 sealing inserts.
Additional information
The individual sealing inserts can be ordered separately.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Class accuracy | class 1 |
| Types of measuring tip | form A, insulated measuring tip |
| Temperature range | 0°C...+200°C |
| Sensor tube | Ø 2 x 0,3 mm |
| Spring | Ø 3,5 mm |
| Spring length | 1.500 mm |
| Material | 1.4310 |
| Connection end | miniature thermo plug with potting |
| Configuration example | item no.: T860-060-108 thermocouple: 1 x type K measuring point: form A, insulated spring length: 1500 mm connection end: miniature thermo plug with potting |
The following thermocouple types can be selected depending on the application:
- 1 x type K
- other thermocouples - acc. to customer’s request
class 1
form A, insulated measuring tip
0°C...+200°C
Ø 2 x 0,3 mm
Ø 3,5 mm
1.500 mm
1.4310
miniature thermo plug with potting
item no.: T860-060-108
thermocouple: 1 x type K
measuring point: form A, insulated
spring length: 1500 mm
connection end: miniature thermo plug with potting
Configuration example
| item no. | Thermocouple | Measuring point | spring length | Connection ends | |
|---|---|---|---|---|---|
| T860-060-108 | 1 x type K | form A, insulated | 1500 mm | miniature thermo plug with potting | Send inquiry |
Other configurations are possible on request.
