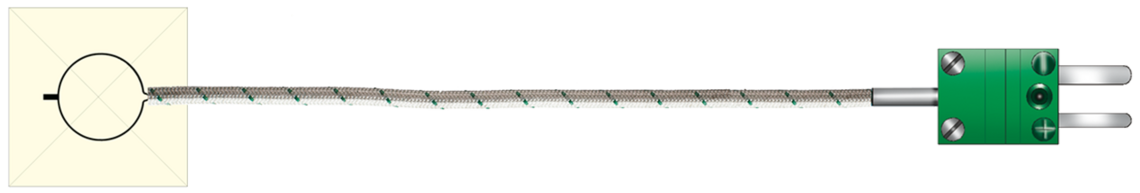

Self-adhesive surface thermocouple

Application

Self-adhesive thermocouples to measure the temperature at the sleeves of the drive shaft. The data transmission is done by a telemetric device. Several self-adhesive thermocouples can be mounted in a space saving way without any problem.

This surface thermocouple is used, for example in automobile industry, especially everywhere quick and uncomplicated temperatures must be measured. Advantage: No special preparation necessary at the measuring points. It only has to be paid attention to the fact that the surface is free of dust, grease and oils.

Additional information

Temperature range of the sensor is dependent of the temperature resistance of the cable e.g. FEP +180°C
limit deviation: class 1
Please note that the temperature stability of the sensor is determined by the weakest parameters.

Spare adhesive pads in cut-outs and a packaging unit of 100 pieces are available on one roll!
Also available as Type T!

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Pad size

- glass cloth tape +230°C

- Pi foil +250°C

- HT max. +315°C

Connection cable

- single wire / fibre-glass / fibre-glass

- single wire / FEP / FEP

- single wire / polyimide / polyimide

- other connection cable - acc. to customer’s request

Cable length

According to customer requests. Please specify in mm.

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Pad size

- glass cloth tape +230°C

- Pi foil +250°C

- HT max. +315°C

Connection cable

- single wire / fibre-glass / fibre-glass

- single wire / FEP / FEP

- single wire / polyimide / polyimide

- other connection cable - acc. to customer’s request

Cable length

According to customer requests. Please specify in mm.

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Configuration examples

item no. Type Adhesive pad Cable Cable length Connection ends
T130-031-950Kglass cloth2 x 0,20 mm GL/GL1000 mmminiature thermoplug Send inquiry
T130-058-997Kalu foil2 x 0,20 mm GL/GL1000 mmminiature thermoplug Send inquiry
item no.
Type
Adhesive pad
Cable
Cable length
Connection ends
T130-031-950
K
glass cloth
2 x 0,20 mm GL/GL
1000 mm
miniature thermoplug
T130-058-997
K
alu foil
2 x 0,20 mm GL/GL
1000 mm
miniature thermoplug

Other configurations are possible on request.
