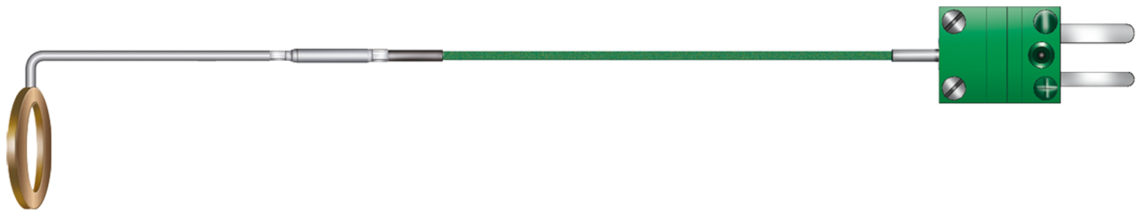

Spark plug surface sensor

Application

This surface temperature sensor is used for the easy measurement at the sealing ring of spark plugs, for example in automobile industry. Working with spark plug spanner isn’t impeded.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Ring diameter

- Ø 19 x 13,1 x 2,5 mm Ms

(standard version for spark plugs)

- other thermocouples - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection

- without kink protection

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Ring diameter

- Ø 19 x 13,1 x 2,5 mm Ms

(standard version for spark plugs)

- other thermocouples - acc. to customer’s request

Nominal length

According to customer requests. Please specify in mm.

Type

- with kink protection

- without kink protection

Connection cable

- Thermocouple extension cable 2 x 0,22 mm² (FEP / C / FEP)

- Thermocouple extension cable 2 x 0,22 mm² (FEP / FEP)

- other connection cables - on request (see technical data)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Configuration example

item no. Type Dimension Nominal length Material Cable Cable length Connection ends
T207-044-579K19 x 13,1 x 2,5 mm52 mm1.4541FEP/C/FEP300 mmminiature thermoplug Send inquiry
item no.
Type
Dimension
Nominal length
Material
Cable
Cable length
Connection ends
T207-044-579
K
19 x 13,1 x 2,5 mm
52 mm
1.4541
FEP/C/FEP
300 mm
miniature thermoplug

Other configurations are possible on request.
