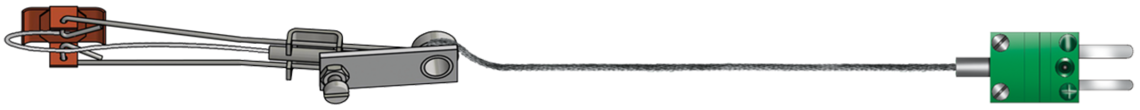

Surface thermocouple for brake discs

Surface thermocouple for brake discs

Surface thermocouple for brake discs

Application

Temperature sensor for the quick temperature collection on flat and rotating surfaces, such as brake discs.

Fixing possibilities:

The fixing is done by a screw on the holding plate. With the help of a setting screw the initial spring preload can be adjusted. The fixing is done by a metal sheet with through-hole or threaded hole.

The fixing is done by a metal sheet with through-hole or threaded hole. By counter nuts the slackening of the thread insert can be avoided. Depending on the screw-in depth the spring pre-load can be modified.

The fixing is done by a metal sheet with through-hole or threaded hole. By counter nuts the slackening of the thread insert can be avoided. Via bayonet the sensor can be mounted and removed easily. Depending on the screw-in depth the spring pre-load can be modified.

Construction

Thermocouple

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Sheath material

Ø 0,5 with variable holding plate 11 x 17 mm (E-Cu)

Length

Sheath material with stainless steel wire armouring (VA)

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Thermocouple

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Sheath material

Ø 0,5 with variable holding plate 11 x 17 mm (E-Cu)

Length

Sheath material with stainless steel wire armouring (VA)

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Configuration examples

item no. Type Thermocouple Cable Cable length Connection ends Dimension
T895-050-687with holding platetype KØ0,5er min.t/c with special steel protecting tube1000 mmminiature thermoplug85 x 10 mm Send inquiry
T055-057-737bayonet M12type K2 x 0,22 mm² GL/ Besilen®1000 mmminiature thermoplugM12 Send inquiry
T999-057-738bayonet M12type K2 x 0,22 mm² GL/ Besilen®1000 mmminiature thermoplugM12 Send inquiry
T999-040-282screw-in sensor M12type K2 x 0,22 mm² FEP/FEP500 mmminiature thermoplugM12 Send inquiry
item no.
Type
Thermocouple
Cable
Cable length
Connection ends
Dimension
T895-050-687
with holding plate
type K
Ø0,5er min.t/c with special steel protecting tube
1000 mm
miniature thermoplug
85 x 10 mm
T055-057-737
bayonet M12
type K
2 x 0,22 mm² GL/ Besilen®
1000 mm
miniature thermoplug
M12
T999-057-738
bayonet M12
type K
2 x 0,22 mm² GL/ Besilen®
1000 mm
miniature thermoplug
M12
T999-040-282
screw-in sensor M12
type K
2 x 0,22 mm² FEP/FEP
500 mm
miniature thermoplug
M12

Other configurations are possible on request.
