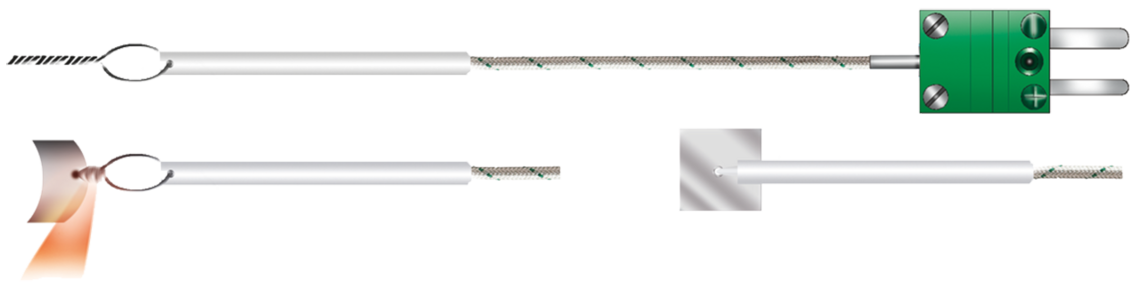

Surface thermocouple with ceramic housing

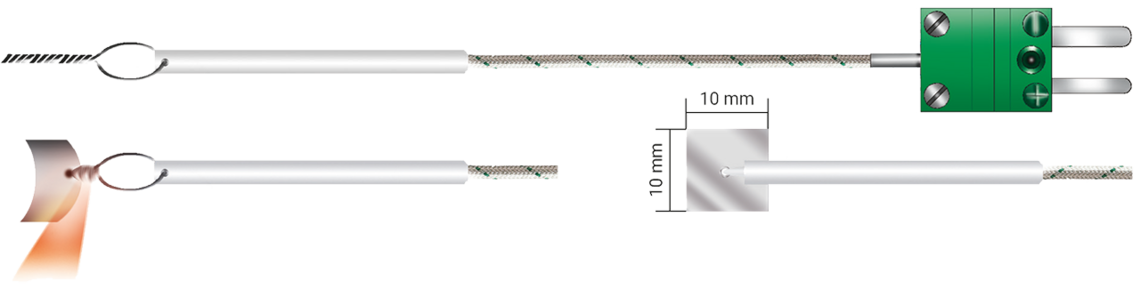

Surface thermocouple with ceramic housing

Surface thermocouple with ceramic housing

Application

This surface thermocouple is applied in the exhaust gas area. It is especially appropriate for a quick and uncomplicated temperature measurement. By welding the measuring tip the sensor can be easily positioned at the required measuring point.

Additional information

The ceramic insulation is also available separately!
Temperature range +400°C, short time use +600°C (24h)

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Connection cable

- fibre-glass insulated thermocouple extension cable 2 x 0,50 mmØ +400°C

- other connection cables - acc. to customer’s request

(see also survey of connecting cables for thermocouples)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - on request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type K

- other thermocouples - acc. to customer’s request

Connection cable

- fibre-glass insulated thermocouple extension cable 2 x 0,50 mmØ +400°C

- other connection cables - acc. to customer’s request

(see also survey of connecting cables for thermocouples)

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - on request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Configuration examples

item no. Note Type Cable Cable length Connection ends
T100-053-130without fitting panelK2 x 0,50 mm GL3000 mmminiature thermoplug Send inquiry
T999-056-584with special steel fitting panelK2 x 0,50 mm GL2000 mmminiature thermoplug Send inquiry
item no.
Note
Type
Cable
Cable length
Connection ends
T100-053-130
without fitting panel
K
2 x 0,50 mm GL
3000 mm
miniature thermoplug
T999-056-584
with special steel fitting panel
K
2 x 0,50 mm GL
2000 mm
miniature thermoplug

Other configurations are possible on request.

Highly flexible cables according to your special requirements
