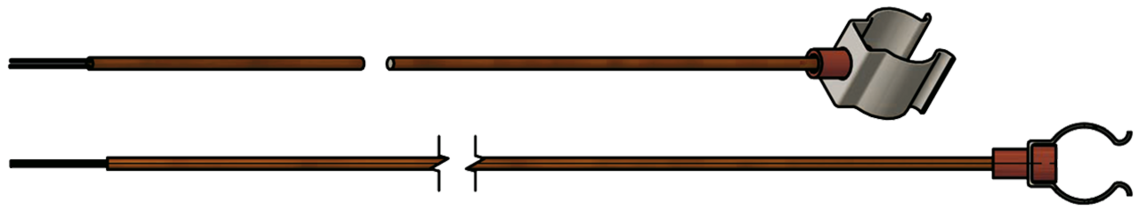

Surface thermocouple with pipe clamp
Application
Pipe clamp thermocouples, also referred to as surface temperature probes or clamp-on thermocouples, are specifically designed for reliable pipe-mounted temperature measurement on pipes and pipe connections, such as those found in air conditioning systems, cooling circuits, and fluid lines. The sensor is attached directly to the pipe using a robust pipe clamp, enabling accurate temperature detection without penetrating the medium.
Depending on the application, thermocouple types K or J are available. The thermocouple is combined with a temperature-resistant connection cable and can be supplied with various pipe clamp sizes to ensure optimal thermal contact and reproducible measurement results.
Thanks to flexible configuration options including clamp diameter, cable length, connection type, and optional certification, these pipe thermocouples are ideally suited for industrial applications, building services engineering, and energy systems.
Outstanding features
- Accurate pipe-mounted temperature measurement on pipes and connections without interfering with the process
- Secure mounting via clamp-on thermocouple design, ensuring constant contact pressure and stable measurement results
- Thermocouple types K or J suitable for a wide range of industrial and HVAC applications
- High configurability with various pipe clamp diameters, cable lengths, and connection options
- Temperature-resistant connection cable up to +250 °C for demanding operating environments
Additional information
Also available with other clamp types and sizes!

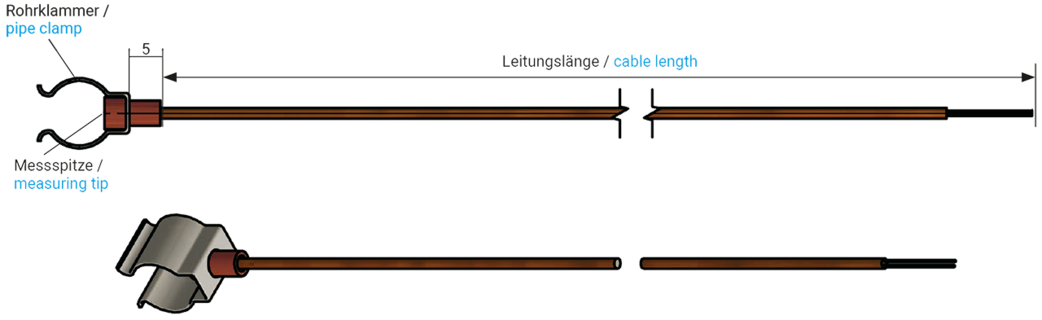

Construction
| Thermocouple | - 1 x type J - 1 x type K - other thermocouples - acc. to customer’s request |
|---|---|
| Connection cable | - Pi foil insulated thermocouple extension cable 2 x 0,20 mmØ +250°C - other connection cables - acc. to customer’s request |
| Pipe clamp | - Ø 6 - 7 - Ø 10 - 12 - Ø 13 - 14 - Ø 16 - 19 - other nominal - acc. to customer’s request |
| Connection cable length | - 0,50 m - 1,00 m - 1,50 m - 2,00 m - 3,00 m - 5,00 m - 10,00 m - other lengths - acc. to customer’s request |
| Connection ends | - miniature thermoplug - miniature socket - standard plug - standard socket - free ends specify in mm - acc. to customer’s request - other connection ends |
| Possible on request | with batch certificate and identification |
- 1 x type J
- 1 x type K
- other thermocouples - acc. to customer’s request
- Pi foil insulated thermocouple extension cable 2 x 0,20 mmØ +250°C
- other connection cables - acc. to customer’s request
- Ø 6 - 7
- Ø 10 - 12
- Ø 13 - 14
- Ø 16 - 19
- other nominal - acc. to customer’s request
- 0,50 m
- 1,00 m
- 1,50 m
- 2,00 m
- 3,00 m
- 5,00 m
- 10,00 m
- other lengths - acc. to customer’s request
- miniature thermoplug
- miniature socket
- standard plug
- standard socket
- free ends specify in mm - acc. to customer’s request
- other connection ends
with batch certificate and identification
Configuration examples
| item no. | Type | Pipe clamp nominal Ø | Cable | Cable length | Connection ends | |
|---|---|---|---|---|---|---|
| T999-056-952 | K | 6-7 mm | 2 x 0,20 mm PI | 1000 mm | free ends | Send inquiry |
| T999-056-953 | K | 10-12 mm | 2 x 0,20 mm PI | 1000 mm | free ends | Send inquiry |
| T999-056-954 | K | 13-14 mm | 2 x 0,20 mm PI | 1000 mm | free ends | Send inquiry |
| T999-056-955 | K | 16-19 mm | 2 x 0,20 mm PI | 1000 mm | free ends | Send inquiry |
Other configurations are possible on request.
