Surface thermocouple with twisted cores / screened cable for measurements in EMC critical areas as for example rotor / stator

Application

For the temperature collection at Hairpin windings in the stator very small and at the same time robust thermocouples are needed. The scattering effect of electromagnetic radiation from the surrounding copper windings shall not distort the measuring result. For this application SAB Bröckskes has developed different surface thermocouples. The necessary cables have been optimised in our own cable works with regard to screening and twisting.

Contruction

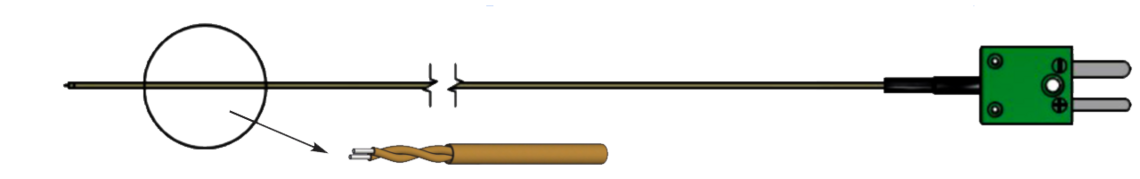

Thermocouple

- 1 x type N

- 1 x type K

- other thermocouples

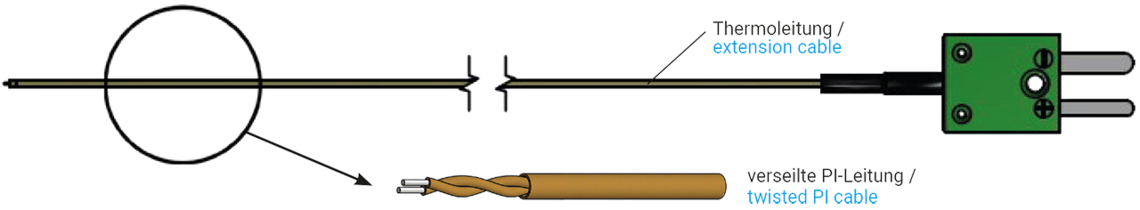

Connection cable

- L0433-9138, 2 x 0,20 mm Ø, cores next to each other, PI foil insulation KN/KP bare/PI sheath,

type K, -40…+ 250°C, outer-Ø approx. 0,7 mm

- L0433-9262, 2 x 0,20 mm Ø, twisted cores, PTFE foil NP/NN bare/PI-sheath,

type N, -40…+ 250°C, outer-Ø approx. 0,8 mm

- L0433-9279, 2 x 0,20 mm Ø, twisted cores, PI foil insulation/sheath,

type K, -40…+ 250°C, outer-Ø, approx. 0,85 mm

-L0433-9280, 2 x 0,20 mm Ø twisted cores, PI foil insulation/nickel-plated copper braid/

PI-sheath, type K, -40…+ 250°C, outer-Ø approx. 1,05 mm

Connection cable length

- 0,50 m

- 1,00 m

- 1,50 m

- 2,00 m

- 3,00 m

- 5,00 m

- 10,0 m

- other length

Connection ends

- miniature thermoplug

- miniature socket

- free ends mm

- other connection ends

- with batch certificate and identification

Thermocouple

- 1 x type N

- 1 x type K

- other thermocouples

Connection cable

- L0433-9138, 2 x 0,20 mm Ø, cores next to each other, PI foil insulation KN/KP bare/PI sheath,

type K, -40…+ 250°C, outer-Ø approx. 0,7 mm

- L0433-9262, 2 x 0,20 mm Ø, twisted cores, PTFE foil NP/NN bare/PI-sheath,

type N, -40…+ 250°C, outer-Ø approx. 0,8 mm

- L0433-9279, 2 x 0,20 mm Ø, twisted cores, PI foil insulation/sheath,

type K, -40…+ 250°C, outer-Ø, approx. 0,85 mm

-L0433-9280, 2 x 0,20 mm Ø twisted cores, PI foil insulation/nickel-plated copper braid/

PI-sheath, type K, -40…+ 250°C, outer-Ø approx. 1,05 mm

Connection cable length

- 0,50 m

- 1,00 m

- 1,50 m

- 2,00 m

- 3,00 m

- 5,00 m

- 10,0 m

- other length

Connection ends

- miniature thermoplug

- miniature socket

- free ends mm

- other connection ends

- with batch certificate and identification

Configuration examples

item no. Type Measuring tip Cable Cable length Connection ends
T100-061-046Ksleeve PTFE2 x 0,20 mm PI stranded1500 mmminiature thermoplug Send inquiry
T100-061-998KPI foil2 x 0,20 mm PI stranded2000 mmbare Send inquiry
T100-060-628Kbare2 x 0,20 mm PI stranded2000 mmminiature thermoplug Send inquiry
T100-060-629Kbare2 x 0,20 mm PI stranded3000 mmminiature thermoplug Send inquiry
T100-061-276Kbare2 x 0,20 mm PI stranded1000 mmbare Send inquiry
T100-062-000KPI foil2 x 0,20 mm PI stranded2000 mmbare Send inquiry
item no.
Type
Measuring tip
Cable
Cable length
Connection ends
T100-061-046
K
sleeve PTFE
2 x 0,20 mm PI stranded
1500 mm
miniature thermoplug
T100-061-998
K
PI foil
2 x 0,20 mm PI stranded
2000 mm
bare
T100-060-628
K
bare
2 x 0,20 mm PI stranded
2000 mm
miniature thermoplug
T100-060-629
K
bare
2 x 0,20 mm PI stranded
3000 mm
miniature thermoplug
T100-061-276
K
bare
2 x 0,20 mm PI stranded
1000 mm
bare
T100-062-000
K
PI foil
2 x 0,20 mm PI stranded
2000 mm
bare

Other configurations are possible on request.
