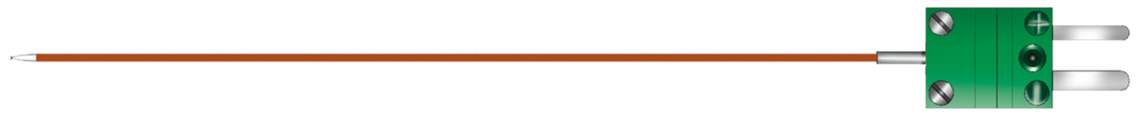

Surface thermocouple with welding bead

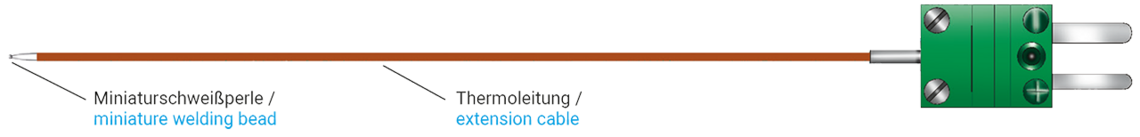

Surface thermocouple with coated miniature welding bead

Surface thermocouple with coated miniature welding bead

Application

This surface thermocouple with polyimide cable is used for example in coil windings, electronic parts and narrow spaces. Batch certificate and identification can be delivered on request.

Additional information

With stranded and shielded thermocouple cables!

Construction

Measuring tips

- bare

- flattened

- insulated

- sleeve PTFE/ insulated

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type N

- 1 x type K

- 1 x type T

- other thermocouples - acc. to customer’s request

Connection cable

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C approx. 0,7 mmØ

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C type K stranded approx. 0,8 mmØ

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C type K stranded and braided, approx. 0,8 mmØ

- other connection cables - acc. to customer’s request

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Measuring tips

- bare

- flattened

- insulated

- sleeve PTFE/ insulated

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type J

- 1 x type N

- 1 x type K

- 1 x type T

- other thermocouples - acc. to customer’s request

Connection cable

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C approx. 0,7 mmØ

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C type K stranded approx. 0,8 mmØ

- Thermocouple cable 2 x 0,20 mmØ / polyimide +250°C type K stranded and braided, approx. 0,8 mmØ

- other connection cables - acc. to customer’s request

Connection cable length

- 0,5 m

- 1,0 m

- 1,5 m

- 2,0 m

- 3,0 m

- 5,0 m

- 10,0 m

- other length - acc. to customer’s request

Connection ends

- miniature thermoplug

- miniature socket

- standard plug

- standard socket

- free ends specify in mm - acc. to customer’s request

- other connection ends

Possible on request

with batch certificate and identification

Configuration examples

item no. Type Measuring tip Cable Cable length Connection ends
T100-054-316Kbare2 x 0,20 mm PI1000 mmminiature thermoplug Send inquiry
T100-048-288Kbare2 x 0,20 mm PI/PFA1000 mmminiature thermoplug Send inquiry
T100-053-628Kbare (insulated with PI foil)2 x 0,20 mm PI1000 mmminiature thermoplug Send inquiry
T100-049-178Kinsulated2 x 0,20 mm PI1000 mmminiature thermoplug Send inquiry
T100-057-499Kbare2 x 0,20 mm PI1000 mmminiature thermoplug Send inquiry
T100-060-215Kbare2 x 0,20 mm PI (braided)1000 mmminiature thermoplug 3 pole Send inquiry
T100-060-214Kbare2 x 0,20 mm PI (stranded)1000 mmminiature thermoplug Send inquiry
T100-061-046Ksleeve PTFE approx. 1,2 x 5 mmØ2 x 0,20 mm PI (stranded)1500 mmminiature thermoplug Send inquiry
item no.
Type
Measuring tip
Cable
Cable length
Connection ends
T100-054-316
K
bare
2 x 0,20 mm PI
1000 mm
miniature thermoplug
T100-048-288
K
bare
2 x 0,20 mm PI/PFA
1000 mm
miniature thermoplug
T100-053-628
K
bare (insulated with PI foil)
2 x 0,20 mm PI
1000 mm
miniature thermoplug
T100-049-178
K
insulated
2 x 0,20 mm PI
1000 mm
miniature thermoplug
T100-057-499
K
bare
2 x 0,20 mm PI
1000 mm
miniature thermoplug
T100-060-215
K
bare
2 x 0,20 mm PI (braided)
1000 mm
miniature thermoplug 3 pole
T100-060-214
K
bare
2 x 0,20 mm PI (stranded)
1000 mm
miniature thermoplug
T100-061-046
K
sleeve PTFE approx. 1,2 x 5 mmØ
2 x 0,20 mm PI (stranded)
1500 mm
miniature thermoplug

Other configurations are possible on request.
