MTC 203

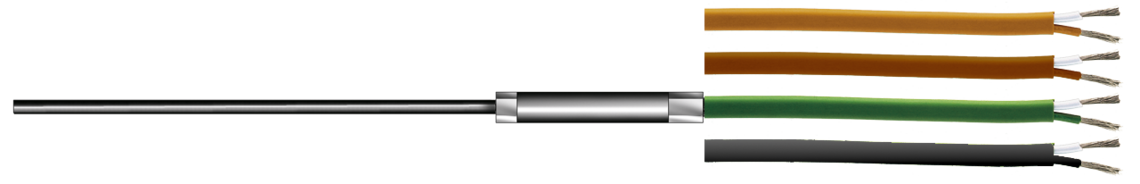

Mineral insulated thermocouple with PVC connection cable A 9-022

Mineral insulated thermocouple with PVC connection cable A 9-022

Mineral insulated thermocouple with PVC connection cable A 9-022

Application

Mineral insulated thermocouple type K, type J or type L with PVC connecting cable can be supplied with a sheath diameter of 0.64 mm, 2.0 mm,
6.0 mm, 1.00 mm, 3.0 mm, 8.0 mm, 1.50 mm, 4.5 mm or other sheath diameters according to customer requirements.

The thermocouple can be offered with the following types: 1 x type L, 1 x type J, 1 x type K, 2 x type L, 2 x type J, 2 x type K or other
types - depending on customer requirements.

Construction

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

- 0,64 mm

- 1,00 mm

- 1,50 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath diameter - acc. to customer’s request

Sheath material

- 1.4541

- 2.4816

- other sheath materials - acc. to customer’s request

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends - acc. to customer’s request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths - acc. to customer’s request

Type of measuring tip

- form A, insulated measuring tip, without kink protection

- form A, insulated measuring tip, with kink protection

- form B, welded measuring tip, without kink protection

- form B, welded measuring tip, with kink protection

all types in class 1

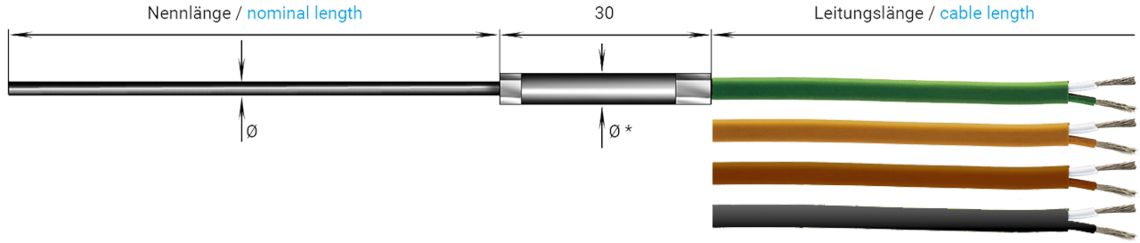

Nominal length

According to customer requests. Please specify in mm.

Connection cable

PVC connection cable A 9-022

Thermocouple

The following thermocouple types can be selected depending on the application:

- 1 x type L

- 2 x type L

- 1 x type J

- 2 x type J

- 1 x type K

- 2 x type K

- other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

- 0,64 mm

- 1,00 mm

- 1,50 mm

- 2,0 mm

- 3,0 mm

- 4,5 mm

- 6,0 mm

- 8,0 mm

- other sheath diameter - acc. to customer’s request

Sheath material

- 1.4541

- 2.4816

- other sheath materials - acc. to customer’s request

Type of cable ends

- bare ends

- cable lugs M4

- end sleeves

- tinned

- other cable ends - acc. to customer’s request

Connection cable

- 1,0 m

- 1,5 m

- 2,0 m

- 2,5 m

- 3,0 m

- 4,0 m

- 5,0 m

- 10,0 m

- other lengths - acc. to customer’s request

Type of measuring tip

- form A, insulated measuring tip, without kink protection

- form A, insulated measuring tip, with kink protection

- form B, welded measuring tip, without kink protection

- form B, welded measuring tip, with kink protection

all types in class 1

Nominal length

According to customer requests. Please specify in mm.

Connection cable

PVC connection cable A 9-022
