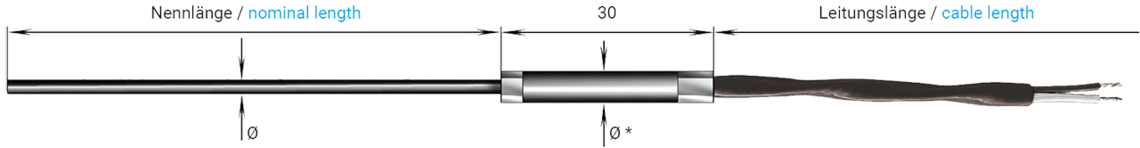

Mineral insulated thermocouple with PFA connection cable Th 22 LTT
Mineral insulated thermocouple with PFA connection cable Th 22 LTT
Application
Mineral-insulated thermocouple type K, type J or according to customer requirements with connecting cable can be supplied as form A (insulated measuring tip, with/without kink protection) or as form B (welded measuring tip, with/without kink protection).
You can construct your individual mineral-insulated thermocouple using the parameters below or get direct advice from our temperature measurement technology experts. Contact us for further information.
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type L - 2 x type L - 1 x type J - 2 x type J - 1 x type K - 2 x type K - other thermocouples - acc. to customer’s request type L acc. to DIN 43710 type J and K acc. to DIN EN 60584 |
|---|---|
| Sheath diameter | - 0,64 mm - 1,00 mm - 1,50 mm - 2,0 mm - 3,0 mm - 4,5 mm - 6,0 mm - 8,0 mm - other sheath diameter - acc. to customer’s request |
| Sheath material | - 1.4541 - 2.4816 - other sheath materials - acc. to customer’s request |
| Type of cable ends | - bare ends - cable lugs M4 - end sleeves - tinned - other cable ends - acc. to customer’s request |
| Connection cable | - 1,0 m - 1,5 m - 2,0 m - 2,5 m - 3,0 m - 4,0 m - 5,0 m - 10,0 m - other lengths - acc. to customer’s request |
| Type of measuring tip | - form A, insulated measuring tip, without kink protection - form A, insulated measuring tip, with kink protection - form B, welded measuring tip, without kink protection - form B, welded measuring tip, with kink protection all types in class 1 |
| Nominal length | According to customer requests. Please specify in mm. |
| Connection cable | PFA connection cable Th 22 LTT |
