MTC 301

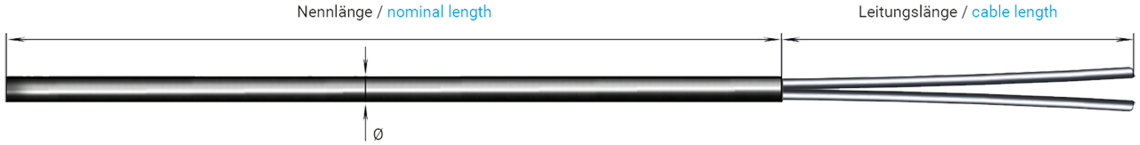

Mineral insulated thermocouple with bare connection ends
Thermocouple with bare wire ends, Class 1 measuring tip (Form A or B) and individually adjustable nominal length
Application
The MTE 301 sheathed thermocouple with bare connection ends is designed for precise temperature measurements in industrial applications. Depending on the application, it can be supplied with all common thermocouple types, including types K, J, and L, as well as other special types on customer request. The measuring tip is available in Class 1, Form A or Form B and ensures high accuracy and reproducible measurement results. Sheath diameters and materials can be flexibly selected, from 0.64 mm to 8 mm, with materials such as 1.4541 or 2.4816, to meet the requirements of different environments.
The exposed connection wires are available in different lengths from 10 mm to 60 mm, and special connection ends or accessories can be integrated on request. The nominal length of the sheath thermocouple can be individually adapted to customer requirements, making the MTE 301 particularly flexible and versatile.
Outstanding features
- High-precision temperature measurement with type K, J, L, or customer-specific thermocouple types
- Class 1 measuring tip, form A or B, for reliable measurement results
- Flexible sheath diameters (0.64 mm – 8 mm) and materials (1.4541, 2.4816)
- Exposed (bare) connection ends in various lengths
- Individually adjustable nominal length
- Optinal accessories are avilable
Construction
| Thermocouple | The following thermocouple types can be selected depending on the application: - 1 x type L - 2 x type L - 1 x type J - 2 x type J - 1 x type K - 2 x type K - other thermocouples - acc. to customer’s request type L acc. to DIN 43710 type J and K acc. to DIN EN 60584 |
|---|---|
| Sheath diameter | - 0,64 mm - 1,00 mm - 1,50 mm - 2,0 mm - 3,0 mm - 4,5 mm - 6,0 mm - 8,0 mm - other sheath diameter - acc. to customer’s request |
| Sheath materials | - 1.4541 - 2.4816 - other sheath materials - acc. to customer’s request |
| Type of cable ends | - bare ends L=10mm - bare ends L=25mm - bare ends L=40mm - bare ends L=50mm - bare ends L=60mm - other cable ends - acc. to customer’s request |
| Accessories (fix) | - without - with accessories - acc. to customer’s request |
| Type of measuring tip | - class 1, form A - class 1, form B |
| Nominal length | According to customer requests. Please specify in mm. |
The following thermocouple types can be selected depending on the application:
- 1 x type L
- 2 x type L
- 1 x type J
- 2 x type J
- 1 x type K
- 2 x type K
- other thermocouples - acc. to customer’s request
type L acc. to DIN 43710
type J and K acc. to DIN EN 60584
- 0,64 mm
- 1,00 mm
- 1,50 mm
- 2,0 mm
- 3,0 mm
- 4,5 mm
- 6,0 mm
- 8,0 mm
- other sheath diameter - acc. to customer’s request
- 1.4541
- 2.4816
- other sheath materials - acc. to customer’s request
- bare ends L=10mm
- bare ends L=25mm
- bare ends L=40mm
- bare ends L=50mm
- bare ends L=60mm
- other cable ends - acc. to customer’s request
- without
- with accessories - acc. to customer’s request
- class 1, form A
- class 1, form B
According to customer requests. Please specify in mm.
