MTC 304

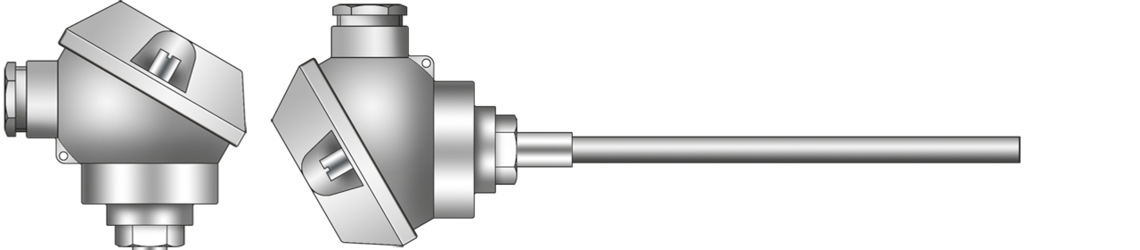

Mineral insulated thermocouple with connection head

Mineral insulated thermocouple with connection head

Mineral insulated thermocouple with connection head

Construction

Thermocouple

■ 1 x type L     ■ 1 x type J     ■ 1 x type K

■ 2 x type L     ■ 2 x type J     ■ 2 x type K

■ other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

■ 1,5 mm     ■ 3,0 mm     ■ 6,0 mm

■ 2,0 mm     ■ 4,5 mm

■ other sheath diameter - acc. to customer’s request

Sheath material

■ 1.4541      ■ 2.4816

■ other sheath materials - acc. to customer’s request

Connection head

■ form MA

■ form S

■ form L

■ other connection heads - acc. to customer’s request

Accessories (fix)

■ without

■ with accessories - acc. to customer’s request

Type of measuring tip

■ class 1, form A

■ class 1, form B

Nominal length

specify in mm

Thermocouple

■ 1 x type L     ■ 1 x type J     ■ 1 x type K

■ 2 x type L     ■ 2 x type J     ■ 2 x type K

■ other thermocouples - acc. to customer’s request

type L acc. to DIN 43710

type J and K acc. to DIN EN 60584

Sheath diameter

■ 1,5 mm     ■ 3,0 mm     ■ 6,0 mm

■ 2,0 mm     ■ 4,5 mm

■ other sheath diameter - acc. to customer’s request

Sheath material

■ 1.4541      ■ 2.4816

■ other sheath materials - acc. to customer’s request

Connection head

■ form MA

■ form S

■ form L

■ other connection heads - acc. to customer’s request

Accessories (fix)

■ without

■ with accessories - acc. to customer’s request

Type of measuring tip

■ class 1, form A

■ class 1, form B

Nominal length

specify in mm
