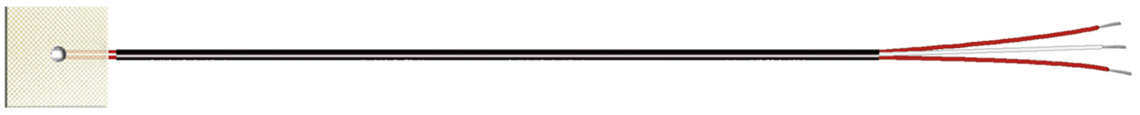

Self-adhesive surface resistance thermometer

Self-adhesive surface resistance thermometer

Self-adhesive surface resistance thermometer

Application

Especially appropriate where quick and uncomplicated temperatures must be measured. Advantage: No special preparation necessary at the measuring points. It only has to be paid attention to the fact that the surface is free of dust, grease and oils.



Additional information

Please note that the temperature stability of the sensor is determined by the weakest parameters.
Spare adhesive pads in cut-outs and a packaging unit of 100 pieces are available on one roll!




Construction

RTD

1 x PT100

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Connection cable

- RTD cable (F EP / FEP)

- other connection cables - acc. to customer’s request

Cable length

According to customer requests. Please specify in m.

(only for type with gas tight tub)

Connection ends

- bare ends

- endsleeves

- cable lugs M4

- tinned

- other cable ends - acc. to customer’s request

RTD

1 x PT100

Connection types of inner wire

- 2-wire circuit

- 3-wire circuit

- 4-wire circuit

Connection cable

- RTD cable (F EP / FEP)

- other connection cables - acc. to customer’s request

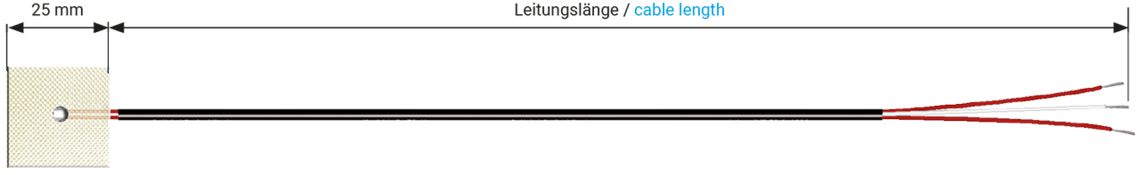

Cable length

According to customer requests. Please specify in m.

(only for type with gas tight tub)

Connection ends

- bare ends

- endsleeves

- cable lugs M4

- tinned

- other cable ends - acc. to customer’s request

Configuration examples

item no. RTD Connection types Adhesive pad Cable Cable length Connection ends
T630-058-5701 x PT1003-wire circuitglass clothFEP/FEP5000 mmbare ends Send inquiry
T630-057-2911 x PT100 (AA)4-wire circuitglass clothGL/GL500 mmLemo socket size 0, 4 pole Send inquiry
item no.
RTD
Connection types
Adhesive pad
Cable
Cable length
Connection ends
T630-058-570
1 x PT100
3-wire circuit
glass cloth
FEP/FEP
5000 mm
bare ends
T630-057-291
1 x PT100 (AA)
4-wire circuit
glass cloth
GL/GL
500 mm
Lemo socket size 0, 4 pole

Other configurations are possible on request.
