RT 113

Torsion angle 270° over 0.5 m acc. to UL/CSA

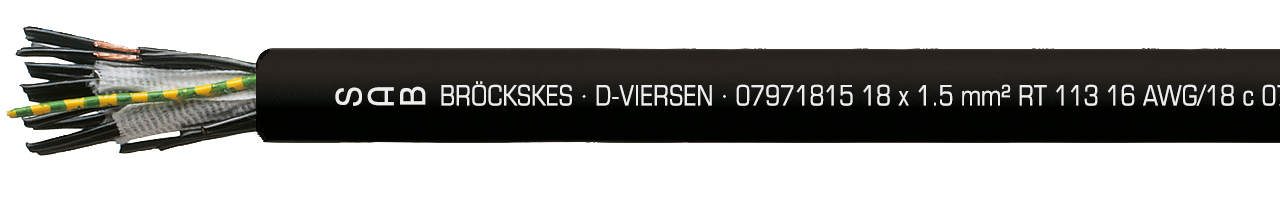

Marking for RT 113 07971815: SAB BRÖCKSKES · D-VIERSEN · 07971815 18 x 1.5 mm² RT 113 16 AWG/18 c 07961618 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

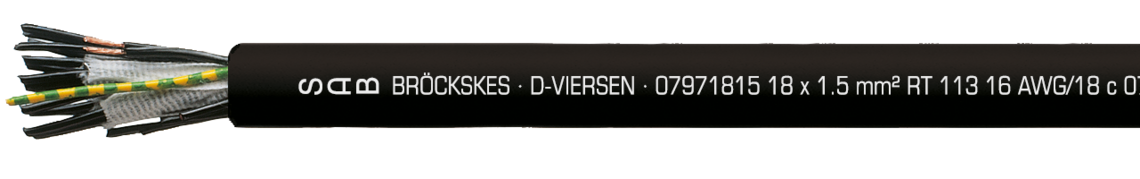

Marking for RT 113 07971815: SAB BRÖCKSKES · D-VIERSEN · 07971815 18 x 1.5 mm² RT 113 16 AWG/18 c 07961618 UL AWM Style 21216 90°C Oil 60°C 600V CSA AWM I/II A/B 90°C F 600V FT1 FT2 CE

Application

RT 113 is a PVC torsion cable with a torsion angle up to +/- 270° over 0.5 m. It is recommended for use in packaging, wood working, textile, welding and cutting machine construction, car manufacturing industry, industrial robot construction, electrical drive, control, and measurement technology, construction of industrial plants and machine tooling construction.

Also suitable for applications on robots!

Outstanding features

  • rugged and reliable
  • torsion angle up to ± 270° over 0,5 m
  • UL recognized, CSA approval

Cable construction

Conductor

0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires

from 0,50 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

0,14 mm² - 0,34 mm²: acc. to colour code US 2

from 0,50 mm²: acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer

Sheath material

PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

0,14 mm² - 0,34 mm²: max. 350 V

Nominal voltage

from 0,50mm²: DIN VDE: Uo/U 300/500 V

Voltage

0,14 mm² - 0,34 mm²: UL: 300 V

from 0,50mm²: UL/CSA: 600 V

Testing voltage

0,14 mm² - 0,34 mm²: core/core 1500V

from 0,50mm²: core/core 2000V

Torsion angle

up to +/-270°/0,5 m

Min. bending radius

continuously flexible: 12 x d

from 34 cores: 20 x d

Temperature range

0,14 mm² - 0,34 mm²: UL: up to +80°C

0,14 mm² - 0,34 mm²: DIN VDE fixed laying: -40/+70°C

0,14 mm² - 0,34 mm²: DIN VDE flexible application: +5/+70°C



from 0,50 mm² UL/CSA: up to +90°C

from 0,50 mm² DIN VDE fixed laying: -40/+70°C

from 0,50 mm² DIN VDE flexible application: +5/+70°C

Fire performance

0,14 mm² - 0,34 mm²: UL VW-1, IEC 60332-1-2 and UL VW-1

from 0,50mm²: acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to EN 50363-4-1 + VDE 0207-363-4-1, oilrating 60 °C acc. to UL 758,

Fuel-Oil acc. to CSA C22.2 No. 210.2-M90

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.largest single wire-øouter-ø ± 5%copper figurecable weight ca.
079703013 x 0,14 mm²0,11 mm5,2 mm4 kg/km32 kg/km
079704014 x 0,14 mm²0,11 mm5,6 mm5,4 kg/km36 kg/km
079703023 x 0,25 mm²0,11 mm5,6 mm7,2 kg/km38 kg/km
079704024 x 0,25 mm²0,11 mm5,9 mm9,6 kg/km43 kg/km
079707027 x 0,25 mm²0,11 mm7,3 mm16,8 kg/km66 kg/km
0797250225 x 0,25 mm²0,11 mm11,4 mm60 kg/km172 kg/km
079702032 x 0,34 mm²0,11 mm5,5 mm6,5 kg/km39 kg/km
0797250525 x 0,50 mm²0,16 mm14,8 mm132 kg/km318 kg/km
079704074 x 0,75 mm²0,16 mm7,5 mm28,8 kg/km79 kg/km
079707077 x 0,75 mm²0,16 mm10,2 mm67,2 kg/km157 kg/km
0797140714 x 0,75 mm²0,16 mm12,7 mm100,8 kg/km225 kg/km
079702102 x 1,00 mm²0,16 mm6,8 mm19,2 kg/km65 kg/km
079703103 x 1,00 mm²0,16 mm7,2 mm28,8 kg/km77 kg/km
079704104 x 1,00 mm²0,16 mm7,9 mm38,4 kg/km93 kg/km
0797121012 x 1,00 mm²0,16 mm12,6 mm115,2 kg/km234 kg/km
0797181018 x 1,00 mm²0,16 mm14,8 mm172,8 kg/km340 kg/km
0797251025 x 1,00 mm²0,16 mm17,2 mm240 kg/km473 kg/km
0797341034 x 1,00 mm²0,16 mm20,2 mm326,4 kg/km616 kg/km
0797411041 x 1,00 mm²0,16 mm21,6 mm393,6 kg/km735 kg/km
0797181518 x 1,50 mm²0,16 mm16,5 mm259,2 kg/km456 kg/km
0797251525 x 1,50 mm²0,16 mm19,3 mm360 kg/km638 kg/km
079703253 x 2,50 mm²0,16 mm10,2 mm72 kg/km160 kg/km
079704254 x 2,50 mm²0,16 mm11,1 mm96 kg/km194 kg/km
079703403 x 4,00 mm²0,16 mm12,3 mm115,2 kg/km234 kg/km
079703613 x 10,00 mm²0,21 mm18,5 mm288 kg/km548 kg/km
079703623 x 16,00 mm²0,21 mm21,1 mm460,8 kg/km794 kg/km
079703633 x 25,00 mm²0,21 mm23,9 mm720 kg/km1128 kg/km
079703643 x 35,00 mm²0,21 mm28,9 mm1008 kg/km1555 kg/km
