RT 123

Torsion angle 450° over 0.5 m acc. to UL/CSA

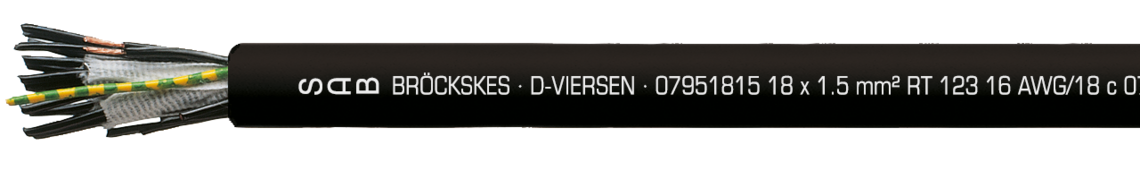

Marking for RT 123 07951815: SAB BRÖCKSKES · D-VIERSEN · 07951815 18 x 1.5 mm² RT 123 16 AWG/18 c 07951618 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Marking for RT 123 07951815: SAB BRÖCKSKES · D-VIERSEN · 07951815 18 x 1.5 mm² RT 123 16 AWG/18 c 07951618 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE

Application

RT 123 is a PUR torsion cable with a torsion angle up to +/- 450° over 0.5 m. It is recommended for use in packaging, wood working, textile, welding and cutting machine construction, car manufacturing industry, industrial robot construction, electrical drive, control, and measurement technology, construction of industrial plants and machine tooling construction.
Also suitable for applications on robots!

Outstanding features

  • rugged and reliable
  • torsion angle up to ± 450° over 0,5 m
  • UL recognized, CSA approval

Construction

Conductor

0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires

from 0,50 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

0,14 mm² - 0,34 mm²: acc. to colour code US 2

from 0,50 mm²: black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Conductor

0,14 mm² - 0,34 mm²: bare copper strands, extra fine wires

from 0,50 mm²: bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

TPE

Colour code

0,14 mm² - 0,34 mm²: acc. to colour code US 2

from 0,50 mm²: black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Sheath colour

black (RAL 9005)

Technical data

Peak operating voltage

0,14 mm² - 0,34 mm²: max. 350 V

Nominal voltage

from 0,50mm²: Uo/U 300/500 V

Voltage

0,14 mm² - 0,34 mm²: UL/CSA: 300 V

from 0,50mm²: UL/CSA: max. 600 V

Testing voltage

0,14 mm² - 0,34 mm²: core/core 1500 V

from 0,50mm²: core/core 3000V

Torsion angle

up to +/-450°/0,5 m

Min. bending radius

continuously flexible: 12 x d

from 34 cores: 20 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +80°C

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

0,14 mm² - 0,34 mm²: max. 350 V

Nominal voltage

from 0,50mm²: Uo/U 300/500 V

Voltage

0,14 mm² - 0,34 mm²: UL/CSA: 300 V

from 0,50mm²: UL/CSA: max. 600 V

Testing voltage

0,14 mm² - 0,34 mm²: core/core 1500 V

from 0,50mm²: core/core 3000V

Torsion angle

up to +/-450°/0,5 m

Min. bending radius

continuously flexible: 12 x d

from 34 cores: 20 x d

Radiation resistance

5 x 10^7 cJ/kg

Temperature range

UL/CSA: up to +80°C

DIN VDE fixed laying: -50/+90 °C

DIN VDE flexible application: -40/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL VW-1, CSA FT1, FT2

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
079503013 x 0,14 mm²0,11 mm5,5 mm4 kg/km31 kg/km Send inquiry
079504014 x 0,14 mm²0,11 mm4,7 mm5,4 kg/km26 kg/km Send inquiry
079503023 x 0,25 mm²0,11 mm4,6 mm7,2 kg/km25 kg/km Send inquiry
079504024 x 0,25 mm²0,11 mm4,8 mm9,6 kg/km28 kg/km Send inquiry
079507027 x 0,25 mm²0,11 mm5,4 mm16,8 kg/km39 kg/km Send inquiry
0795250225 x 0,25 mm²0,11 mm9,1 mm60 kg/km117 kg/km Send inquiry
079502032 x 0,34 mm²0,11 mm4,8 mm6,6 kg/km27 kg/km Send inquiry
0795180518 x 0,50 mm²0,16 mm12,5 mm95 kg/km216 kg/km Send inquiry
0795250525 x 0,50 mm²0,16 mm14,6 mm132 kg/km303 kg/km Send inquiry
079504074 x 0,75 mm²0,16 mm7,8 mm28,8 kg/km78 kg/km Send inquiry
0795140714 x 0,75 mm²0,16 mm12,6 mm100,8 kg/km207 kg/km Send inquiry
079502102 x 1,00 mm²0,16 mm7,3 mm19,2 kg/km64 kg/km Send inquiry
079503103 x 1,00 mm²0,16 mm7,6 mm28,8 kg/km75 kg/km Send inquiry
079504104 x 1,00 mm²0,16 mm8,1 mm38,4 kg/km91 kg/km Send inquiry
079506106 x 1,00 mm²0,16 mm9,4 mm57,6 kg/km127 kg/km Send inquiry
079507107 x 1,00 mm²0,16 mm10 mm67,2 kg/km147 kg/km Send inquiry
0795121012 x 1,00 mm²0,16 mm12,2 mm115,2 kg/km214 kg/km Send inquiry
0795181018 x 1,00 mm²0,16 mm14,7 mm172,8 kg/km316 kg/km Send inquiry
0795251025 x 1,00 mm²0,16 mm16,6 mm240 kg/km428 kg/km Send inquiry
0795341034 x 1,00 mm²0,16 mm19,7 mm326,4 kg/km559 kg/km Send inquiry
0795401040 x 1,00 mm²0,16 mm20,9 mm384 kg/km659 kg/km Send inquiry
0795411041 x 1,00 mm²0,16 mm20,9 mm393,6 kg/km670 kg/km Send inquiry
079507157 x 1,50 mm²0,16 mm11,3 mm100,8 kg/km197 kg/km Send inquiry
0795121512 x 1,50 mm²0,16 mm14,3 mm172,8 kg/km303 kg/km Send inquiry
0795181518 x 1,50 mm²0,16 mm16,6 mm259,2 kg/km435 kg/km Send inquiry
0795251525 x 1,50 mm²0,16 mm19,1 mm360 kg/km609 kg/km Send inquiry
079503253 x 2,50 mm²0,16 mm9,9 mm72 kg/km136 kg/km Send inquiry
079504254 x 2,50 mm²0,16 mm10,3 mm96 kg/km166 kg/km Send inquiry
079505255 x 2,50 mm²0,16 mm11,8 mm120 kg/km210 kg/km Send inquiry
079503403 x 4,00 mm²0,16 mm11,5 mm115,2 kg/km211 kg/km Send inquiry
079503613 x 10,00 mm²0,21 mm16,5 mm288 kg/km471 kg/km Send inquiry
079503623 x 16,00 mm²0,21 mm19,4 mm460,8 kg/km682 kg/km Send inquiry
079503633 x 25,00 mm²0,21 mm24 mm720 kg/km1035 kg/km Send inquiry
079503643 x 35,00 mm²0,21 mm27,2 mm1008 kg/km1389 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
07950301
3 x 0,14 mm²
0,11 mm
5,5 mm
4 kg/km
31 kg/km
07950401
4 x 0,14 mm²
0,11 mm
4,7 mm
5,4 kg/km
26 kg/km
07950302
3 x 0,25 mm²
0,11 mm
4,6 mm
7,2 kg/km
25 kg/km
07950402
4 x 0,25 mm²
0,11 mm
4,8 mm
9,6 kg/km
28 kg/km
07950702
7 x 0,25 mm²
0,11 mm
5,4 mm
16,8 kg/km
39 kg/km
07952502
25 x 0,25 mm²
0,11 mm
9,1 mm
60 kg/km
117 kg/km
07950203
2 x 0,34 mm²
0,11 mm
4,8 mm
6,6 kg/km
27 kg/km
07951805
18 x 0,50 mm²
0,16 mm
12,5 mm
95 kg/km
216 kg/km
07952505
25 x 0,50 mm²
0,16 mm
14,6 mm
132 kg/km
303 kg/km
07950407
4 x 0,75 mm²
0,16 mm
7,8 mm
28,8 kg/km
78 kg/km
07951407
14 x 0,75 mm²
0,16 mm
12,6 mm
100,8 kg/km
207 kg/km
07950210
2 x 1,00 mm²
0,16 mm
7,3 mm
19,2 kg/km
64 kg/km
07950310
3 x 1,00 mm²
0,16 mm
7,6 mm
28,8 kg/km
75 kg/km
07950410
4 x 1,00 mm²
0,16 mm
8,1 mm
38,4 kg/km
91 kg/km
07950610
6 x 1,00 mm²
0,16 mm
9,4 mm
57,6 kg/km
127 kg/km
07950710
7 x 1,00 mm²
0,16 mm
10 mm
67,2 kg/km
147 kg/km
07951210
12 x 1,00 mm²
0,16 mm
12,2 mm
115,2 kg/km
214 kg/km
07951810
18 x 1,00 mm²
0,16 mm
14,7 mm
172,8 kg/km
316 kg/km
07952510
25 x 1,00 mm²
0,16 mm
16,6 mm
240 kg/km
428 kg/km
07953410
34 x 1,00 mm²
0,16 mm
19,7 mm
326,4 kg/km
559 kg/km
07954010
40 x 1,00 mm²
0,16 mm
20,9 mm
384 kg/km
659 kg/km
07954110
41 x 1,00 mm²
0,16 mm
20,9 mm
393,6 kg/km
670 kg/km
07950715
7 x 1,50 mm²
0,16 mm
11,3 mm
100,8 kg/km
197 kg/km
07951215
12 x 1,50 mm²
0,16 mm
14,3 mm
172,8 kg/km
303 kg/km
07951815
18 x 1,50 mm²
0,16 mm
16,6 mm
259,2 kg/km
435 kg/km
07952515
25 x 1,50 mm²
0,16 mm
19,1 mm
360 kg/km
609 kg/km
07950325
3 x 2,50 mm²
0,16 mm
9,9 mm
72 kg/km
136 kg/km
07950425
4 x 2,50 mm²
0,16 mm
10,3 mm
96 kg/km
166 kg/km
07950525
5 x 2,50 mm²
0,16 mm
11,8 mm
120 kg/km
210 kg/km
07950340
3 x 4,00 mm²
0,16 mm
11,5 mm
115,2 kg/km
211 kg/km
07950361
3 x 10,00 mm²
0,21 mm
16,5 mm
288 kg/km
471 kg/km
07950362
3 x 16,00 mm²
0,21 mm
19,4 mm
460,8 kg/km
682 kg/km
07950363
3 x 25,00 mm²
0,21 mm
24 mm
720 kg/km
1035 kg/km
07950364
3 x 35,00 mm²
0,21 mm
27,2 mm
1008 kg/km
1389 kg/km

Other dimensions and colours are possible on request.
