TA 867 CF
FEP connection cable with extended temperature range and overall copper screen

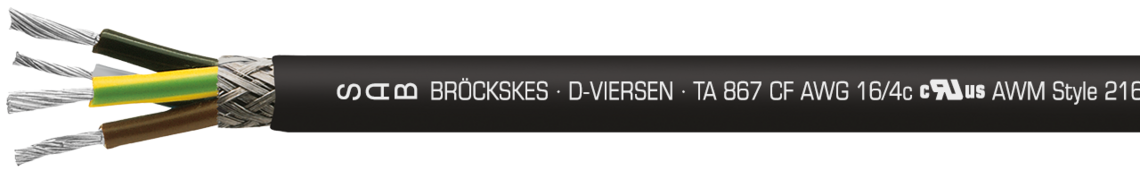

Marking for TA 867 CF 38670415: SAB BRÖCKSKES · D-VIERSEN · TA 867 CF AWG 16/4c cULus AWM Style 21618 I/II A/B 150°C 600V FT1 FT2 3867-0415 CE
Application
This FEP connection cable with a copper braiding is suitable for use up to 180°C. Due to its very high resistance to acids, halogens, bases, chlorinated solvents and organic and inorganic compounds, this cable is used in high-frequency and broadband technology.
Outstanding features
- excellent resistance against chemicals and solvents
- excellent temperature resistance and flexibility at low temperatures
- excellent electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics
- UL/cUL recognized
Construction
| Conductor | tinned copper strands acc. to IEC 60228, VDE 0295, class 5 |
|---|---|
| Insulation | FEP, 6YI1 acc. to VDE 0207-6 |
| Colour code | coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire |
| Stranding | in layers |
| Wrapping | foil |
| Screen | tinned copper braiding |
| Sheath material | FEP, 6YM1 acc. to VDE 0207-6 |
| Sheath colour | black (RAL 9005) |
tinned copper strands acc. to IEC 60228, VDE 0295, class 5
FEP, 6YI1 acc. to VDE 0207-6
coloured acc. to HD 308 (VDE 0293-308), from 6 cores black cores with consecutive numbers
acc. to EN 50334 + VDE 0293-334, from 3 cores a green-yellow earth wire
in layers
foil
tinned copper braiding
FEP, 6YM1 acc. to VDE 0207-6
black (RAL 9005)
Technical data
| Nominal voltage | Uo/U 300/500 V |
|---|---|
| Voltage UL/cUL | 600 V |
| Testing voltage | core/core 2000 V core/screen 2000 V |
| Min. bending radius | 7,5 x d |
| Radiation resistance | 1 x 10⁷ cJ/kg |
| Temperature range | DIN VDE fixed laying: -90/+180 °C DIN VDE flexible application: -55/+180 °C UL/cUL: up to +150 °C |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2 |
| Oil resistance | very good acc. to UL standard 758, at 80 °C after 80 days |
| Chem. resistance | very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
Uo/U 300/500 V
600 V
core/core 2000 V
core/screen 2000 V
7,5 x d
1 x 10⁷ cJ/kg
DIN VDE fixed laying: -90/+180 °C
DIN VDE flexible application: -55/+180 °C
UL/cUL: up to +150 °C
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2
very good acc. to UL standard 758, at 80 °C after 80 days
very good against acids, halogens, bases,
chlorinated solvents as well as organic and
inorganic compounds
gemäß RoHS-Richtlinie der Europäischen Union
