TD 801 F

FEP data cable with extended temperature range, +180°C

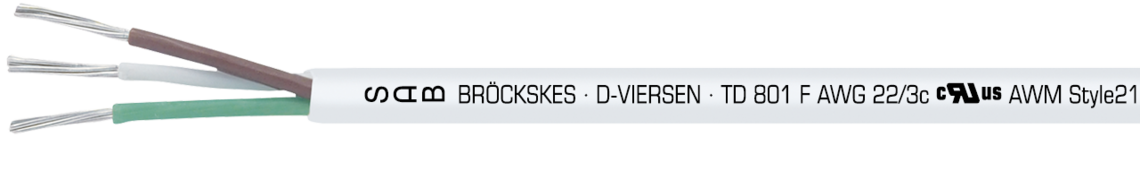

Marking example: SAB BRÖCKSKES · D-VIERSEN · TD 801 F AWG 22/3c cULus AWM Style 21618 I/II A/B 150°C 600V FT1 FT2 3801-0322 CE

Questions about our products?

Application

TD 801 F is a FEP data cable with flexibility at low temperatures and extended temperature range up to +180°C. This FEP insulated cable with FEP sheath material is recommended for use in high-frequency and broad-band techniques, coaxial and microwave techniques, high information velocity with exact information transmission at the same time, chemical industry, furnace construction, brick works, and heating applicances.

Outstanding features

high resistance against chemicals and solvents
low and high temperature resistance -90/+180°C
good electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics
UL/cUL recognized

Questions about our products?

Construction

Conductor	tinned copper strands acc. to ASTM B 286
Insulation	FEP, 6YI1 acc. to VDE 0207-6
Colour code	with reference to DIN 47100
Stranding	in layers
Sheath material	FEP, 6YM1 acc. to VDE 0207-6
Sheath colour	white (RAL 1013)

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

FEP, 6YI1 acc. to VDE 0207-6

Colour code

with reference to DIN 47100

Stranding

in layers

Sheath material

FEP, 6YM1 acc. to VDE 0207-6

Sheath colour

white (RAL 1013)

Technical data

Peak operating voltage	max. 375 V
Voltage UL/cUL	600 V
Testing voltage	core/core 2000 V
Min. bending radius	7,5 x d
Radiation resistance	1 x 10⁷ cJ/kg
Temperature range	DIN VDE fixed laying: -90/+180°C DIN VDE flexible application: -55/+180°C limited time of use: +200°C UL/cUL: up to +150 °C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2
Oil resistance	very good acc. to UL standard 758, at 80 °C after 80 days
Chem. resistance	very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds – FEP has a slightly better resistance than ETFE
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 375 V

Voltage UL/cUL

600 V

Testing voltage

core/core 2000 V

Min. bending radius

7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -90/+180°C

DIN VDE flexible application: -55/+180°C

limited time of use: +200°C

UL/cUL: up to +150 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2

Oil resistance

very good acc. to UL standard 758, at 80 °C after 80 days

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds – FEP has a slightly better resistance than ETFE

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	Dimension	nominal single wire-ø	Approx. outer-ø	Copper figure	Cable weight ≈
L38010228	2 x AWG 28/7	0,127 mm	2,0 mm	1,8 kg/km	6,3 kg/km	Send inquiry
L38010226	2 x AWG 26/7	0,160 mm	2,2 mm	2,8 kg/km	7,9 kg/km	Send inquiry
L38010224	2 x AWG 24/7	0,203 mm	2,5 mm	4,2 kg/km	10,3 kg/km	Send inquiry
L38010222	2 x AWG 22/7	0,254 mm	2,8 mm	6,8 kg/km	13,6 kg/km	Send inquiry
L38010220	2 x AWG 20/7	0,320 mm	3,2 mm	10,8 kg/km	18,6 kg/km	Send inquiry
L38010328	3 x AWG 28/7	0,127 mm	2,1 mm	2,7 kg/km	7,9 kg/km	Send inquiry
L38010326	3 x AWG 26/7	0,160 mm	2,4 mm	4,2 kg/km	9,9 kg/km	Send inquiry
L38010324	3 x AWG 24/7	0,203 mm	2,6 mm	6,3 kg/km	13,4 kg/km	Send inquiry
L38010322	3 x AWG 22/7	0,254 mm	2,9 mm	10,2 kg/km	18,0 kg/km	Send inquiry
L38010320	3 x AWG 20/7	0,320 mm	3,4 mm	16,2 kg/km	25,5 kg/km	Send inquiry
L38010428	4 x AWG 28/7	0,127 mm	2,3 mm	3,6 kg/km	9,7 kg/km	Send inquiry
L38010426	4 x AWG 26/7	0,160 mm	2,5 mm	5,6 kg/km	12,7 kg/km	Send inquiry
L38010424	4 x AWG 24/7	0,203 mm	2,9 mm	8,4 kg/km	16,9 kg/km	Send inquiry
L38010422	4 x AWG 22/7	0,254 mm	3,2 mm	13,6 kg/km	22,8 kg/km	Send inquiry
L38010420	4 x AWG 20/7	0,320 mm	3,7 mm	21,6 kg/km	32,2 kg/km	Send inquiry
L38010528	5 x AWG 28/7	0,127 mm	2,5 mm	4,5 kg/km	11,7 kg/km	Send inquiry
L38010526	5 x AWG 26/7	0,160 mm	2,8 mm	7,0 kg/km	15,2 kg/km	Send inquiry
L38010524	5 x AWG 24/7	0,203 mm	3,1 mm	10,5 kg/km	21,0 kg/km	Send inquiry
L38010522	5 x AWG 22/7	0,254 mm	3,5 mm	17,0 kg/km	28,3 kg/km	Send inquiry
L38010520	5 x AWG 20/7	0,320 mm	4,4 mm	27,0 kg/km	42,4 kg/km	Send inquiry
L38010728	7 x AWG 28/7	0,127 mm	2,7 mm	6,3 kg/km	14,8 kg/km	Send inquiry
L38010726	7 x AWG 26/7	0,160 mm	3,0 mm	9,8 kg/km	19,4 kg/km	Send inquiry
L38010724	7 x AWG 24/7	0,203 mm	3,4 mm	14,7 kg/km	26,6 kg/km	Send inquiry
L38010722	7 x AWG 22/7	0,254 mm	4,1 mm	23,8 kg/km	38,6 kg/km	Send inquiry
L38010720	7 x AWG 20/7	0,320 mm	4,5 mm	37,8 kg/km	54,1 kg/km	Send inquiry
L38011028	10 x AWG 28/7	0,127 mm	3,4 mm	9,0 kg/km	20,4 kg/km	Send inquiry
L38011026	10 x AWG 26/7	0,160 mm	4,0 mm	14,0 kg/km	27,4 kg/km	Send inquiry
L38011024	10 x AWG 24/7	0,203 mm	4,5 mm	21,0 kg/km	39,0 kg/km	Send inquiry
L38011022	10 x AWG 22/7	0,254 mm	5,1 mm	34,0 kg/km	55,2 kg/km	Send inquiry
L38011020	10 x AWG 20/7	0,320 mm	5,9 mm	54,0 kg/km	78,3 kg/km	Send inquiry
L38011228	12 x AWG 28/7	0,127 mm	3,5 mm	10,8 kg/km	23,4 kg/km	Send inquiry
L38011226	12 x AWG 26/7	0,160 mm	4,0 mm	16,8 kg/km	32,6 kg/km	Send inquiry
L38011224	12 x AWG 24/7	0,203 mm	4,7 mm	25,2 kg/km	45,3 kg/km	Send inquiry
L38011222	12 x AWG 22/7	0,254 mm	5,3 mm	40,8 kg/km	64,2 kg/km	Send inquiry
L38011220	12 x AWG 20/7	0,320 mm	6,3 mm	64,8 kg/km	92,0 kg/km	Send inquiry
L38010624	6 x AWG 24/7	0,203 mm	3,5 mm	12,6 kg/km	25,0 kg/km	Send inquiry
