TD 838 CF TP

FEP data cable, twisted pairs with extended temperature range and overall copper screen

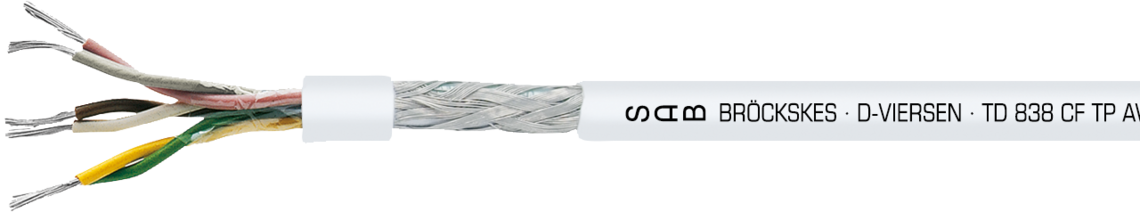

Marking example: SAB BRÖCKSKES · D-VIERSEN · TD 838 CF TP AWG 26/3pr cULus AWM Style 21618 I/II A/B 150°C 600V FT1 FT2 3838-0326 CE

Questions about our products?

Application

The TD 838 CF TP twisted-pair FEP data cable is designed for demanding industrial applications and operates reliably in a temperature range from -90 °C to +180 °C. It offers excellent resistance to acids, bases, halogens, chlorinated solvents, and organic and inorganic compounds. The cable features outstanding electrical insulation with low, nearly frequency-independent dielectric values and exceptional flexibility even at low temperatures. Typical applications include the chemical industry, heating equipment, and coaxial or microwave technology. Additionally, the cable is cULus-approved, meeting high safety and quality standards for industrial use.

Outstanding features

excellent resistance against chemicals and solvents
excellent temperature resistance and flexibility at low temperatures
excellent electrical insulating characteristics with low, nearly frequency-independent dielectric characteristics
cULus recognized

Questions about our products?

Construction

Conductor	tinned copper strands acc. to ASTM B 286
Insulation	FEP, 6YI1 acc. to VDE 0207-6
Colour code	with reference to DIN 47100
Stranding	cores twisted to pairs, pairs together in specially adjusted layering
Wrapping	foil
Screen	tinned copper braiding
Sheath material	FEP, 6YM1 acc. to VDE 0207-6
Sheath colour	white (RAL 1013)

Conductor

tinned copper strands acc. to ASTM B 286

Insulation

FEP, 6YI1 acc. to VDE 0207-6

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs together in specially adjusted layering

Wrapping

foil

Screen

tinned copper braiding

Sheath material

FEP, 6YM1 acc. to VDE 0207-6

Sheath colour

white (RAL 1013)

Technical data

Peak operating voltage	max. 375 V
Voltage cULus	600 V
Testing voltage	core/core 2000 V core/screen 2000 V
Min. bending radius	7,5 x d
Radiation resistance	1 x 10⁷ cJ/kg
Temperature range	DIN VDE fixed laying: -90/+180 °C DIN VDE flexible application: -55/+180 °C DIN VDE limited time of use: +200 °C' cULus: up to +150 °C
Fire performance	flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2
Oil resistance	very good acc. to UL standard 758, at 80 °C after 80 days
Chem. resistance	very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 375 V

Voltage cULus

600 V

Testing voltage

core/core 2000 V

core/screen 2000 V

Min. bending radius

7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -90/+180 °C

DIN VDE flexible application: -55/+180 °C

DIN VDE limited time of use: +200 °C'

cULus: up to +150 °C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2, UL FT1, FT2

Oil resistance

very good acc. to UL standard 758, at 80 °C after 80 days

Chem. resistance

very good against acids, halogens, bases, chlorinated solvents as well as organic and inorganic compounds

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	Dimension	nominal single wire-ø	Approx. outer-ø	Copper figure	Cable weight ≈
L38380228	2 x 2 x AWG 28/7	0,127 mm	3,2 mm	13,9 kg/km	18,7 kg/km	Send inquiry
L38380226	2 x 2 x AWG 26/7	0,160 mm	3,5 mm	16,0 kg/km	22,0 kg/km	Send inquiry
L38380224	2 x 2 x AWG 24/7	0,203 mm	4,0 mm	22,3 kg/km	30,1 kg/km	Send inquiry
L38380222	2 x 2 x AWG 22/7	0,254 mm	4,6 mm	27,7 kg/km	37,1 kg/km	Send inquiry
L38380220	2 x 2 x AWG 20/7	0,320 mm	5,1 mm	37,6 kg/km	49,5 kg/km	Send inquiry
L38380328	3 x 2 x AWG 28/7	0,127 mm	3,6 mm	19,2 kg/km	24,8 kg/km	Send inquiry
L38380326	3 x 2 x AWG 26/7	0,160 mm	4,1 mm	22,3 kg/km	30,7 kg/km	Send inquiry
L38380324	3 x 2 x AWG 24/7	0,203 mm	4,5 mm	26,6 kg/km	37,3 kg/km	Send inquiry
L38380322	3 x 2 x AWG 22/7	0,254 mm	5,2 mm	36,4 kg/km	50,0 kg/km	Send inquiry
L38380320	3 x 2 x AWG 20/7	0,320 mm	5,9 mm	51,9 kg/km	66,8 kg/km	Send inquiry
L38380428	4 x 2 x AWG 28/7	0,127 mm	4,2 mm	21,1 kg/km	30,3 kg/km	Send inquiry
L38380426	4 x 2 x AWG 26/7	0,160 mm	4,7 mm	25,3 kg/km	36,3 kg/km	Send inquiry
L38380424	4 x 2 x AWG 24/7	0,203 mm	5,5 mm	32,6 kg/km	48,6 kg/km	Send inquiry
L38380422	4 x 2 x AWG 22/7	0,254 mm	5,9 mm	46,7 kg/km	62,7 kg/km	Send inquiry
L38380420	4 x 2 x AWG 20/7	0,320 mm	6,8 mm	66,8 kg/km	84,8 kg/km	Send inquiry
L38380418	4 x 2 x AWG 18/19	0,254 mm	8,1 mm	100,3 kg/km	124,2 kg/km	Send inquiry
L38380528	5 x 2 x AWG 28/7	0,127 mm	4,6 mm	24,8 kg/km	36,5 kg/km	Send inquiry
L38380526	5 x 2 x AWG 26/7	0,160 mm	5,2 mm	30,0 kg/km	43,9 kg/km	Send inquiry
L38380524	5 x 2 x AWG 24/7	0,203 mm	5,8 mm	38,7 kg/km	50,1 kg/km	Send inquiry
L38380522	5 x 2 x AWG 22/7	0,254 mm	6,5 mm	55,3 kg/km	76,2 kg/km	Send inquiry
L38380520	5 x 2 x AWG 20/7	0,320 mm	7,5 mm	77,5 kg/km	104,5 kg/km	Send inquiry
L38380628	6 x 2 x AWG 28/7	0,127 mm	4,7 mm	26,7 kg/km	40,1 kg/km	Send inquiry
L38380626	6 x 2 x AWG 26/7	0,160 mm	5,3 mm	34,3 kg/km	52,5 kg/km	Send inquiry
L38380624	6 x 2 x AWG 24/7	0,203 mm	5,9 mm	44,7 kg/km	66,6 kg/km	Send inquiry
L38380622	6 x 2 x AWG 22/7	0,254 mm	6,9 mm	65,2 kg/km	90,0 kg/km	Send inquiry
L38380620	6 x 2 x AWG 20/7	0,320 mm	7,8 mm	92,6 kg/km	123,7 kg/km	Send inquiry
