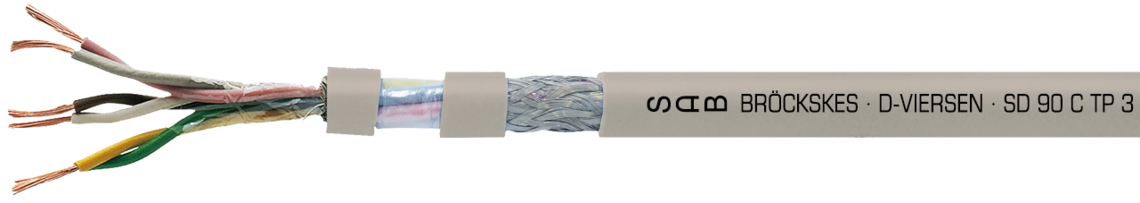

SD 90 C TP
Continuously flexible paired PVC/PUR data cable with coloured cores and overall copper screen
Marking example: SAB BRÖCKSKES · D-VIERSEN · SD 90 C TP 3 x 2 x 0,5 mm² CE
Application
The twisted pair cable is a continuously flexible PUR data cable with overall copper screen and good chemical resistance. This cable with increased efficiency due to the permanent use with millions of bending cycles is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.
Outstanding features
- screened, very good EMC characteristics
- improved abrasion resistance
- high tear resistance
- good chemical resistance
- increased efficiency due to the permanent use with millions of bending cycles
Construction
| Conductor | bare copper strands, extra fine wires |
|---|---|
| Insulation | PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3 |
| Colour code | with reference to DIN 47100 |
| Stranding | cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer |
| Wrapping | non-woven tape |
| Screen | tinned copper braiding |
| Wrapping | non-woven tape |
| Sheath material | PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface |
| Sheath colour | grey (RAL 7032) |
bare copper strands, extra fine wires
PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3
with reference to DIN 47100
cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer
non-woven tape
tinned copper braiding
non-woven tape
PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
grey (RAL 7032)
Technical data
| Peak operating voltage | max. 350 V acc. to VDE 0812 |
|---|---|
| Testing voltage | core/core 1500 V core/screen 1200 V |
| Min. bending radius | continuously flexible: 7,5 x d |
| Radiation resistance | 5 x 10⁷ cJ/kg |
| Temperature range | fixed laying: -30/+70°C flexible application: -5/+70°C |
| Oil resistance | very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc.. |
| Flexibility | very good |
| Absence of harmful substances | acc. to RoHS directive of the European Union |
max. 350 V acc. to VDE 0812
core/core 1500 V
core/screen 1200 V
continuously flexible: 7,5 x d
5 x 10⁷ cJ/kg
fixed laying: -30/+70°C
flexible application: -5/+70°C
very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
good against acids, alkalines, solvents, hydraulic liquids etc..
very good
acc. to RoHS directive of the European Union
Dimensions
| item no. |
No. of pairs x cross section n x 2 x mm² |
Largest single wire-ø | Outer-ø ± 10% | Copper figure | Cable weight ≈ | |
|---|---|---|---|---|---|---|
| L07710214 | 2 x 2 x 0,14 mm² | 0,11 mm | 4,9 mm | 15,9 kg/km | 31 kg/km | Send inquiry |
| L07710314 | 3 x 2 x 0,14 mm² | 0,11 mm | 5,4 mm | 20,3 kg/km | 37 kg/km | Send inquiry |
| L07710414 | 4 x 2 x 0,14 mm² | 0,11 mm | 6 mm | 24,7 kg/km | 44 kg/km | Send inquiry |
| L07710514 | 5 x 2 x 0,14 mm² | 0,11 mm | 6,5 mm | 30,3 kg/km | 54 kg/km | Send inquiry |
| L07710714 | 7 x 2 x 0,14 mm² | 0,11 mm | 7 mm | 35,9 kg/km | 67 kg/km | Send inquiry |
| L07711814 | 18 x 2 x 0,14 mm² | 0,11 mm | 10,4 mm | 89,7 kg/km | 143 kg/km | Send inquiry |
| L07712514 | 25 x 2 x 0,14 mm² | 0,11 mm | 12,1 mm | 114,4 kg/km | 186 kg/km | Send inquiry |
| L07710225 | 2 x 2 x 0,25 mm² | 0,11 mm | 5,4 mm | 21,8 kg/km | 40 kg/km | Send inquiry |
| L07710325 | 3 x 2 x 0,25 mm² | 0,11 mm | 5,9 mm | 28,3 kg/km | 48 kg/km | Send inquiry |
| L07710425 | 4 x 2 x 0,25 mm² | 0,11 mm | 6,7 mm | 36,2 kg/km | 59 kg/km | Send inquiry |
| L07710525 | 5 x 2 x 0,25 mm² | 0,11 mm | 7,2 mm | 42,7 kg/km | 70 kg/km | Send inquiry |
| L07710725 | 7 x 2 x 0,25 mm² | 0,11 mm | 7,6 mm | 54,1 kg/km | 90 kg/km | Send inquiry |
| L07711825 | 18 x 2 x 0,25 mm² | 0,11 mm | 12 mm | 133,5 kg/km | 204 kg/km | Send inquiry |
| L07712525 | 25 x 2 x 0,25 mm² | 0,11 mm | 13,9 mm | 177,2 kg/km | 269 kg/km | Send inquiry |
| L07710234 | 2 x 2 x 0,34 mm² | 0,11 mm | 6,3 mm | 28,4 kg/km | 53 kg/km | Send inquiry |
| L07710334 | 3 x 2 x 0,34 mm² | 0,11 mm | 6,9 mm | 36,6 kg/km | 63 kg/km | Send inquiry |
| L07710434 | 4 x 2 x 0,34 mm² | 0,11 mm | 7,9 mm | 46,7 kg/km | 78 kg/km | Send inquiry |
| L07710534 | 5 x 2 x 0,34 mm² | 0,11 mm | 8,8 mm | 55,4 kg/km | 97 kg/km | Send inquiry |
| L07710734 | 7 x 2 x 0,34 mm² | 0,11 mm | 9,4 mm | 70,9 kg/km | 127 kg/km | Send inquiry |
| L07711834 | 18 x 2 x 0,34 mm² | 0,11 mm | 14,8 mm | 175,2 kg/km | 287 kg/km | Send inquiry |
| L07712534 | 25 x 2 x 0,34 mm² | 0,11 mm | 17,1 mm | 258,6 kg/km | 391 kg/km | Send inquiry |
| L07710250 | 2 x 2 x 0,50 mm² | 0,16 mm | 6,9 mm | 36,2 kg/km | 65 kg/km | Send inquiry |
| L07710350 | 3 x 2 x 0,50 mm² | 0,16 mm | 7,6 mm | 49,3 kg/km | 81 kg/km | Send inquiry |
| L07710450 | 4 x 2 x 0,50 mm² | 0,16 mm | 8,9 mm | 61,2 kg/km | 101 kg/km | Send inquiry |
| L07710550 | 5 x 2 x 0,50 mm² | 0,16 mm | 9,7 mm | 73,3 kg/km | 123 kg/km | Send inquiry |
| L07710750 | 7 x 2 x 0,50 mm² | 0,16 mm | 11 mm | 108,6 kg/km | 180 kg/km | Send inquiry |
| L07711850 | 18 x 2 x 0,50 mm² | 0,16 mm | 16,8 mm | 267,8 kg/km | 399 kg/km | Send inquiry |
| L07712550 | 25 x 2 x 0,50 mm² | 0,16 mm | 19,2 mm | 347,3 kg/km | 509 kg/km | Send inquiry |
| L07710275 | 2 x 2 x 0,75 mm² | 0,16 mm | 7,8 mm | 49,3 kg/km | 87 kg/km | Send inquiry |
| L07710375 | 3 x 2 x 0,75 mm² | 0,16 mm | 8,8 mm | 65,9 kg/km | 110 kg/km | Send inquiry |
| L07710475 | 4 x 2 x 0,75 mm² | 0,16 mm | 10,4 mm | 98,9 kg/km | 148 kg/km | Send inquiry |
| L07710575 | 5 x 2 x 0,75 mm² | 0,16 mm | 11,7 mm | 118,9 kg/km | 188 kg/km | Send inquiry |
| L07710775 | 7 x 2 x 0,75 mm² | 0,16 mm | 12,6 mm | 152,4 kg/km | 246 kg/km | Send inquiry |
| L07711875 | 18 x 2 x 0,75 mm² | 0,16 mm | 19,4 mm | 366,8 kg/km | 545 kg/km | Send inquiry |
| L07712575 | 25 x 2 x 0,75 mm² | 0,16 mm | 22,4 mm | 481,4 kg/km | 709 kg/km | Send inquiry |
n x 2 x mm²
wire-ø
Other dimensions and colours are possible on request.
