SABIX® A 226 C FRNC C1

Halogen-free control cable with numbered cores, improved fire performance, extended temperature range, overall copper screen, and acc. to NF C32-070 C1

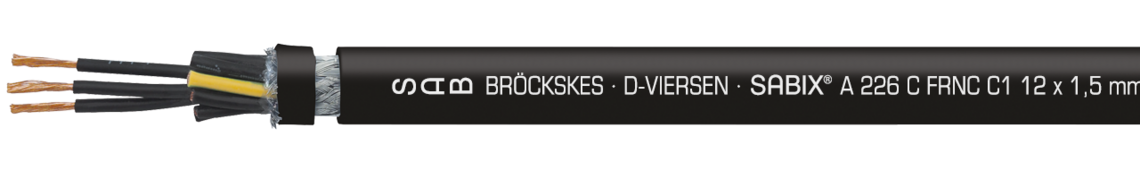

Marking for SABIX® A 226 C FRNC C1 62261215:
SAB BRÖCKSKES · D-VIERSEN · SABIX® A 226 C FRNC C1 12 x 1,5 mm² CE

Marking for SABIX® A 226 C FRNC C1 62261215: SAB BRÖCKSKES · D-VIERSEN · SABIX® A 226 C FRNC C1 12 x 1,5 mm² CE

Application

SABIX® A 226 C FRNC C1 is a halogen-free control cable with overall copper screen, extended temperature range, numbered cores, and improved fire performance. This shielded control cable is recommended for use in automation systems, car manufacturing industry, machine construction, and railway technologies.

Outstanding features

  • screened, good EMC characteristics
  • halogen-free
  • no flame propagation
  • flame retardant and self-extinguishing
  • NF C32-070 C1

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 5

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334, green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

foil

Screen

tinned copper braiding

Sheath material

SABIX®

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 450/750 V

Testing voltage

core/core 2500 V

core/screen 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -30/+90 °C

flexible application: -20/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 450/750 V

Testing voltage

core/core 2500 V

core/screen 2500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -30/+90 °C

flexible application: -20/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5% Copper figure Cable weight ≈
L622602052 x 0,50 mm²0,21 mm6,5 mm27,2 kg/km56 kg/km Send inquiry
L622603073 x 0,75 mm²0,21 mm7,7 mm42,9 kg/km86 kg/km Send inquiry
L622604074 x 0,75 mm²0,21 mm8,3 mm52,5 kg/km102 kg/km Send inquiry
L622605075 x 0,75 mm²0,21 mm9,2 mm62,2 kg/km126 kg/km Send inquiry
L622607077 x 0,75 mm²0,21 mm9,9 mm79,4 kg/km154 kg/km Send inquiry
L6226120712 x 0,75 mm²0,21 mm13,5 mm146,1 kg/km272 kg/km Send inquiry
L6226180718 x 0,75 mm²0,21 mm15,9 mm227,2 kg/km396 kg/km Send inquiry
L622603103 x 1,00 mm²0,21 mm7,9 mm50,2 kg/km93 kg/km Send inquiry
L622604104 x 1,00 mm²0,21 mm8,5 mm62,2 kg/km112 kg/km Send inquiry
L622605105 x 1,00 mm²0,21 mm9,5 mm74,3 kg/km139 kg/km Send inquiry
L6226161016 x 1,00 mm²0,21 mm15,7 mm251 kg/km406 kg/km Send inquiry
L6226181018 x 1,00 mm²0,21 mm16,6 mm270,9 kg/km450 kg/km Send inquiry
L622603153 x 1,50 mm²0,26 mm8,5 mm67 kg/km113 kg/km Send inquiry
L622604154 x 1,50 mm²0,26 mm9,4 mm83,9 kg/km142 kg/km Send inquiry
L622605155 x 1,50 mm²0,26 mm10,3 mm101,2 kg/km170 kg/km Send inquiry
L622607157 x 1,50 mm²0,26 mm11,5 mm154,7 kg/km234 kg/km Send inquiry
L6226121512 x 1,50 mm²0,26 mm15,5 mm270 kg/km403 kg/km Send inquiry
L6226181518 x 1,50 mm²0,26 mm18,3 mm370,1 kg/km567 kg/km Send inquiry
L622603253 x 2,50 mm²0,26 mm10 mm101,1 kg/km160 kg/km Send inquiry
L622604254 x 2,50 mm²0,26 mm11,3 mm143,8 kg/km236 kg/km Send inquiry
L622605255 x 2,50 mm²0,26 mm12,5 mm174,4 kg/km265 kg/km Send inquiry
L622603403 x 4,00 mm²0,31 mm11,7 mm169,2 kg/km236 kg/km Send inquiry
L622604404 x 4,00 mm²0,31 mm12,9 mm213,1 kg/km297 kg/km Send inquiry
L622605405 x 4,00 mm²0,31 mm14,5 mm277,7 kg/km380 kg/km Send inquiry
L622604604 x 6,00 mm²0,31 mm15,2 mm327,3 kg/km442 kg/km Send inquiry
L622605605 x 6,00 mm²0,31 mm16,8 mm386,4 kg/km522 kg/km Send inquiry
L622607607 x 6,00 mm²0,31 mm18,4 mm514,3 kg/km677 kg/km Send inquiry
L622604614 x 10,0 mm²0,41 mm18,9 mm495,7 kg/km682 kg/km Send inquiry
L622605615 x 10,0 mm²0,41 mm21,2 mm605,9 kg/km847 kg/km Send inquiry
L622603623 x 16,0 mm²0,41 mm20,7 mm585,9 kg/km787 kg/km Send inquiry
L622605625 x 16,0 mm²0,41 mm25,6 mm936,8 kg/km1246 kg/km Send inquiry
L622605635 x 25,0 mm²0,41 mm31,3 mm1594,7 kg/km1938 kg/km Send inquiry
L622605645 x 35,0 mm²0,41 mm34,9 mm1901,3 kg/km2449 kg/km Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
Outer-ø ± 5%
Copper figure
Cable weight ≈
L62260205
2 x 0,50 mm²
0,21 mm
6,5 mm
27,2 kg/km
56 kg/km
L62260307
3 x 0,75 mm²
0,21 mm
7,7 mm
42,9 kg/km
86 kg/km
L62260407
4 x 0,75 mm²
0,21 mm
8,3 mm
52,5 kg/km
102 kg/km
L62260507
5 x 0,75 mm²
0,21 mm
9,2 mm
62,2 kg/km
126 kg/km
L62260707
7 x 0,75 mm²
0,21 mm
9,9 mm
79,4 kg/km
154 kg/km
L62261207
12 x 0,75 mm²
0,21 mm
13,5 mm
146,1 kg/km
272 kg/km
L62261807
18 x 0,75 mm²
0,21 mm
15,9 mm
227,2 kg/km
396 kg/km
L62260310
3 x 1,00 mm²
0,21 mm
7,9 mm
50,2 kg/km
93 kg/km
L62260410
4 x 1,00 mm²
0,21 mm
8,5 mm
62,2 kg/km
112 kg/km
L62260510
5 x 1,00 mm²
0,21 mm
9,5 mm
74,3 kg/km
139 kg/km
L62261610
16 x 1,00 mm²
0,21 mm
15,7 mm
251 kg/km
406 kg/km
L62261810
18 x 1,00 mm²
0,21 mm
16,6 mm
270,9 kg/km
450 kg/km
L62260315
3 x 1,50 mm²
0,26 mm
8,5 mm
67 kg/km
113 kg/km
L62260415
4 x 1,50 mm²
0,26 mm
9,4 mm
83,9 kg/km
142 kg/km
L62260515
5 x 1,50 mm²
0,26 mm
10,3 mm
101,2 kg/km
170 kg/km
L62260715
7 x 1,50 mm²
0,26 mm
11,5 mm
154,7 kg/km
234 kg/km
L62261215
12 x 1,50 mm²
0,26 mm
15,5 mm
270 kg/km
403 kg/km
L62261815
18 x 1,50 mm²
0,26 mm
18,3 mm
370,1 kg/km
567 kg/km
L62260325
3 x 2,50 mm²
0,26 mm
10 mm
101,1 kg/km
160 kg/km
L62260425
4 x 2,50 mm²
0,26 mm
11,3 mm
143,8 kg/km
236 kg/km
L62260525
5 x 2,50 mm²
0,26 mm
12,5 mm
174,4 kg/km
265 kg/km
L62260340
3 x 4,00 mm²
0,31 mm
11,7 mm
169,2 kg/km
236 kg/km
L62260440
4 x 4,00 mm²
0,31 mm
12,9 mm
213,1 kg/km
297 kg/km
L62260540
5 x 4,00 mm²
0,31 mm
14,5 mm
277,7 kg/km
380 kg/km
L62260460
4 x 6,00 mm²
0,31 mm
15,2 mm
327,3 kg/km
442 kg/km
L62260560
5 x 6,00 mm²
0,31 mm
16,8 mm
386,4 kg/km
522 kg/km
L62260760
7 x 6,00 mm²
0,31 mm
18,4 mm
514,3 kg/km
677 kg/km
L62260461
4 x 10,0 mm²
0,41 mm
18,9 mm
495,7 kg/km
682 kg/km
L62260561
5 x 10,0 mm²
0,41 mm
21,2 mm
605,9 kg/km
847 kg/km
L62260362
3 x 16,0 mm²
0,41 mm
20,7 mm
585,9 kg/km
787 kg/km
L62260562
5 x 16,0 mm²
0,41 mm
25,6 mm
936,8 kg/km
1246 kg/km
L62260563
5 x 25,0 mm²
0,41 mm
31,3 mm
1594,7 kg/km
1938 kg/km
L62260564
5 x 35,0 mm²
0,41 mm
34,9 mm
1901,3 kg/km
2449 kg/km

Other dimensions and colours are possible on request.
