SABIX® D 305 FRNC

Flexible data cable with improved fire performance

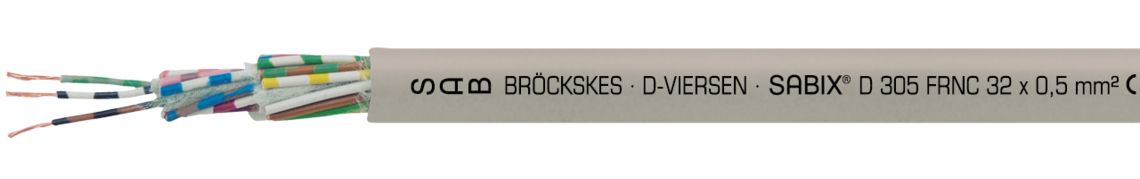

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 305 FRNC 32 x 0,5 mm² CE

Marking example: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 305 FRNC 32 x 0,5 mm² CE

Questions about our products?

Application

SABIX® D 305 FRNC is a halogen-free and flexible data cable with improved fire performance which is has an easy stripping and anticapacitance. This flame retardant cable is recommended for use in communication technologies. The abbreviation FRNC stands for Flame Retardant Non-Corrosive.

Outstanding features

  • halogen-free
  • FRNC (Flame Retardant Non-Corrosive)
  • no flame propagation
  • flame retardant and self-extinguishing
  • easy stripping
  • anticapacitance
  • flexible
Questions about our products?

Construction

Conductor

bare copper strands with reference to VDE 0812

Insulation

SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands with reference to VDE 0812

Insulation

SABIX®

Colour code

with reference to DIN 47100

Stranding

in layers

Sheath material

SABIX®

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

< 0,25 mm² = max. 350 V

> 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+85 °C

flexible application: -30/+85 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

< 0,25 mm² = max. 350 V

> 0,25 mm² = max. 500 V

Testing voltage

core/core 1500 V

Min. bending radius

fixed laying: 5 x d

flexible application: 10 x d

Temperature range

fixed laying: -40/+85 °C

flexible application: -30/+85 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Flame propagation

no flame propagation
acc. to IEC 60332-3-24 + VDE 0482-332-3-24
resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Flexibility

good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section 		Outer-ø
± 10% 		Copper figure Cable weight ≈
L630502142 x 0,14 mm²3,3 mm2,7 kg/km16 kg/km Send inquiry
L630503143 x 0,14 mm²3,5 mm4 kg/km18 kg/km Send inquiry
L630504144 x 0,14 mm²3,7 mm5,4 kg/km20 kg/km Send inquiry
L630505145 x 0,14 mm²3,9 mm6,7 kg/km22 kg/km Send inquiry
L630507147 x 0,14 mm²4,3 mm9,4 kg/km28 kg/km Send inquiry
L630508148 x 0,14 mm²5,2 mm10,8 kg/km35 kg/km Send inquiry
L6305121412 x 0,14 mm²5,5 mm16,1 kg/km42 kg/km Send inquiry
L6305141414 x 0,14 mm²5,7 mm18,8 kg/km47 kg/km Send inquiry
L6305161416 x 0,14 mm²6,2 mm21,5 kg/km55 kg/km Send inquiry
L6305181418 x 0,14 mm²6,5 mm24,2 kg/km61 kg/km Send inquiry
L6305211421 x 0,14 mm²7,1 mm28,2 kg/km72 kg/km Send inquiry
L6305241424 x 0,14 mm²7,5 mm32,3 kg/km80 kg/km Send inquiry
L6305271427 x 0,14 mm²8,1 mm36,3 kg/km91 kg/km Send inquiry
L6305301430 x 0,14 mm²8,3 mm40,3 kg/km97 kg/km Send inquiry
L6305321432 x 0,14 mm²8,6 mm43 kg/km103 kg/km Send inquiry
L6305361436 x 0,14 mm²8,9 mm48,4 kg/km113 kg/km Send inquiry
L6305401440 x 0,14 mm²9,5 mm53,8 kg/km123 kg/km Send inquiry
L6305441444 x 0,14 mm²9,9 mm59,1 kg/km133 kg/km Send inquiry
L6305501450 x 0,14 mm²10,3 mm67,2 kg/km142 kg/km Send inquiry
L6305611461 x 0,14 mm²10,9 mm82 kg/km165 kg/km Send inquiry
L630502252 x 0,25 mm²3,6 mm4,8 kg/km19 kg/km Send inquiry
L630503253 x 0,25 mm²3,8 mm7,2 kg/km23 kg/km Send inquiry
L630504254 x 0,25 mm²4,1 mm9,6 kg/km26 kg/km Send inquiry
L630505255 x 0,25 mm²4,4 mm12 kg/km31 kg/km Send inquiry
L630507257 x 0,25 mm²4,8 mm16,8 kg/km38 kg/km Send inquiry
L630508258 x 0,25 mm²5,4 mm19,2 kg/km45 kg/km Send inquiry
L6305122512 x 0,25 mm²6,3 mm28,8 kg/km61 kg/km Send inquiry
L6305142514 x 0,25 mm²6,6 mm33,6 kg/km69 kg/km Send inquiry
L6305162516 x 0,25 mm²6,9 mm38,4 kg/km77 kg/km Send inquiry
L6305182518 x 0,25 mm²7,3 mm43,2 kg/km85 kg/km Send inquiry
L6305212521 x 0,25 mm²8,3 mm50,4 kg/km106 kg/km Send inquiry
L6305242524 x 0,25 mm²8,4 mm57,6 kg/km110 kg/km Send inquiry
L6305272527 x 0,25 mm²8,6 mm64,8 kg/km114 kg/km Send inquiry
L6305302530 x 0,25 mm²8,9 mm72 kg/km125 kg/km Send inquiry
L6305322532 x 0,25 mm²9,2 mm76,8 kg/km132 kg/km Send inquiry
L6305362536 x 0,25 mm²10 mm86,4 kg/km156 kg/km Send inquiry
L6305402540 x 0,25 mm²10,6 mm96 kg/km173 kg/km Send inquiry
L6305442544 x 0,25 mm²11,1 mm105,6 kg/km184 kg/km Send inquiry
L6305502550 x 0,25 mm²11,6 mm120 kg/km204 kg/km Send inquiry
L6305612561 x 0,25 mm²12,3 mm146,4 kg/km241 kg/km Send inquiry
L630502342 x 0,34 mm²4,2 mm6,5 kg/km26 kg/km Send inquiry
L630503343 x 0,34 mm²4,4 mm9,8 kg/km30 kg/km Send inquiry
L630504344 x 0,34 mm²4,6 mm13,1 kg/km36 kg/km Send inquiry
L630505345 x 0,34 mm²5,2 mm16,3 kg/km43 kg/km Send inquiry
L630507347 x 0,34 mm²5,7 mm22,8 kg/km53 kg/km Send inquiry
L630508348 x 0,34 mm²6,7 mm26,1 kg/km66 kg/km Send inquiry
L6305123412 x 0,34 mm²7,5 mm39,2 kg/km85 kg/km Send inquiry
L6305143414 x 0,34 mm²8,3 mm45,7 kg/km104 kg/km Send inquiry
L6305163416 x 0,34 mm²8,7 mm52,2 kg/km116 kg/km Send inquiry
L6305183418 x 0,34 mm²9,2 mm58,8 kg/km128 kg/km Send inquiry
L6305213421 x 0,34 mm²10 mm68,5 kg/km146 kg/km Send inquiry
L6305243424 x 0,34 mm²10,6 mm78,3 kg/km157 kg/km Send inquiry
L6305273427 x 0,34 mm²10,8 mm88,1 kg/km172 kg/km Send inquiry
L6305303430 x 0,34 mm²11,2 mm97,9 kg/km187 kg/km Send inquiry
L6305323432 x 0,34 mm²11,6 mm104,4 kg/km199 kg/km Send inquiry
L6305363436 x 0,34 mm²12,1 mm117,5 kg/km220 kg/km Send inquiry
L6305403440 x 0,34 mm²12,9 mm130,6 kg/km244 kg/km Send inquiry
L6305443444 x 0,34 mm²13,5 mm143,6 kg/km261 kg/km Send inquiry
L6305503450 x 0,34 mm²14,5 mm163,2 kg/km304 kg/km Send inquiry
L6305613461 x 0,34 mm²15,4 mm199,1 kg/km358 kg/km Send inquiry
L630502502 x 0,50 mm²4,5 mm9,6 kg/km31 kg/km Send inquiry
L630503503 x 0,50 mm²4,7 mm14,4 kg/km36 kg/km Send inquiry
L630504504 x 0,50 mm²5,1 mm19,2 kg/km43 kg/km Send inquiry
L630505505 x 0,50 mm²5,6 mm24 kg/km51 kg/km Send inquiry
L630507507 x 0,50 mm²6,3 mm33,6 kg/km67 kg/km Send inquiry
L630508508 x 0,50 mm²7,3 mm38,4 kg/km82 kg/km Send inquiry
L6305125012 x 0,50 mm²8,5 mm57,6 kg/km113 kg/km Send inquiry
L6305145014 x 0,50 mm²8,9 mm67,2 kg/km127 kg/km Send inquiry
L6305165016 x 0,50 mm²9,4 mm76,8 kg/km142 kg/km Send inquiry
L6305185018 x 0,50 mm²9,9 mm86,4 kg/km157 kg/km Send inquiry
L6305215021 x 0,50 mm²10,9 mm100,8 kg/km180 kg/km Send inquiry
L6305245024 x 0,50 mm²11,5 mm115,2 kg/km195 kg/km Send inquiry
L6305275027 x 0,50 mm²11,7 mm129,6 kg/km213 kg/km Send inquiry
L6305305030 x 0,50 mm²12,1 mm144 kg/km232 kg/km Send inquiry
L6305325032 x 0,50 mm²12,6 mm153,6 kg/km248 kg/km Send inquiry
L6305365036 x 0,50 mm²13,1 mm172,8 kg/km274 kg/km Send inquiry
L6305445044 x 0,50 mm²15,1 mm211,2 kg/km341 kg/km Send inquiry
L6305505050 x 0,50 mm²15,7 mm240 kg/km411 kg/km Send inquiry
L6305615061 x 0,50 mm²16,7 mm292,8 kg/km448 kg/km Send inquiry
L630502752 x 0,75 mm²5,1 mm14,4 kg/km41 kg/km Send inquiry
L630503753 x 0,75 mm²5,4 mm21,6 kg/km49 kg/km Send inquiry
L630504754 x 0,75 mm²6,1 mm28,8 kg/km62 kg/km Send inquiry
L630505755 x 0,75 mm²6,6 mm36 kg/km73 kg/km Send inquiry
L630507757 x 0,75 mm²7,2 mm50,4 kg/km91 kg/km Send inquiry
L630508758 x 0,75 mm²8,7 mm57,6 kg/km119 kg/km Send inquiry
L6305127512 x 0,75 mm²9,8 mm86,4 kg/km153 kg/km Send inquiry
L6305147514 x 0,75 mm²10,3 mm100,8 kg/km170 kg/km Send inquiry
L6305167516 x 0,75 mm²10,8 mm115,2 kg/km192 kg/km Send inquiry
L6305187518 x 0,75 mm²11,4 mm129,6 kg/km213 kg/km Send inquiry
L6305217521 x 0,75 mm²12,5 mm151,2 kg/km248 kg/km Send inquiry
L6305247524 x 0,75 mm²13,3 mm172,8 kg/km270 kg/km Send inquiry
L6305277527 x 0,75 mm²13,6 mm194,4 kg/km297 kg/km Send inquiry
L6305307530 x 0,75 mm²14,5 mm216 kg/km339 kg/km Send inquiry
L6305327532 x 0,75 mm²15 mm230,4 kg/km360 kg/km Send inquiry
L6305367536 x 0,75 mm²15,6 mm259,2 kg/km399 kg/km Send inquiry
L6305407540 x 0,75 mm²16,7 mm288 kg/km443 kg/km Send inquiry
L6305447544 x 0,75 mm²17,5 mm316,8 kg/km475 kg/km Send inquiry
L6305507550 x 0,75 mm²18,3 mm360 kg/km530 kg/km Send inquiry
L6305617561 x 0,75 mm²19,8 mm439,2 kg/km648 kg/km Send inquiry
L630502802 x 1,00 mm²5,3 mm19,2 kg/km47 kg/km Send inquiry
L630503803 x 1,00 mm²5,6 mm28,8 kg/km56 kg/km Send inquiry
L630504804 x 1,00 mm²6,3 mm38,4 kg/km71 kg/km Send inquiry
L630505805 x 1,00 mm²6,9 mm48 kg/km86 kg/km Send inquiry
L630506806 x 1,00 mm²7,5 mm57,6 kg/km100 kg/km Send inquiry
L630507807 x 1,00 mm²7,9 mm67,2 kg/km116 kg/km Send inquiry
L630502852 x 1,50 mm²6,1 mm28,8 kg/km64 kg/km Send inquiry
L630503853 x 1,50 mm²6,4 mm43,2 kg/km77 kg/km Send inquiry
L630504854 x 1,50 mm²7 mm57,6 kg/km94 kg/km Send inquiry
L630505855 x 1,50 mm²8,1 mm72 kg/km122 kg/km Send inquiry
L630506856 x 1,50 mm²8,8 mm86,4 kg/km142 kg/km Send inquiry
L630507857 x 1,50 mm²8,8 mm100,8 kg/km153 kg/km Send inquiry
item no.
No. of cores x
cross section
Outer-ø
± 10%
Copper figure
Cable weight ≈
L63050214
2 x 0,14 mm²
3,3 mm
2,7 kg/km
16 kg/km
L63050314
3 x 0,14 mm²
3,5 mm
4 kg/km
18 kg/km
L63050414
4 x 0,14 mm²
3,7 mm
5,4 kg/km
20 kg/km
L63050514
5 x 0,14 mm²
3,9 mm
6,7 kg/km
22 kg/km
L63050714
7 x 0,14 mm²
4,3 mm
9,4 kg/km
28 kg/km
L63050814
8 x 0,14 mm²
5,2 mm
10,8 kg/km
35 kg/km
L63051214
12 x 0,14 mm²
5,5 mm
16,1 kg/km
42 kg/km
L63051414
14 x 0,14 mm²
5,7 mm
18,8 kg/km
47 kg/km
L63051614
16 x 0,14 mm²
6,2 mm
21,5 kg/km
55 kg/km
L63051814
18 x 0,14 mm²
6,5 mm
24,2 kg/km
61 kg/km
L63052114
21 x 0,14 mm²
7,1 mm
28,2 kg/km
72 kg/km
L63052414
24 x 0,14 mm²
7,5 mm
32,3 kg/km
80 kg/km
L63052714
27 x 0,14 mm²
8,1 mm
36,3 kg/km
91 kg/km
L63053014
30 x 0,14 mm²
8,3 mm
40,3 kg/km
97 kg/km
L63053214
32 x 0,14 mm²
8,6 mm
43 kg/km
103 kg/km
L63053614
36 x 0,14 mm²
8,9 mm
48,4 kg/km
113 kg/km
L63054014
40 x 0,14 mm²
9,5 mm
53,8 kg/km
123 kg/km
L63054414
44 x 0,14 mm²
9,9 mm
59,1 kg/km
133 kg/km
L63055014
50 x 0,14 mm²
10,3 mm
67,2 kg/km
142 kg/km
L63056114
61 x 0,14 mm²
10,9 mm
82 kg/km
165 kg/km
L63050225
2 x 0,25 mm²
3,6 mm
4,8 kg/km
19 kg/km
L63050325
3 x 0,25 mm²
3,8 mm
7,2 kg/km
23 kg/km
L63050425
4 x 0,25 mm²
4,1 mm
9,6 kg/km
26 kg/km
L63050525
5 x 0,25 mm²
4,4 mm
12 kg/km
31 kg/km
L63050725
7 x 0,25 mm²
4,8 mm
16,8 kg/km
38 kg/km
L63050825
8 x 0,25 mm²
5,4 mm
19,2 kg/km
45 kg/km
L63051225
12 x 0,25 mm²
6,3 mm
28,8 kg/km
61 kg/km
L63051425
14 x 0,25 mm²
6,6 mm
33,6 kg/km
69 kg/km
L63051625
16 x 0,25 mm²
6,9 mm
38,4 kg/km
77 kg/km
L63051825
18 x 0,25 mm²
7,3 mm
43,2 kg/km
85 kg/km
L63052125
21 x 0,25 mm²
8,3 mm
50,4 kg/km
106 kg/km
L63052425
24 x 0,25 mm²
8,4 mm
57,6 kg/km
110 kg/km
L63052725
27 x 0,25 mm²
8,6 mm
64,8 kg/km
114 kg/km
L63053025
30 x 0,25 mm²
8,9 mm
72 kg/km
125 kg/km
L63053225
32 x 0,25 mm²
9,2 mm
76,8 kg/km
132 kg/km
L63053625
36 x 0,25 mm²
10 mm
86,4 kg/km
156 kg/km
L63054025
40 x 0,25 mm²
10,6 mm
96 kg/km
173 kg/km
L63054425
44 x 0,25 mm²
11,1 mm
105,6 kg/km
184 kg/km
L63055025
50 x 0,25 mm²
11,6 mm
120 kg/km
204 kg/km
L63056125
61 x 0,25 mm²
12,3 mm
146,4 kg/km
241 kg/km
L63050234
2 x 0,34 mm²
4,2 mm
6,5 kg/km
26 kg/km
L63050334
3 x 0,34 mm²
4,4 mm
9,8 kg/km
30 kg/km
L63050434
4 x 0,34 mm²
4,6 mm
13,1 kg/km
36 kg/km
L63050534
5 x 0,34 mm²
5,2 mm
16,3 kg/km
43 kg/km
L63050734
7 x 0,34 mm²
5,7 mm
22,8 kg/km
53 kg/km
L63050834
8 x 0,34 mm²
6,7 mm
26,1 kg/km
66 kg/km
L63051234
12 x 0,34 mm²
7,5 mm
39,2 kg/km
85 kg/km
L63051434
14 x 0,34 mm²
8,3 mm
45,7 kg/km
104 kg/km
L63051634
16 x 0,34 mm²
8,7 mm
52,2 kg/km
116 kg/km
L63051834
18 x 0,34 mm²
9,2 mm
58,8 kg/km
128 kg/km
L63052134
21 x 0,34 mm²
10 mm
68,5 kg/km
146 kg/km
L63052434
24 x 0,34 mm²
10,6 mm
78,3 kg/km
157 kg/km
L63052734
27 x 0,34 mm²
10,8 mm
88,1 kg/km
172 kg/km
L63053034
30 x 0,34 mm²
11,2 mm
97,9 kg/km
187 kg/km
L63053234
32 x 0,34 mm²
11,6 mm
104,4 kg/km
199 kg/km
L63053634
36 x 0,34 mm²
12,1 mm
117,5 kg/km
220 kg/km
L63054034
40 x 0,34 mm²
12,9 mm
130,6 kg/km
244 kg/km
L63054434
44 x 0,34 mm²
13,5 mm
143,6 kg/km
261 kg/km
L63055034
50 x 0,34 mm²
14,5 mm
163,2 kg/km
304 kg/km
L63056134
61 x 0,34 mm²
15,4 mm
199,1 kg/km
358 kg/km
L63050250
2 x 0,50 mm²
4,5 mm
9,6 kg/km
31 kg/km
L63050350
3 x 0,50 mm²
4,7 mm
14,4 kg/km
36 kg/km
L63050450
4 x 0,50 mm²
5,1 mm
19,2 kg/km
43 kg/km
L63050550
5 x 0,50 mm²
5,6 mm
24 kg/km
51 kg/km
L63050750
7 x 0,50 mm²
6,3 mm
33,6 kg/km
67 kg/km
L63050850
8 x 0,50 mm²
7,3 mm
38,4 kg/km
82 kg/km
L63051250
12 x 0,50 mm²
8,5 mm
57,6 kg/km
113 kg/km
L63051450
14 x 0,50 mm²
8,9 mm
67,2 kg/km
127 kg/km
L63051650
16 x 0,50 mm²
9,4 mm
76,8 kg/km
142 kg/km
L63051850
18 x 0,50 mm²
9,9 mm
86,4 kg/km
157 kg/km
L63052150
21 x 0,50 mm²
10,9 mm
100,8 kg/km
180 kg/km
L63052450
24 x 0,50 mm²
11,5 mm
115,2 kg/km
195 kg/km
L63052750
27 x 0,50 mm²
11,7 mm
129,6 kg/km
213 kg/km
L63053050
30 x 0,50 mm²
12,1 mm
144 kg/km
232 kg/km
L63053250
32 x 0,50 mm²
12,6 mm
153,6 kg/km
248 kg/km
L63053650
36 x 0,50 mm²
13,1 mm
172,8 kg/km
274 kg/km
L63054450
44 x 0,50 mm²
15,1 mm
211,2 kg/km
341 kg/km
L63055050
50 x 0,50 mm²
15,7 mm
240 kg/km
411 kg/km
L63056150
61 x 0,50 mm²
16,7 mm
292,8 kg/km
448 kg/km
L63050275
2 x 0,75 mm²
5,1 mm
14,4 kg/km
41 kg/km
L63050375
3 x 0,75 mm²
5,4 mm
21,6 kg/km
49 kg/km
L63050475
4 x 0,75 mm²
6,1 mm
28,8 kg/km
62 kg/km
L63050575
5 x 0,75 mm²
6,6 mm
36 kg/km
73 kg/km
L63050775
7 x 0,75 mm²
7,2 mm
50,4 kg/km
91 kg/km
L63050875
8 x 0,75 mm²
8,7 mm
57,6 kg/km
119 kg/km
L63051275
12 x 0,75 mm²
9,8 mm
86,4 kg/km
153 kg/km
L63051475
14 x 0,75 mm²
10,3 mm
100,8 kg/km
170 kg/km
L63051675
16 x 0,75 mm²
10,8 mm
115,2 kg/km
192 kg/km
L63051875
18 x 0,75 mm²
11,4 mm
129,6 kg/km
213 kg/km
L63052175
21 x 0,75 mm²
12,5 mm
151,2 kg/km
248 kg/km
L63052475
24 x 0,75 mm²
13,3 mm
172,8 kg/km
270 kg/km
L63052775
27 x 0,75 mm²
13,6 mm
194,4 kg/km
297 kg/km
L63053075
30 x 0,75 mm²
14,5 mm
216 kg/km
339 kg/km
L63053275
32 x 0,75 mm²
15 mm
230,4 kg/km
360 kg/km
L63053675
36 x 0,75 mm²
15,6 mm
259,2 kg/km
399 kg/km
L63054075
40 x 0,75 mm²
16,7 mm
288 kg/km
443 kg/km
L63054475
44 x 0,75 mm²
17,5 mm
316,8 kg/km
475 kg/km
L63055075
50 x 0,75 mm²
18,3 mm
360 kg/km
530 kg/km
L63056175
61 x 0,75 mm²
19,8 mm
439,2 kg/km
648 kg/km
L63050280
2 x 1,00 mm²
5,3 mm
19,2 kg/km
47 kg/km
L63050380
3 x 1,00 mm²
5,6 mm
28,8 kg/km
56 kg/km
L63050480
4 x 1,00 mm²
6,3 mm
38,4 kg/km
71 kg/km
L63050580
5 x 1,00 mm²
6,9 mm
48 kg/km
86 kg/km
L63050680
6 x 1,00 mm²
7,5 mm
57,6 kg/km
100 kg/km
L63050780
7 x 1,00 mm²
7,9 mm
67,2 kg/km
116 kg/km
L63050285
2 x 1,50 mm²
6,1 mm
28,8 kg/km
64 kg/km
L63050385
3 x 1,50 mm²
6,4 mm
43,2 kg/km
77 kg/km
L63050485
4 x 1,50 mm²
7 mm
57,6 kg/km
94 kg/km
L63050585
5 x 1,50 mm²
8,1 mm
72 kg/km
122 kg/km
L63050685
6 x 1,50 mm²
8,8 mm
86,4 kg/km
142 kg/km
L63050785
7 x 1,50 mm²
8,8 mm
100,8 kg/km
153 kg/km

Other dimensions and colours are possible on request.

Downloads

More products in Halogen-free Data Cables

Highly flexible cables according to your special requirements

Family business for construction and production since 1947

Please send us your inquiry
+49 (0)2162 898-0
Monday to Thursday, 7.30–16.30
Friday, 07.30–13.30
