SABIX® D 315 FRNC

Flexible data cable with improved fire performance and overall copper screen

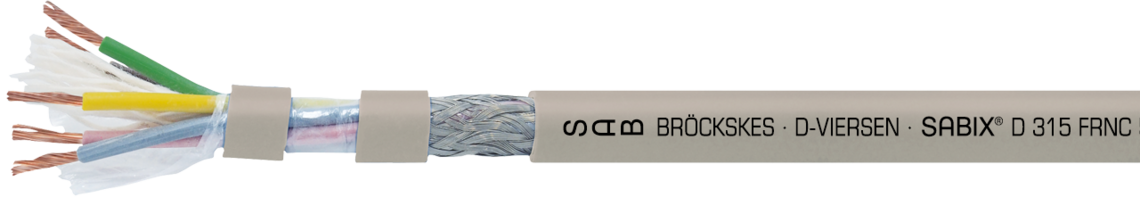

Marking for SABIX® D 315 FRNC 63150750: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 315 FRNC 7 x 0,5 mm² CE

Marking for SABIX® D 315 FRNC 63150750: SAB BRÖCKSKES · D-VIERSEN · SABIX® D 315 FRNC 7 x 0,5 mm² CE

Download data sheet for SABIX® D 315 FRNC
Questions about our products?

Application

SABIX® D 315 FRNC is a flexible data cable with imrpoved fire performance and overall copper screen which is flame retardant and self-extinguishing. This FRNC data cable with temperature range -40/+85 °C (LSZH) is recommended for use in electronic data processing systems, weighing installations, and office appliances.

Outstanding features

    • halogen-free
    • screened, good EMC characteristics
    • no flame propagation
    • flame retardant and self-extinguishing

    Construction

    Conductor

    bare copper strands with reference to VDE 0812

    Insulation

    SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    in layers

    Wrapping

    foil

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7032)

    Conductor

    bare copper strands with reference to VDE 0812

    Insulation

    SABIX®

    Colour code

    with reference to DIN 47100

    Stranding

    in layers

    Wrapping

    foil

    Screen

    tinned copper braiding

    Sheath material

    SABIX®

    Sheath colour

    grey (RAL 7032)

    Technical data

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    > 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+85 °C

    flexible application: -30/+85 °C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Peak operating voltage

    < 0,25 mm² = max. 350 V

    > 0,25 mm² = max. 500 V

    Testing voltage

    core/core 1500 V

    core/screen 1200 V

    Min. bending radius

    fixed laying: 5 x d

    flexible application: 10 x d

    Temperature range

    fixed laying: -40/+85 °C

    flexible application: -30/+85 °C

    Halogen-free

    acc. to IEC 60754-1 + VDE 0482-754-1

    Flame propagation

    no flame propagation
    acc. to IEC 60332-3-24 + VDE 0482-332-3-24
    resp. IEC 60332-3-25 + VDE 0482-332-3-25 category C resp. D

    Fire performance

    flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2

    Corrosiveness of conflagration gases

    in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

    Smoke density

    acc. to IEC 61034 + VDE 0482-1034

    Flexibility

    good

    Absence of harmful substances

    acc. to RoHS directive of the European Union

    Dimensions

    item no. No. of cores x
    cross section     		Copper figure Cable weight ≈
    L631502142 x 0,14 mm²13 kg/km23 kg/km Send inquiry
    L631503143 x 0,14 mm²14,4 kg/km25 kg/km Send inquiry
    L631504144 x 0,14 mm²15,8 kg/km27 kg/km Send inquiry
    L631505145 x 0,14 mm²20,6 kg/km33 kg/km Send inquiry
    L631507147 x 0,14 mm²23,4 kg/km38 kg/km Send inquiry
    L631508148 x 0,14 mm²24,9 kg/km46 kg/km Send inquiry
    L6315101410 x 0,14 mm²29,5 kg/km51 kg/km Send inquiry
    L6315121412 x 0,14 mm²33,7 kg/km64 kg/km Send inquiry
    L6315141414 x 0,14 mm²36,5 kg/km69 kg/km Send inquiry
    L6315161416 x 0,14 mm²41,1 kg/km76 kg/km Send inquiry
    L6315181418 x 0,14 mm²43,9 kg/km82 kg/km Send inquiry
    L6315211421 x 0,14 mm²51,9 kg/km84 kg/km Send inquiry
    L6315241424 x 0,14 mm²74 kg/km89 kg/km Send inquiry
    L6315271427 x 0,14 mm²85 kg/km104 kg/km Send inquiry
    L6315301430 x 0,14 mm²98 kg/km112 kg/km Send inquiry
    L6315321432 x 0,14 mm²108 kg/km118 kg/km Send inquiry
    L6315361436 x 0,14 mm²117 kg/km128 kg/km Send inquiry
    L6315401440 x 0,14 mm²126 kg/km141 kg/km Send inquiry
    L6315441444 x 0,14 mm²138 kg/km162 kg/km Send inquiry
    L6315501450 x 0,14 mm²150 kg/km175 kg/km Send inquiry
    L6315521452 x 0,14 mm²155 kg/km179 kg/km Send inquiry
    L6315611461 x 0,14 mm²176 kg/km203 kg/km Send inquiry
    L631502252 x 0,25 mm²15,2 kg/km26 kg/km Send inquiry
    L631503253 x 0,25 mm²17,6 kg/km29 kg/km Send inquiry
    L631504254 x 0,25 mm²23,5 kg/km33 kg/km Send inquiry
    L631505255 x 0,25 mm²26 kg/km43 kg/km Send inquiry
    L631507257 x 0,25 mm²30,9 kg/km50 kg/km Send inquiry
    L631508258 x 0,25 mm²35,3 kg/km66 kg/km Send inquiry
    L6315102510 x 0,25 mm²43,5 kg/km74 kg/km Send inquiry
    L6315122512 x 0,25 mm²48,4 kg/km81 kg/km Send inquiry
    L6315142514 x 0,25 mm²53,4 kg/km89 kg/km Send inquiry
    L6315162516 x 0,25 mm²59,8 kg/km98 kg/km Send inquiry
    L6315182518 x 0,25 mm²66,9 kg/km108 kg/km Send inquiry
    L6315212521 x 0,25 mm²76,6 kg/km122 kg/km Send inquiry
    L6315242524 x 0,25 mm²115 kg/km130 kg/km Send inquiry
    L6315272527 x 0,25 mm²120 kg/km142 kg/km Send inquiry
    L6315302530 x 0,25 mm²132 kg/km152 kg/km Send inquiry
    L6315322532 x 0,25 mm²138 kg/km161 kg/km Send inquiry
    L6315362536 x 0,25 mm²152 kg/km189 kg/km Send inquiry
    L6315402540 x 0,25 mm²164 kg/km209 kg/km Send inquiry
    L6315442544 x 0,25 mm²180 kg/km221 kg/km Send inquiry
    L6315502550 x 0,25 mm²222 kg/km254 kg/km Send inquiry
    L6315522552 x 0,25 mm²234 kg/km260 kg/km Send inquiry
    L6315612561 x 0,25 mm²287 kg/km295 kg/km Send inquiry
    L631502342 x 0,34 mm²20,4 kg/km34 kg/km Send inquiry
    L631503343 x 0,34 mm²23,8 kg/km41 kg/km Send inquiry
    L631504344 x 0,34 mm²27,2 kg/km47 kg/km Send inquiry
    L631505345 x 0,34 mm²32,3 kg/km55 kg/km Send inquiry
    L631507347 x 0,34 mm²40,5 kg/km73 kg/km Send inquiry
    L631508348 x 0,34 mm²47,7 kg/km87 kg/km Send inquiry
    L6315103410 x 0,34 mm²56,3 kg/km97 kg/km Send inquiry
    L6315123412 x 0,34 mm²62,9 kg/km107 kg/km Send inquiry
    L6315143414 x 0,34 mm²78 kg/km118 kg/km Send inquiry
    L6315163416 x 0,34 mm²87 kg/km129 kg/km Send inquiry
    L6315183418 x 0,34 mm²108 kg/km144 kg/km Send inquiry
    L6315213421 x 0,34 mm²127 kg/km177 kg/km Send inquiry
    L6315243424 x 0,34 mm²140 kg/km193 kg/km Send inquiry
    L6315273427 x 0,34 mm²151 kg/km207 kg/km Send inquiry
    L6315303430 x 0,34 mm²162 kg/km222 kg/km Send inquiry
    L6315323432 x 0,34 mm²171 kg/km247 kg/km Send inquiry
    L6315363436 x 0,34 mm²188 kg/km272 kg/km Send inquiry
    L6315403440 x 0,34 mm²208 kg/km301 kg/km Send inquiry
    L6315443444 x 0,34 mm²223 kg/km319 kg/km Send inquiry
    L6315503450 x 0,34 mm²248 kg/km386 kg/km Send inquiry
    L6315523452 x 0,34 mm²273 kg/km395 kg/km Send inquiry
    L6315613461 x 0,34 mm²316 kg/km366 kg/km Send inquiry
    L631502502 x 0,50 mm²23,6 kg/km41 kg/km Send inquiry
    L631503503 x 0,50 mm²28,5 kg/km46 kg/km Send inquiry
    L631504504 x 0,50 mm²35,2 kg/km54 kg/km Send inquiry
    L631505505 x 0,50 mm²41,7 kg/km71 kg/km Send inquiry
    L631507507 x 0,50 mm²53,2 kg/km85 kg/km Send inquiry
    L631508508 x 0,50 mm²62,1 kg/km103 kg/km Send inquiry
    L6315105010 x 0,50 mm²74,5 kg/km113 kg/km Send inquiry
    L6315125012 x 0,50 mm²84,2 kg/km126 kg/km Send inquiry
    L6315145014 x 0,50 mm²93,5 kg/km139 kg/km Send inquiry
    L6315165016 x 0,50 mm²105,9 kg/km156 kg/km Send inquiry
    L6315185018 x 0,50 mm²133,9 kg/km185 kg/km Send inquiry
    L6315215021 x 0,50 mm²154,9 kg/km220 kg/km Send inquiry
    L6315245024 x 0,50 mm²169,7 kg/km241 kg/km Send inquiry
    L6315275027 x 0,50 mm²184,2 kg/km260 kg/km Send inquiry
    L6315305030 x 0,50 mm²203,6 kg/km283 kg/km Send inquiry
    L6315325032 x 0,50 mm²213,5 kg/km299 kg/km Send inquiry
    L6315365036 x 0,50 mm²239 kg/km330 kg/km Send inquiry
    L6315445044 x 0,50 mm²309,2 kg/km422 kg/km Send inquiry
    L6315505050 x 0,50 mm²349,7 kg/km469 kg/km Send inquiry
    L6315615061 x 0,50 mm²403,7 kg/km540 kg/km Send inquiry
    L631502752 x 0,75 mm²30,4 kg/km50 kg/km Send inquiry
    L631503753 x 0,75 mm²37,7 kg/km65 kg/km Send inquiry
    L631504754 x 0,75 mm²48,3 kg/km78 kg/km Send inquiry
    L631505755 x 0,75 mm²55,8 kg/km90 kg/km Send inquiry
    L631507757 x 0,75 mm²74,1 kg/km111 kg/km Send inquiry
    L631508758 x 0,75 mm²83,8 kg/km132 kg/km Send inquiry
    L6315127512 x 0,75 mm²133,9 kg/km179 kg/km Send inquiry
    L6315147514 x 0,75 mm²148,5 kg/km198 kg/km Send inquiry
    L6315167516 x 0,75 mm²169,2 kg/km224 kg/km Send inquiry
    L6315187518 x 0,75 mm²184 kg/km257 kg/km Send inquiry
    L6315217521 x 0,75 mm²211 kg/km297 kg/km Send inquiry
    L6315247524 x 0,75 mm²239,1 kg/km324 kg/km Send inquiry
    L6315277527 x 0,75 mm²260,9 kg/km352 kg/km Send inquiry
    L6315307530 x 0,75 mm²313,4 kg/km417 kg/km Send inquiry
    L6315327532 x 0,75 mm²328,3 kg/km440 kg/km Send inquiry
    L6315367536 x 0,75 mm²357,8 kg/km479 kg/km Send inquiry
    L631502802 x 1,00 mm²35,3 kg/km55 kg/km Send inquiry
    L631503803 x 1,00 mm²46,5 kg/km73 kg/km Send inquiry
    L631504804 x 1,00 mm²58 kg/km87 kg/km Send inquiry
    L631505805 x 1,00 mm²69,4 kg/km103 kg/km Send inquiry
    L631506806 x 1,00 mm²81,4 kg/km119 kg/km Send inquiry
    L631507807 x 1,00 mm²91 kg/km127 kg/km Send inquiry
    L631502852 x 1,50 mm²48,3 kg/km77 kg/km Send inquiry
    L631503853 x 1,50 mm²62,9 kg/km90 kg/km Send inquiry
    L631504854 x 1,50 mm²71,1 kg/km109 kg/km Send inquiry
    L631505855 x 1,50 mm²95,8 kg/km130 kg/km Send inquiry
    L631506856 x 1,50 mm²112,7 kg/km152 kg/km Send inquiry
    L631507857 x 1,50 mm²127,1 kg/km162 kg/km Send inquiry
    item no.
    No. of cores x
    cross section
    Copper figure
    Cable weight ≈
