S 900

UL/CSA flexible PVC/PVC single conductor

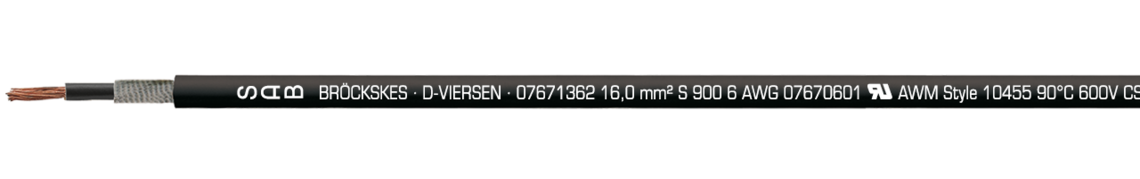

Marking for S 900 07671362: SAB BRÖCKSKES · D-VIERSEN · 07671362 16,0 mm² S 900 6 AWG 07670601 UL AWM Style 10455 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Marking for S 900 07671362: SAB BRÖCKSKES · D-VIERSEN · 07671362 16,0 mm² S 900 6 AWG 07670601 UL AWM Style 10455 90°C 600V CSA AWM I/II A/B 90°C 600V FT1 FT2 CE

Application

S 900 is a continuously flexible PVC/PVC single conductor with UL/CSA approval for use in cable tracks. This wire is recommended for use in wood working and packaging machines, assembly lines, automation plants, and it is also suitable for the American market.

Outstanding features

  • highly flexible single conductor for use in cable tracks
  • oil resistant
  • UL/CSA approval

Additional information

On request with green-yellow insulation.

From 283 mm² only UL recognition.

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3, black

Wrapping

non-woven tape

Sheath material

PVC, TM5 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

test

nach Farbcode US 3

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3, black

Wrapping

non-woven tape

Sheath material

PVC, TM5 acc. to EN 50363-3 + VDE 0207-363-3

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Voltage UL/CSA

600 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to EN 50363-3 + VDE 0207-363-3

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Voltage UL/CSA

600 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

8 x 10⁷ cJ/kg

Temperature range

DIN VDE fixed laying: -40/+70°C

DIN VDE flexible application: +5/+70°C

UL/CSA: up to +90°C

Fire performance

flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2,

UL VW-1, CSA FT1, FT2

Oil resistance

very good - PVC, TM5 acc. to EN 50363-3 + VDE 0207-363-3

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of cores x
cross section
Largest single
wire-ø
AWG/ MCM Outer-ø ± 5% Copper figure Cable weight ≈ Ampere
at 30°C
076713151 x 1,50 mm²0,16 mm16 (84/34)4,9 mm14,4 kg/km38 kg/km24 Send inquiry
076713251 x 2,50 mm²0,16 mm14 (140/34)5,8 mm24 kg/km55 kg/km32 Send inquiry
076713401 x 4,00 mm²0,16 mm12 (224/34)6,6 mm38,4 kg/km77 kg/km42 Send inquiry
076713601 x 6,00 mm²0,21 mm10 (186/32)7,3 mm57,6 kg/km104 kg/km54 Send inquiry
076713611 x 10,00 mm²0,21 mm8 (320/32)9,1 mm96 kg/km161 kg/km73 Send inquiry
076713621 x 16,00 mm²0,21 mm6 (512/32)10,1 mm153,6 kg/km231 kg/km98 Send inquiry
076713631 x 25,00 mm²0,21 mm4 (798/32)12 mm240 kg/km337 kg/km129 Send inquiry
076713641 x 35,00 mm²0,21 mm2 (1083/32)13,7 mm336 kg/km454 kg/km158 Send inquiry
076713651 x 50,00 mm²0,31 mm1 (703/28)15,8 mm480 kg/km632 kg/km198 Send inquiry
076713851 x 54,00 mm²0,31 mm1/0 (779/28)16,3 mm518,4 kg/km677 kg/km213 Send inquiry
076713861 x 68,00 mm²0,31 mm2/0 (969/28)17,1 mm652,8 kg/km789 kg/km226 Send inquiry
076713661 x 70,00 mm²0,31 mm2/0 (988/28)17,3 mm672 kg/km803 kg/km245 Send inquiry
076713871 x 70,00 mm²0,31 mm3/0 (1218/28)19,7 mm825,6 kg/km1036 kg/km263 Send inquiry
076713671 x 95,00 mm²0,31 mm3/0 (1340/28)21 mm912 kg/km1146 kg/km292 Send inquiry
076713881 x 108,00 mm²0,31 mm4/0 (1528/28)22,5 mm1036,8 kg/km1286 kg/km313 Send inquiry
076713681 x 120,00 mm²0,31 mm4/0 (1680/28)22,8 mm1152 kg/km1401 kg/km344 Send inquiry
076713891 x 127,00 mm²0,31 mm250 MCM (1799/28)23,3 mm1220,8 kg/km1490 kg/km370 Send inquiry
076713691 x 150,00 mm²0,31 mm250 MCM (2122/28)24,6 mm1440 kg/km1724 kg/km391 Send inquiry
076713901 x 152,00 mm²0,31 mm300 MCM (2154/28)24,6 mm1461,7 kg/km1724 kg/km396 Send inquiry
076713911 x 177,00 mm²0,41 mm350 MCM (1443/26)26,7 mm1740,8 kg/km2051 kg/km430 Send inquiry
076713701 x 185,00 mm²0,41 mm350 MCM (1472/26)26,7 mm1776 kg/km2085 kg/km448 Send inquiry
076713921 x 204,00 mm²0,41 mm400 MCM (1628/26)30,4 mm1964 kg/km2411 kg/km470 Send inquiry
076713931 x 232,00 mm²0,41 mm450 MCM (1850/26)31,5 mm2231,8 kg/km2693 kg/km490 Send inquiry
076713711 x 240,00 mm²0,41 mm450 MCM (1910/26)31,5 mm2304 kg/km2763 kg/km528 Send inquiry
076713941 x 255,00 mm²0,41 mm500 MCM (2035/26)31,8 mm2455 kg/km2920 kg/km535 Send inquiry
076713951 x 283,00 mm²0,41 mm550 MCM (2257/26)33,6 mm2722,8 kg/km3399 kg/km560 Send inquiry
076713721 x 300,00 mm²0,41 mm550 MCM (2388/26)34,3 mm2880 kg/km3403 kg/km608 Send inquiry
076713961 x 306,00 mm²0,41 mm600 MCM (2442/26)34,3 mm2946 kg/km3466 kg/km613 Send inquiry
item no.
No. of cores x
cross section
Largest single
wire-ø
AWG/ MCM
Outer-ø ± 5%
Copper figure
Cable weight ≈
Ampere
at 30°C
07671315
1 x 1,50 mm²
0,16 mm
16 (84/34)
4,9 mm
14,4 kg/km
38 kg/km
24
07671325
1 x 2,50 mm²
0,16 mm
14 (140/34)
5,8 mm
24 kg/km
55 kg/km
32
07671340
1 x 4,00 mm²
0,16 mm
12 (224/34)
6,6 mm
38,4 kg/km
77 kg/km
42
07671360
1 x 6,00 mm²
0,21 mm
10 (186/32)
7,3 mm
57,6 kg/km
104 kg/km
54
07671361
1 x 10,00 mm²
0,21 mm
8 (320/32)
9,1 mm
96 kg/km
161 kg/km
73
07671362
1 x 16,00 mm²
0,21 mm
6 (512/32)
10,1 mm
153,6 kg/km
231 kg/km
98
07671363
1 x 25,00 mm²
0,21 mm
4 (798/32)
12 mm
240 kg/km
337 kg/km
129
07671364
1 x 35,00 mm²
0,21 mm
2 (1083/32)
13,7 mm
336 kg/km
454 kg/km
158
07671365
1 x 50,00 mm²
0,31 mm
1 (703/28)
15,8 mm
480 kg/km
632 kg/km
198
07671385
1 x 54,00 mm²
0,31 mm
1/0 (779/28)
16,3 mm
518,4 kg/km
677 kg/km
213
07671386
1 x 68,00 mm²
0,31 mm
2/0 (969/28)
17,1 mm
652,8 kg/km
789 kg/km
226
07671366
1 x 70,00 mm²
0,31 mm
2/0 (988/28)
17,3 mm
672 kg/km
803 kg/km
245
07671387
1 x 70,00 mm²
0,31 mm
3/0 (1218/28)
19,7 mm
825,6 kg/km
1036 kg/km
263
07671367
1 x 95,00 mm²
0,31 mm
3/0 (1340/28)
21 mm
912 kg/km
1146 kg/km
292
07671388
1 x 108,00 mm²
0,31 mm
4/0 (1528/28)
22,5 mm
1036,8 kg/km
1286 kg/km
313
07671368
1 x 120,00 mm²
0,31 mm
4/0 (1680/28)
22,8 mm
1152 kg/km
1401 kg/km
344
07671389
1 x 127,00 mm²
0,31 mm
250 MCM (1799/28)
23,3 mm
1220,8 kg/km
1490 kg/km
370
07671369
1 x 150,00 mm²
0,31 mm
250 MCM (2122/28)
24,6 mm
1440 kg/km
1724 kg/km
391
07671390
1 x 152,00 mm²
0,31 mm
300 MCM (2154/28)
24,6 mm
1461,7 kg/km
1724 kg/km
396
07671391
1 x 177,00 mm²
0,41 mm
350 MCM (1443/26)
26,7 mm
1740,8 kg/km
2051 kg/km
430
07671370
1 x 185,00 mm²
0,41 mm
350 MCM (1472/26)
26,7 mm
1776 kg/km
2085 kg/km
448
07671392
1 x 204,00 mm²
0,41 mm
400 MCM (1628/26)
30,4 mm
1964 kg/km
2411 kg/km
470
07671393
1 x 232,00 mm²
0,41 mm
450 MCM (1850/26)
31,5 mm
2231,8 kg/km
2693 kg/km
490
07671371
1 x 240,00 mm²
0,41 mm
450 MCM (1910/26)
31,5 mm
2304 kg/km
2763 kg/km
528
07671394
1 x 255,00 mm²
0,41 mm
500 MCM (2035/26)
31,8 mm
2455 kg/km
2920 kg/km
535
07671395
1 x 283,00 mm²
0,41 mm
550 MCM (2257/26)
33,6 mm
2722,8 kg/km
3399 kg/km
560
07671372
1 x 300,00 mm²
0,41 mm
550 MCM (2388/26)
34,3 mm
2880 kg/km
3403 kg/km
608
07671396
1 x 306,00 mm²
0,41 mm
600 MCM (2442/26)
34,3 mm
2946 kg/km
3466 kg/km
613

Other dimensions and colours are possible on request.
