SD 200 C TP

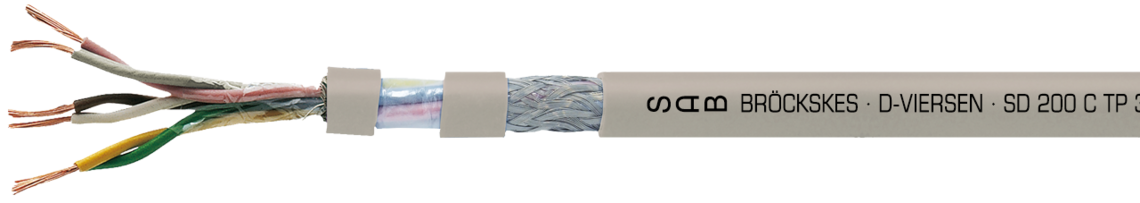

Continuously flexible paired TPE/PUR data cable with coloured cores and overall copper screen

Marking example: SAB BRÖCKSKES · D-VIERSEN · SD 200 C TP 3 x 2 x 0,5 mm² CE

Marking example: SAB BRÖCKSKES · D-VIERSEN · SD 200 C TP 3 x 2 x 0,5 mm² CE

Questions about our products?

Application

SD 200 C TP is a continuously flexible paired TPE/PUR data cable with coloured cores and overall copper screen. Additionally, it has good EMC characteristics. It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.

Outstanding features

  • PWIS uncritical (PWIS= paint-wetting impairment substances)
  • flexible at low temperatures
  • halogen-free
  • travel > 10 m is possible
  • screened, good EMC characteristics
  • oil resistant
  • high abrasion resistance
Questions about our products?

Construction

Conductor

bare copper strands, extra fine wires

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

cores twisted to pairs, pairs twisted in specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Screen

tinned copper braiding

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

core/screen 1200 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Continuous flexibility

very good

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no. No. of pairs x cross section
n x 2 x mm² 		Largest single
wire-ø 		Outer-ø ± 10% Copper figure Cable weight ≈
L078902142 x 2 x 0,14 mm²0,11 mm4,4 mm17,4 kg/km29 kg/km Send inquiry
L078903143 x 2 x 0,14 mm²0,11 mm4,9 mm20,2 kg/km30 kg/km Send inquiry
L078904144 x 2 x 0,14 mm²0,11 mm5,6 mm24,7 kg/km40 kg/km Send inquiry
L078905145 x 2 x 0,14 mm²0,11 mm6,0 mm28,8 kg/km43 kg/km Send inquiry
L078906146 x 2 x 0,14 mm²0,11 mm6,4 mm31,5 kg/km52 kg/km Send inquiry
L078907147 x 2 x 0,14 mm²0,11 mm6,7 mm35,9 kg/km59 kg/km Send inquiry
L0789101410 x 2 x 0,14 mm²0,11 mm7,9 mm47,5 kg/km72 kg/km Send inquiry
L0789141414 x 2 x 0,14 mm²0,11 mm9 mm62,7 kg/km97 kg/km Send inquiry
L0789181418 x 2 x 0,14 mm²0,11 mm10 mm89,6 kg/km127 kg/km Send inquiry
L0789251425 x 2 x 0,14 mm²0,11 mm11,7 mm114,3 kg/km167 kg/km Send inquiry
L078902252 x 2 x 0,25 mm²0,11 mm4,9 mm21,8 kg/km33 kg/km Send inquiry
L078903253 x 2 x 0,25 mm²0,11 mm5,5 mm28,3 kg/km41 kg/km Send inquiry
L078904254 x 2 x 0,25 mm²0,11 mm6,4 mm36,1 kg/km51 kg/km Send inquiry
L078905255 x 2 x 0,25 mm²0,11 mm6,9 mm41,1 kg/km60 kg/km Send inquiry
L078906256 x 2 x 0,25 mm²0,11 mm7,1 mm47,3 kg/km69 kg/km Send inquiry
L078907257 x 2 x 0,25 mm²0,11 mm7,4 mm54,1 kg/km81 kg/km Send inquiry
L0789102510 x 2 x 0,25 mm²0,11 mm8,9 mm70,8 kg/km100 kg/km Send inquiry
L0789142514 x 2 x 0,25 mm²0,11 mm10,9 mm108,7 kg/km150 kg/km Send inquiry
L0789182518 x 2 x 0,25 mm²0,11 mm11,6 mm133,4 kg/km185 kg/km Send inquiry
L0789252525 x 2 x 0,25 mm²0,11 mm13,8 mm171,9 kg/km259 kg/km Send inquiry
L078902342 x 2 x 0,34 mm²0,11 mm5,2 mm20,3 kg/km38 kg/km Send inquiry
L078903343 x 2 x 0,34 mm²0,11 mm5,8 mm34,9 kg/km47 kg/km Send inquiry
L078904344 x 2 x 0,34 mm²0,11 mm6,9 mm43,2 kg/km62 kg/km Send inquiry
L078905345 x 2 x 0,34 mm²0,11 mm7,4 mm53,1 kg/km72 kg/km Send inquiry
L078907347 x 2 x 0,34 mm²0,11 mm8 mm66,4 kg/km94 kg/km Send inquiry
L0789103410 x 2 x 0,34 mm²0,11 mm9,6 mm90,5 kg/km122 kg/km Send inquiry
L0789143414 x 2 x 0,34 mm²0,11 mm11,6 mm138,3 kg/km179 kg/km Send inquiry
L0789183418 x 2 x 0,34 mm²0,11 mm12,5 mm169,2 kg/km220 kg/km Send inquiry
L0789253425 x 2 x 0,34 mm²0,11 mm14,7 mm247,3 kg/km310 kg/km Send inquiry
L078902502 x 2 x 0,50 mm²0,11 mm6,3 mm34,6 kg/km51 kg/km Send inquiry
L078903503 x 2 x 0,50 mm²0,11 mm6,9 mm47,3 kg/km67 kg/km Send inquiry
L078904504 x 2 x 0,50 mm²0,11 mm7,9 mm61,4 kg/km84 kg/km Send inquiry
L078905505 x 2 x 0,50 mm²0,11 mm8,8 mm73,1 kg/km101 kg/km Send inquiry
L078907507 x 2 x 0,50 mm²0,11 mm9,4 mm108,4 kg/km134 kg/km Send inquiry
L0789105010 x 2 x 0,50 mm²0,11 mm11,3 mm143,3 kg/km186 kg/km Send inquiry
L0789145014 x 2 x 0,50 mm²0,11 mm13,5 mm191,7 kg/km251 kg/km Send inquiry
L0789185018 x 2 x 0,50 mm²0,11 mm14,7 mm257,8 kg/km329 kg/km Send inquiry
L0789255025 x 2 x 0,50 mm²0,11 mm17 mm336,5 kg/km429 kg/km Send inquiry
L078902752 x 2 x 0,75 mm²0,11 mm7,2 mm47,4 kg/km69 kg/km Send inquiry
L078903753 x 2 x 0,75 mm²0,11 mm7,9 mm66,2 kg/km84 kg/km Send inquiry
L078904754 x 2 x 0,75 mm²0,11 mm8,9 mm101 kg/km107 kg/km Send inquiry
L078905755 x 2 x 0,75 mm²0,11 mm10,4 mm118,8 kg/km147 kg/km Send inquiry
L078907757 x 2 x 0,75 mm²0,11 mm11,6 mm148 kg/km208 kg/km Send inquiry
L0789107510 x 2 x 0,75 mm²0,11 mm13,5 mm228 kg/km263 kg/km Send inquiry
L0789147514 x 2 x 0,75 mm²0,11 mm16,1 mm296,9 kg/km366 kg/km Send inquiry
L0789187518 x 2 x 0,75 mm²0,11 mm17,3 mm366,1 kg/km456 kg/km Send inquiry
L0789257525 x 2 x 0,75 mm²0,11 mm20,1 mm480,5 kg/km597 kg/km Send inquiry
item no.
No. of pairs x cross section
n x 2 x mm²
Largest single
wire-ø
Outer-ø ± 10%
Copper figure
Cable weight ≈
L07890214
2 x 2 x 0,14 mm²
0,11 mm
4,4 mm
17,4 kg/km
29 kg/km
L07890314
3 x 2 x 0,14 mm²
0,11 mm
4,9 mm
20,2 kg/km
30 kg/km
L07890414
4 x 2 x 0,14 mm²
0,11 mm
5,6 mm
24,7 kg/km
40 kg/km
L07890514
5 x 2 x 0,14 mm²
0,11 mm
6,0 mm
28,8 kg/km
43 kg/km
L07890614
6 x 2 x 0,14 mm²
0,11 mm
6,4 mm
31,5 kg/km
52 kg/km
L07890714
7 x 2 x 0,14 mm²
0,11 mm
6,7 mm
35,9 kg/km
59 kg/km
L07891014
10 x 2 x 0,14 mm²
0,11 mm
7,9 mm
47,5 kg/km
72 kg/km
L07891414
14 x 2 x 0,14 mm²
0,11 mm
9 mm
62,7 kg/km
97 kg/km
L07891814
18 x 2 x 0,14 mm²
0,11 mm
10 mm
89,6 kg/km
127 kg/km
L07892514
25 x 2 x 0,14 mm²
0,11 mm
11,7 mm
114,3 kg/km
167 kg/km
L07890225
2 x 2 x 0,25 mm²
0,11 mm
4,9 mm
21,8 kg/km
33 kg/km
L07890325
3 x 2 x 0,25 mm²
0,11 mm
5,5 mm
28,3 kg/km
41 kg/km
L07890425
4 x 2 x 0,25 mm²
0,11 mm
6,4 mm
36,1 kg/km
51 kg/km
L07890525
5 x 2 x 0,25 mm²
0,11 mm
6,9 mm
41,1 kg/km
60 kg/km
L07890625
6 x 2 x 0,25 mm²
0,11 mm
7,1 mm
47,3 kg/km
69 kg/km
L07890725
7 x 2 x 0,25 mm²
0,11 mm
7,4 mm
54,1 kg/km
81 kg/km
L07891025
10 x 2 x 0,25 mm²
0,11 mm
8,9 mm
70,8 kg/km
100 kg/km
L07891425
14 x 2 x 0,25 mm²
0,11 mm
10,9 mm
108,7 kg/km
150 kg/km
L07891825
18 x 2 x 0,25 mm²
0,11 mm
11,6 mm
133,4 kg/km
185 kg/km
L07892525
25 x 2 x 0,25 mm²
0,11 mm
13,8 mm
171,9 kg/km
259 kg/km
L07890234
2 x 2 x 0,34 mm²
0,11 mm
5,2 mm
20,3 kg/km
38 kg/km
L07890334
3 x 2 x 0,34 mm²
0,11 mm
5,8 mm
34,9 kg/km
47 kg/km
L07890434
4 x 2 x 0,34 mm²
0,11 mm
6,9 mm
43,2 kg/km
62 kg/km
L07890534
5 x 2 x 0,34 mm²
0,11 mm
7,4 mm
53,1 kg/km
72 kg/km
L07890734
7 x 2 x 0,34 mm²
0,11 mm
8 mm
66,4 kg/km
94 kg/km
L07891034
10 x 2 x 0,34 mm²
0,11 mm
9,6 mm
90,5 kg/km
122 kg/km
L07891434
14 x 2 x 0,34 mm²
0,11 mm
11,6 mm
138,3 kg/km
179 kg/km
L07891834
18 x 2 x 0,34 mm²
0,11 mm
12,5 mm
169,2 kg/km
220 kg/km
L07892534
25 x 2 x 0,34 mm²
0,11 mm
14,7 mm
247,3 kg/km
310 kg/km
L07890250
2 x 2 x 0,50 mm²
0,11 mm
6,3 mm
34,6 kg/km
51 kg/km
L07890350
3 x 2 x 0,50 mm²
0,11 mm
6,9 mm
47,3 kg/km
67 kg/km
L07890450
4 x 2 x 0,50 mm²
0,11 mm
7,9 mm
61,4 kg/km
84 kg/km
L07890550
5 x 2 x 0,50 mm²
0,11 mm
8,8 mm
73,1 kg/km
101 kg/km
L07890750
7 x 2 x 0,50 mm²
0,11 mm
9,4 mm
108,4 kg/km
134 kg/km
L07891050
10 x 2 x 0,50 mm²
0,11 mm
11,3 mm
143,3 kg/km
186 kg/km
L07891450
14 x 2 x 0,50 mm²
0,11 mm
13,5 mm
191,7 kg/km
251 kg/km
L07891850
18 x 2 x 0,50 mm²
0,11 mm
14,7 mm
257,8 kg/km
329 kg/km
L07892550
25 x 2 x 0,50 mm²
0,11 mm
17 mm
336,5 kg/km
429 kg/km
L07890275
2 x 2 x 0,75 mm²
0,11 mm
7,2 mm
47,4 kg/km
69 kg/km
L07890375
3 x 2 x 0,75 mm²
0,11 mm
7,9 mm
66,2 kg/km
84 kg/km
L07890475
4 x 2 x 0,75 mm²
0,11 mm
8,9 mm
101 kg/km
107 kg/km
L07890575
5 x 2 x 0,75 mm²
0,11 mm
10,4 mm
118,8 kg/km
147 kg/km
L07890775
7 x 2 x 0,75 mm²
0,11 mm
11,6 mm
148 kg/km
208 kg/km
L07891075
10 x 2 x 0,75 mm²
0,11 mm
13,5 mm
228 kg/km
263 kg/km
L07891475
14 x 2 x 0,75 mm²
0,11 mm
16,1 mm
296,9 kg/km
366 kg/km
L07891875
18 x 2 x 0,75 mm²
0,11 mm
17,3 mm
366,1 kg/km
456 kg/km
L07892575
25 x 2 x 0,75 mm²
0,11 mm
20,1 mm
480,5 kg/km
597 kg/km

Other dimensions and colours are possible on request.
