SD 200

Extremely flexible TPE/PUR data cable with coloured cores for continuous movement

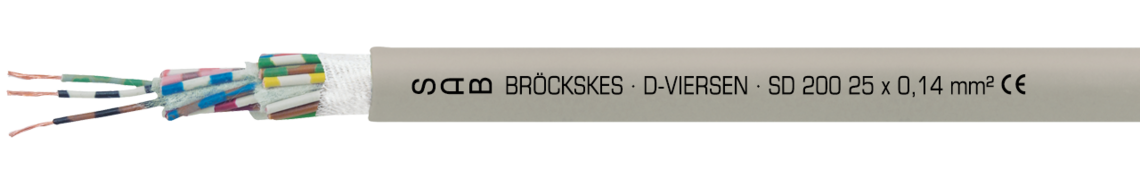

Marking example: SAB BRÖCKSKES · D-VIERSEN · SD 200 25 x 0,14 mm² CE

Application

The SD 200 is a highly flexible data cable designed for moving applications with long travel distances of over 10 m. Thanks to its small outer diameter and tight bending radius, it is particularly suitable for compact system designs and dynamic motion sequences. The combination of TPE core insulation and a durable PUR sheath ensures high resistance to abrasion, oil, chemicals and weathering. The cable remains flexible even at low temperatures, guaranteeing reliable operation in demanding industrial environments.

Outstanding features

PWIS uncritical (PWIS = paint-wetting impairment substances)
flexible at low temperatures
halogen-free
travel > 10 m is possible
high abrasion resistance
small bending radius
small outer diameter
PFAS free

Questions about our products?

Additional information

On request also possible in dimensions 0,50mm² and 0,75mm²!

Not sure which cables for energy chains are right for your application?

Compare more SAB cables for energy chains and use their technical specifications to find the right cable for your application.

Compare and select cables for energy chains

Construction

Conductor	bare copper strands, extra fine wires
Insulation	TPE
Colour code	with reference to DIN 47100
Stranding	specially adjusted layering with non-woven tape over each layer
Wrapping	non-woven tape
Sheath material	PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface
Sheath colour	grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

TPE

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage	max. 350 V acc. to VDE 0812
Testing voltage	core/core 1500 V
Min. bending radius	continuously flexible: 7,5 x d
Radiation resistance	1 x 10⁷ cJ/kg
Temperature range	fixed laying: -50/+90°C flexible application: -40/+90°C
Halogen-free	acc. to IEC 60754-1 + VDE 0482-754-1
Oil resistance	very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2
Chem. resistance	good against acids, alkalines, solvents, hydraulic liquids etc..
Continuous flexibility	very good
Weather resistance	very good
Absence of harmful substances	acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

1 x 10⁷ cJ/kg

Temperature range

fixed laying: -50/+90°C

flexible application: -40/+90°C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc..

Continuous flexibility

very good

Weather resistance

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Dimensions

item no.	No. of cores x cross section	Largest single wire-ø	Outer-ø ± 10%	Copper figure	Cable weight ≈
L07740201	2 x 0,14 mm²	0,11 mm	2,8 mm	2,7 kg/km	9 kg/km	Send inquiry
L07740301	3 x 0,14 mm²	0,11 mm	2,9 mm	4 kg/km	11 kg/km	Send inquiry
L07740401	4 x 0,14 mm²	0,11 mm	3,2 mm	5,4 kg/km	16 kg/km	Send inquiry
L07740501	5 x 0,14 mm²	0,11 mm	3,6 mm	6,7 kg/km	17 kg/km	Send inquiry
L07740701	7 x 0,14 mm²	0,11 mm	4,2 mm	9,4 kg/km	22 kg/km	Send inquiry
L07741001	10 x 0,14 mm²	0,11 mm	4,9 mm	13,4 kg/km	28 kg/km	Send inquiry
L07741201	12 x 0,14 mm²	0,11 mm	5,0 mm	16,1 kg/km	32 kg/km	Send inquiry
L07741401	14 x 0,14 mm²	0,11 mm	5,2 mm	18,8 kg/km	36 kg/km	Send inquiry
L07741801	18 x 0,14 mm²	0,11 mm	5,9 mm	24,2 kg/km	46 kg/km	Send inquiry
L07742501	25 x 0,14 mm²	0,11 mm	7,1 mm	33,6 kg/km	63 kg/km	Send inquiry
L07743201	32 x 0,14 mm²	0,11 mm	7,6 mm	43 kg/km	78 kg/km	Send inquiry
L07740202	2 x 0,25 mm²	0,11 mm	3,1 mm	4,8 kg/km	12 kg/km	Send inquiry
L07740302	3 x 0,25 mm²	0,11 mm	3,3 mm	7,2 kg/km	15 kg/km	Send inquiry
L07740402	4 x 0,25 mm²	0,11 mm	3,7 mm	9,6 kg/km	19 kg/km	Send inquiry
L07740502	5 x 0,25 mm²	0,11 mm	4,1 mm	12 kg/km	24 kg/km	Send inquiry
L07740702	7 x 0,25 mm²	0,11 mm	4,7 mm	16,8 kg/km	32 kg/km	Send inquiry
L07741002	10 x 0,25 mm²	0,11 mm	5,5 mm	24 kg/km	41 kg/km	Send inquiry
L07741202	12 x 0,25 mm²	0,11 mm	5,7 mm	28,8 kg/km	47 kg/km	Send inquiry
L07741402	14 x 0,25 mm²	0,11 mm	5,9 mm	33,6 kg/km	54 kg/km	Send inquiry
L07741802	18 x 0,25 mm²	0,11 mm	6,8 mm	43,2 kg/km	71 kg/km	Send inquiry
L07742502	25 x 0,25 mm²	0,11 mm	8,1 mm	60 kg/km	94 kg/km	Send inquiry
L07743202	32 x 0,25 mm²	0,11 mm	8,9 mm	76,8 kg/km	120 kg/km	Send inquiry
L07740203	2 x 0,34 mm²	0,11 mm	3,3 mm	6,5 kg/km	17 kg/km	Send inquiry
L07740303	3 x 0,34 mm²	0,11 mm	3,7 mm	9,8 kg/km	19 kg/km	Send inquiry
L07740403	4 x 0,34 mm²	0,11 mm	4,0 mm	13,1 kg/km	23 kg/km	Send inquiry
L07740503	5 x 0,34 mm²	0,11 mm	4,3 mm	16,3 kg/km	30 kg/km	Send inquiry
L07740703	7 x 0,34 mm²	0,11 mm	5,0 mm	22,8 kg/km	39 kg/km	Send inquiry
L07741003	10 x 0,34 mm²	0,11 mm	5,9 mm	32,6 kg/km	50 kg/km	Send inquiry
L07741203	12 x 0,34 mm²	0,11 mm	6,3 mm	39,2 kg/km	60 kg/km	Send inquiry
L07741403	14 x 0,34 mm²	0,11 mm	6,6 mm	45,7 kg/km	68 kg/km	Send inquiry
L07741803	18 x 0,34 mm²	0,11 mm	7,3 mm	58,8 kg/km	84 kg/km	Send inquiry
L07742503	25 x 0,34 mm²	0,11 mm	8,9 mm	81,6 kg/km	118 kg/km	Send inquiry
L07743203	32 x 0,34 mm²	0,11 mm	9,5 mm	104,4 kg/km	147 kg/km	Send inquiry
