SAB Kabel

SD 90

Continuously flexible PUR data cable with coloured cores

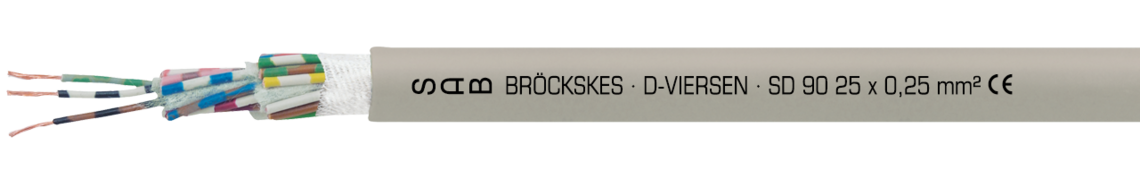

Marking for SD 90 07782502: SAB BRÖCKSKES · D-VIERSEN · SD 90 25 x 0,25 mm² CE

Marking for SD 90 07782502: SAB BRÖCKSKES · D-VIERSEN · SD 90 25 x 0,25 mm² CE

Application

SD 90 is a continuously flexible PUR data cable with coloured cores as well as increased efficiency due to the permanent use with millions of bending cycles. This high flex cable is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, welding machine and cutting systems.

Outstanding features

  • oil resistant
  • continuously flexible
  • improved abrasion resistance
  • high tear resistance
  • good chemical resistance (acid-resistant)
  • increased efficiency due to the permanent use with millions of bending cycles

Additional information

On request also possible in dimensions 0,50mm² and 0,75mm²!

Construction

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Conductor

bare copper strands, extra fine wires

Insulation

PVC, TI2 acc. to EN 50363-3 + VDE 0207-363-3

Colour code

with reference to DIN 47100

Stranding

specially adjusted layering with non-woven tape over each layer

Wrapping

non-woven tape

Sheath material

PUR, TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2 with mat surface

Sheath colour

grey (RAL 7032)

Technical data

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Absence of harmful substances

acc. to RoHS directive of the European Union

Peak operating voltage

max. 350 V acc. to VDE 0812

Testing voltage

core/core 1500 V

Min. bending radius

continuously flexible: 7,5 x d

Radiation resistance

5 x 10⁷ cJ/kg

Temperature range

fixed laying: -30/+70°C

flexible application: -5/+70°C

Oil resistance

very good - TMPU acc. to EN 50363-10-2 + VDE 0207-363-10-2

Chem. resistance

good against acids, alkalines, solvents, hydraulic liquids etc.

Flexibility

very good

Dimensions

item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
077802012 x 0,14 mm²0,11 mm3,3 mm2,7 kg/km12 kg/km Send inquiry
077803013 x 0,14 mm²0,11 mm3,5 mm4 kg/km14 kg/km Send inquiry
077804014 x 0,14 mm²0,11 mm3,7 mm5,4 kg/km17 kg/km Send inquiry
077805015 x 0,14 mm²0,11 mm4 mm6,7 kg/km20 kg/km Send inquiry
077807017 x 0,14 mm²0,11 mm4,6 mm9,4 kg/km27 kg/km Send inquiry
0778120112 x 0,14 mm²0,11 mm5,5 mm16,1 kg/km38 kg/km Send inquiry
0778180118 x 0,14 mm²0,11 mm6,3 mm24,2 kg/km54 kg/km Send inquiry
0778250125 x 0,14 mm²0,11 mm7,5 mm33,6 kg/km70 kg/km Send inquiry
077802022 x 0,25 mm²0,11 mm3,5 mm4,8 kg/km15 kg/km Send inquiry
077803023 x 0,25 mm²0,11 mm3,8 mm7,2 kg/km19 kg/km Send inquiry
077804024 x 0,25 mm²0,11 mm4,1 mm9,6 kg/km23 kg/km Send inquiry
077805025 x 0,25 mm²0,11 mm4,4 mm12 kg/km28 kg/km Send inquiry
077807027 x 0,25 mm²0,11 mm5,1 mm16,8 kg/km38 kg/km Send inquiry
0778120212 x 0,25 mm²0,11 mm6,1 mm28,8 kg/km54 kg/km Send inquiry
0778180218 x 0,25 mm²0,11 mm7,1 mm43,2 kg/km78 kg/km Send inquiry
0778250225 x 0,25 mm²0,11 mm8,6 mm60 kg/km106 kg/km Send inquiry
077802032 x 0,34 mm²0,11 mm4,2 mm6,5 kg/km21 kg/km Send inquiry
077803033 x 0,34 mm²0,11 mm4,4 mm9,8 kg/km25 kg/km Send inquiry
077804034 x 0,34 mm²0,11 mm4,8 mm13,1 kg/km31 kg/km Send inquiry
077805035 x 0,34 mm²0,11 mm5,2 mm16,3 kg/km38 kg/km Send inquiry
077807037 x 0,34 mm²0,11 mm6,1 mm22,8 kg/km52 kg/km Send inquiry
0778120312 x 0,34 mm²0,11 mm7,3 mm39,2 kg/km74 kg/km Send inquiry
0778180318 x 0,34 mm²0,11 mm8,8 mm58,8 kg/km112 kg/km Send inquiry
0778250325 x 0,34 mm²0,11 mm10,4 mm81,6 kg/km147 kg/km Send inquiry
item no.
no. of cores x cross section
largest single wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
07780201
2 x 0,14 mm²
0,11 mm
3,3 mm
2,7 kg/km
12 kg/km
07780301
3 x 0,14 mm²
0,11 mm
3,5 mm
4 kg/km
14 kg/km
07780401
4 x 0,14 mm²
0,11 mm
3,7 mm
5,4 kg/km
17 kg/km
07780501
5 x 0,14 mm²
0,11 mm
4 mm
6,7 kg/km
20 kg/km
07780701
7 x 0,14 mm²
0,11 mm
4,6 mm
9,4 kg/km
27 kg/km
07781201
12 x 0,14 mm²
0,11 mm
5,5 mm
16,1 kg/km
38 kg/km
07781801
18 x 0,14 mm²
0,11 mm
6,3 mm
24,2 kg/km
54 kg/km
07782501
25 x 0,14 mm²
0,11 mm
7,5 mm
33,6 kg/km
70 kg/km
07780202
2 x 0,25 mm²
0,11 mm
3,5 mm
4,8 kg/km
15 kg/km
07780302
3 x 0,25 mm²
0,11 mm
3,8 mm
7,2 kg/km
19 kg/km
07780402
4 x 0,25 mm²
0,11 mm
4,1 mm
9,6 kg/km
23 kg/km
07780502
5 x 0,25 mm²
0,11 mm
4,4 mm
12 kg/km
28 kg/km
07780702
7 x 0,25 mm²
0,11 mm
5,1 mm
16,8 kg/km
38 kg/km
07781202
12 x 0,25 mm²
0,11 mm
6,1 mm
28,8 kg/km
54 kg/km
07781802
18 x 0,25 mm²
0,11 mm
7,1 mm
43,2 kg/km
78 kg/km
07782502
25 x 0,25 mm²
0,11 mm
8,6 mm
60 kg/km
106 kg/km
07780203
2 x 0,34 mm²
0,11 mm
4,2 mm
6,5 kg/km
21 kg/km
07780303
3 x 0,34 mm²
0,11 mm
4,4 mm
9,8 kg/km
25 kg/km
07780403
4 x 0,34 mm²
0,11 mm
4,8 mm
13,1 kg/km
31 kg/km
07780503
5 x 0,34 mm²
0,11 mm
5,2 mm
16,3 kg/km
38 kg/km
07780703
7 x 0,34 mm²
0,11 mm
6,1 mm
22,8 kg/km
52 kg/km
07781203
12 x 0,34 mm²
0,11 mm
7,3 mm
39,2 kg/km
74 kg/km
07781803
18 x 0,34 mm²
0,11 mm
8,8 mm
58,8 kg/km
112 kg/km
07782503
25 x 0,34 mm²
0,11 mm
10,4 mm
81,6 kg/km
147 kg/km

Other dimensions and colours are possible on request.
