HV 1-channel thermocouple type K
Application

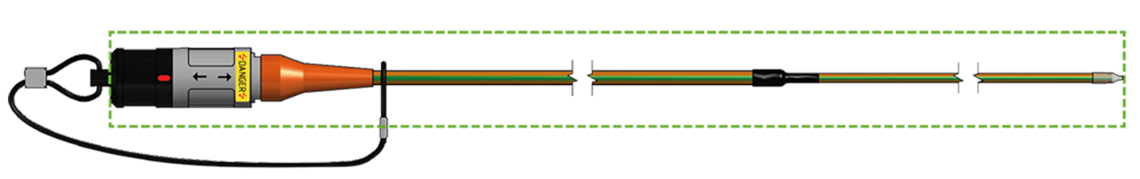

Type K high-voltage thermocouple (1-channel) with HV thermocouple cable type K for safe temperature measurement in high-voltage environments. The measuring point of the type K sensor is available in bare or electrically insulated (1000 V) versions. The Lemo Redel male connector with orange kink protection sleeve and black protective cap, 2-pin, C-coded. 1000 V AC voltage-stable - IP 67 when connected.
Additional information
Issue of HV test certificate with reference to batch number due to optimum traceability.
Optional: Test and repair of already used sensors on request.
SAB identification: item number, batch number
Cable data
| Connection cable | HV thermo cable type K |
|---|---|
| Insulation | FEP – green and white |
| Pair sheath | FEP – orange with green vertical stripes |
| Inner sheath | FEP – blue acc. to RAL 5024 |
| Outer sheath | PUR |
| Sheath colour: | orange with green vertical stripes |
| Stranding | paired construction (for EMC) |
| Outer diameter | approx. 3,4 mm |
| Dielectric strength | 1000 V AC over single channel |
| Temperature range | fixed laying: -50°C / +150°C flexible application: -40°C / +150°C |
HV thermo cable type K
FEP – green and white
FEP – orange with green vertical stripes
FEP – blue acc. to RAL 5024
PUR
orange with green vertical stripes
paired construction (for EMC)
approx. 3,4 mm
1000 V AC over single channel
fixed laying: -50°C / +150°C
flexible application: -40°C / +150°C
Sensor
| Thermocouple | 1 x type K |
|---|---|
| Limit deviation | class 1 |
| Measuring point | bare or electrically insulated (1000 V) |
| Temperature range single channel | -40°C / +180°C |
| Response time | on request |
1 x type K
class 1
bare or electrically insulated (1000 V)
-40°C / +180°C
on request
Connector
| Lemo Redel male connector | with orange kink protection sleeve and black protecting cap, 2-pin, C-coded 1000 V AC voltage-stable – IP 67 when connected |
|---|
with orange kink protection sleeve and black protecting cap, 2-pin, C-coded
1000 V AC voltage-stable – IP 67 when connected
Tests
| Cable test | over pair sheath in water bath – 5000 V AC – 5 min – with reference to EN 50264-2-1 |
|---|---|
| Sensor test | Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE). Control of contact protection towards outside – 3000 V/1 min AC |
over pair sheath in water bath –
5000 V AC – 5 min – with reference to EN 50264-2-1
Routine test of harnessed connector with reference to standard 61010-1 for measuring devices as well as VDE indications in our in-house ball bath (released by VDE).
Control of contact protection towards outside – 3000 V/1 min AC
Configuration examples

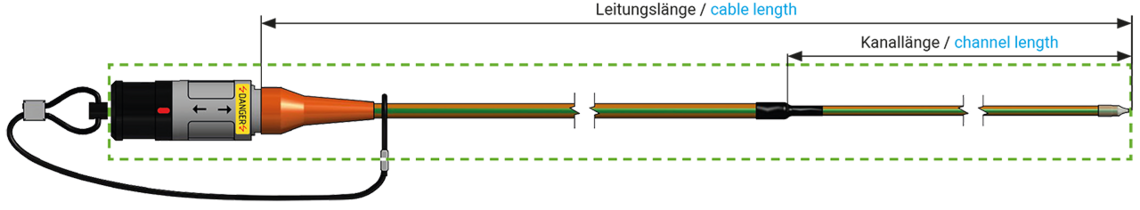

| item no. | Connection cable length | Length channel 1 | Measuring tip | |
|---|---|---|---|---|
| T141-059-052 | 2400 mm | 400 mm | insulated | Send inquiry |
| T141-058-124 | 3000 mm | 400 mm | bare | Send inquiry |
Total cable and channel lengths can be realised on customer’s request.
