SABIX® S 712 C FRNC C1

Continuously flexible halogen-free control cable with improved fire performance and overall copper screen

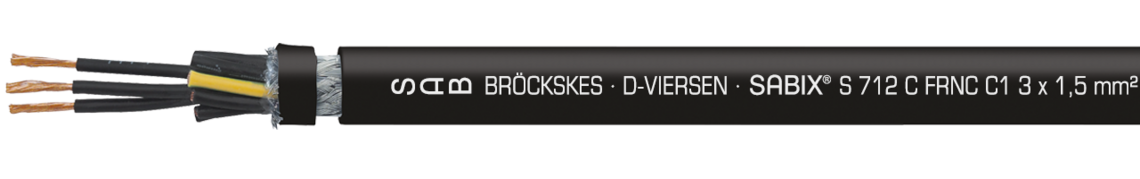

Marking for SABIX® S 712 C FRNC C1 67120315: SAB BRÖCKSKES · D-VIERSEN · SABIX® S 712 C FRNC C1 3 x 1,5 mm² CE

Marking for SABIX® S 712 C FRNC C1 67120315: SAB BRÖCKSKES · D-VIERSEN · SABIX® S 712 C FRNC C1 3 x 1,5 mm² CE

Application

The fire resistant cable is a continuously flexible halogen-free control cable with overall copper screen and improved fire performance. Additionally, it is oil and fuel resistant and does not cause flame propagation. This cable is used as festoon cable for polar cranes in nuclear power plants, in rail technology as sensor cable at the vehicle chassis or as flexible control cable at the train doors, and cable chain applications with moderate mechanical stress.

Outstanding features

  • halogen-free
  • continuously flexible
  • screened, good EMC characteristics
  • no flame propagation
  • flame retardant and self-extinguishing
  • oil and fuel resistant
  • good acid and alkalines resistance
  • NF C 32-070 C1

Additional information

For flexible applications in areas with highest fire protection requirements e.g. power plant technology, railway applications.

Construction

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding optical coverage ≥ 85%

Wrapping

non-woven tape

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Conductor

bare copper strands acc. to IEC 60228, VDE 0295, class 6

Insulation

SABIX®

Colour code

black cores with consecutive numbers acc. to EN 50334 + VDE 0293-334,

green-yellow earth wire from 3 cores

Stranding

in layers

Wrapping

non-woven tape

Screen

tinned copper braiding optical coverage ≥ 85%

Wrapping

non-woven tape

Sheath material

SABIX® Ultra

Sheath colour

black (RAL 9005)

Technical data

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core: 4000 V

core/screen: 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 15 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -40/+90°C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C 32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to NF X 70-100

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Absence of harmful substances

acc. to RoHS directive of the European Union

Nominal voltage

Uo/U 0,6/1 kV

Testing voltage

core/core: 4000 V

core/screen: 4000 V

Min. bending radius

fixed laying: 4 x d

flexible application: 6 x d

continuously flexible: 15 x d

Radiation resistance

1 x 10⁷ cJ/kg (100 kGy)

Temperature range

fixed laying: -40/+90°C

flexible application: -30/+90 °C

Halogen-free

acc. to IEC 60754-1 + VDE 0482-754-1

Fire performance

no flame propagation acc. to IEC 60332-3-24 + VDE 0482-332-3-24 resp. IEC 60332-3-25 +

VDE 0482-332-3-25 cat. C resp. D, see chapter N „Technical Data“

Flame retardant and self-extinguishing acc. to IEC 60332-1-2 + VDE 0482-332-1-2 + NF C 32-070 C1

Corrosiveness of conflagration gases

in compliance with IEC 60754-2 + VDE 0482-754-2 - no development of corrosive conflagration gases

Smoke density

acc. to IEC 61034 + VDE 0482-1034

Toxicity

acc. to NF X 70-100

Oil and fuel resistance

acc. to EN 50264-1 + VDE 0260-264-1

Dimensions

item no. no. of cores x cross section largest single wire-ø outer-ø ± 5% copper figure cable weight ca.
671202052 x 0,50 mm²0,16 mm7,1 mm29,2 kg/km80 kg/km Send inquiry
671205055 x 0,50 mm²0,16 mm8,8 mm49,9 kg/km121 kg/km Send inquiry
671205075 x 0,75 mm²0,16 mm9,6 mm65,4 kg/km147 kg/km Send inquiry
671207077 x 0,75 mm²0,16 mm11,4 mm103,2 kg/km212 kg/km Send inquiry
671205105 x 1,00 mm²0,16 mm9,8 mm77,6 kg/km162 kg/km Send inquiry
671207107 x 1,00 mm²0,16 mm12,2 mm123,6 kg/km250 kg/km Send inquiry
6712121012 x 1,00 mm²0,16 mm14,3 mm184 kg/km337 kg/km Send inquiry
6712181018 x 1,00 mm²0,16 mm17 mm285,9 kg/km491 kg/km Send inquiry
671202152 x 1,50 mm²0,16 mm8,9 mm55,7 kg/km131 kg/km Send inquiry
671203153 x 1,50 mm²0,16 mm9,5 mm72,5 kg/km149 kg/km Send inquiry
671204154 x 1,50 mm²0,16 mm10,5 mm105,7 kg/km192 kg/km Send inquiry
671205155 x 1,50 mm²0,16 mm12 mm127,9 kg/km246 kg/km Send inquiry
6712121512 x 1,50 mm²0,16 mm16,7 mm285 kg/km475 kg/km Send inquiry
6712181518 x 1,50 mm²0,16 mm19,6 mm391,5 kg/km661 kg/km Send inquiry
6712251525 x 1,50 mm²0,16 mm23,1 mm527,6 kg/km865 kg/km Send inquiry
671202252 x 2,50 mm²0,16 mm10,9 mm101 kg/km201 kg/km Send inquiry
671203253 x 2,50 mm²0,16 mm11,5 mm127,7 kg/km227 kg/km Send inquiry
671204254 x 2,50 mm²0,16 mm12,8 mm155,5 kg/km287 kg/km Send inquiry
671205255 x 2,50 mm²0,16 mm14,2 mm188,6 kg/km347 kg/km Send inquiry
6712122512 x 2,50 mm²0,16 mm20,2 mm431,5 kg/km696 kg/km Send inquiry
671204404 x 4,00 mm²0,16 mm14,2 mm222,2 kg/km374 kg/km Send inquiry
671205405 x 4,00 mm²0,16 mm16,1 mm302,5 kg/km481 kg/km Send inquiry
671207407 x 4,00 mm²0,16 mm18,9 mm395,6 kg/km652 kg/km Send inquiry
671202602 x 6,00 mm²0,21 mm14 mm183,4 kg/km340 kg/km Send inquiry
671204604 x 6,00 mm²0,21 mm16,6 mm339,6 kg/km513 kg/km Send inquiry
671204624 x 16,0 mm²0,21 mm23,1 mm775,6 kg/km1131 kg/km Send inquiry
671204634 x 25,0 mm²0,21 mm27,2 mm1127 kg/km1615 kg/km Send inquiry
671204644 x 35,0 mm²0,21 mm30,9 mm1541,2 kg/km2171 kg/km Send inquiry
item no.
no. of cores x cross section
largest single wire-ø
outer-ø ± 5%
copper figure
cable weight ca.
67120205
2 x 0,50 mm²
0,16 mm
7,1 mm
29,2 kg/km
80 kg/km
67120505
5 x 0,50 mm²
0,16 mm
8,8 mm
49,9 kg/km
121 kg/km
67120507
5 x 0,75 mm²
0,16 mm
9,6 mm
65,4 kg/km
147 kg/km
67120707
7 x 0,75 mm²
0,16 mm
11,4 mm
103,2 kg/km
212 kg/km
67120510
5 x 1,00 mm²
0,16 mm
9,8 mm
77,6 kg/km
162 kg/km
67120710
7 x 1,00 mm²
0,16 mm
12,2 mm
123,6 kg/km
250 kg/km
67121210
12 x 1,00 mm²
0,16 mm
14,3 mm
184 kg/km
337 kg/km
67121810
18 x 1,00 mm²
0,16 mm
17 mm
285,9 kg/km
491 kg/km
67120215
2 x 1,50 mm²
0,16 mm
8,9 mm
55,7 kg/km
131 kg/km
67120315
3 x 1,50 mm²
0,16 mm
9,5 mm
72,5 kg/km
149 kg/km
67120415
4 x 1,50 mm²
0,16 mm
10,5 mm
105,7 kg/km
192 kg/km
67120515
5 x 1,50 mm²
0,16 mm
12 mm
127,9 kg/km
246 kg/km
67121215
12 x 1,50 mm²
0,16 mm
16,7 mm
285 kg/km
475 kg/km
67121815
18 x 1,50 mm²
0,16 mm
19,6 mm
391,5 kg/km
661 kg/km
67122515
25 x 1,50 mm²
0,16 mm
23,1 mm
527,6 kg/km
865 kg/km
67120225
2 x 2,50 mm²
0,16 mm
10,9 mm
101 kg/km
201 kg/km
67120325
3 x 2,50 mm²
0,16 mm
11,5 mm
127,7 kg/km
227 kg/km
67120425
4 x 2,50 mm²
0,16 mm
12,8 mm
155,5 kg/km
287 kg/km
67120525
5 x 2,50 mm²
0,16 mm
14,2 mm
188,6 kg/km
347 kg/km
67121225
12 x 2,50 mm²
0,16 mm
20,2 mm
431,5 kg/km
696 kg/km
67120440
4 x 4,00 mm²
0,16 mm
14,2 mm
222,2 kg/km
374 kg/km
67120540
5 x 4,00 mm²
0,16 mm
16,1 mm
302,5 kg/km
481 kg/km
67120740
7 x 4,00 mm²
0,16 mm
18,9 mm
395,6 kg/km
652 kg/km
67120260
2 x 6,00 mm²
0,21 mm
14 mm
183,4 kg/km
340 kg/km
67120460
4 x 6,00 mm²
0,21 mm
16,6 mm
339,6 kg/km
513 kg/km
67120462
4 x 16,0 mm²
0,21 mm
23,1 mm
775,6 kg/km
1131 kg/km
67120463
4 x 25,0 mm²
0,21 mm
27,2 mm
1127 kg/km
1615 kg/km
67120464
4 x 35,0 mm²
0,21 mm
30,9 mm
1541,2 kg/km
2171 kg/km

Other dimensions and colours are possible on request.
